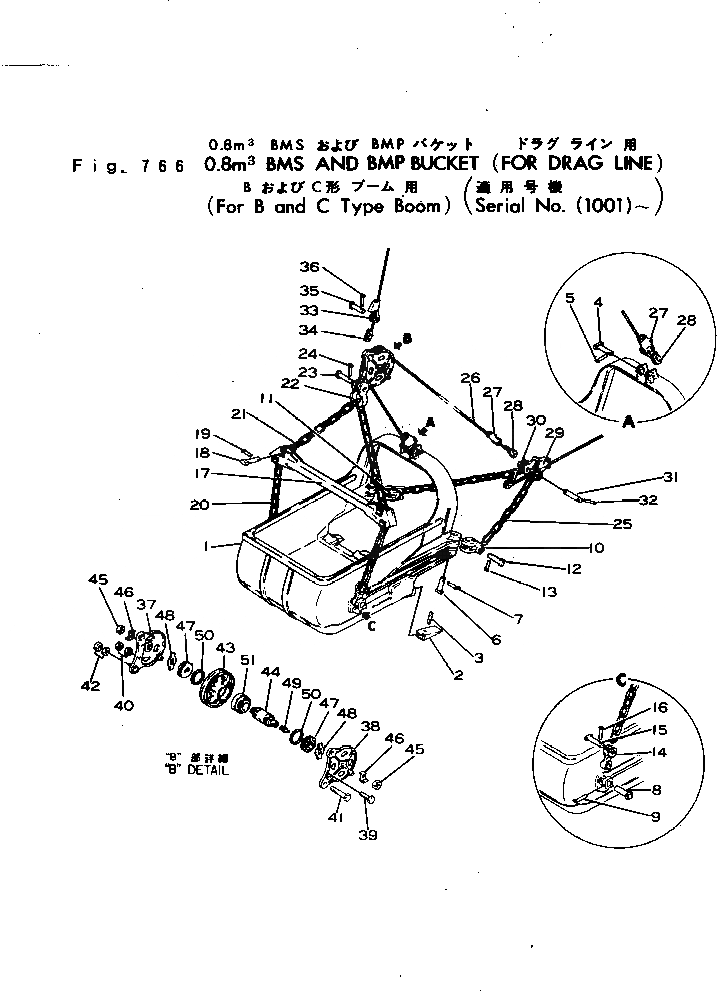

Запчасти Komatsu 22-BCM-1 .8M BMS И BMP КОВШ (ДЛЯ D/L)(ДЛЯ B И C ТИП СТРЕЛА) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580266-00

BUCKET AND CHAIN A.,(BMS) (OP)

|1

22-580267-00

BUCKET AND CHAIN A.,(BMP) (OP)

1

21-801723-42

BODY,SOLID BUCKET¤ (BMS)

|1

21-801724-42

BODY,PERFORATE BUCKET¤ (BMP)

2

21-700168-02

TOOTH

3

21-500592-02

WEDGE,TOOTH

4

22-401412-01

PIN

5

22-590072-01

T-BOLT (KIT)

6

21-501250-03

PIN

7

22-590018-01

T-BOLT (KIT)

8

21-501033-01

PIN

9

22-590017-01

T-BOLT (KIT)

10

21-700432-04

EXTENTION,BUCKET¤ L.H.

11

21-700433-04

EXTENTION,BUCKET¤ R.H.

12

21-517667-01

PIN

13

22-590018-01

T-BOLT (KIT)

14

21-613702-01

LINK

15

22-400174-01

PIN

16

22-590072-01

T-BOLT (KIT)

17

22-540152-21

SPREADER,HOIST CHAIN

18

22-401590-01

PIN,SPREADER

19

22-590072-01

T-BOLT (KIT)

20

22-450457-21

CHAIN,BUCKET TO SPREADER

21

22-450458-21

CHAIN,SPREADER TO DUMP SHEAVE

22

21-711766-01

SHACKLE,DUMP SHEAVE

23

21-513709-01

PIN

24

22-590072-01

T-BOLT (KIT)

25

22-450459-21

CHAIN,DRAG

26

22-401421-01

ROPE,WIRE

|26

04059-01050

WIRE

27

21-700864-02

SOCKET

28

21-517560-01

WEDGE,DUMP ROPE SOCKET

29

21-800347-02

SOCKET,DRAG ROPE

30

21-500574-01

WEDGE,DRAG ROPE SOCKET

31

21-501039-03

PIN

32

22-590089-01

T-BOLT (KIT)

33

21-526800-01

SOCKET,HOIST ROPE

34

21-526460-01

WEDGE

35

21-501551-03

PIN

36

22-590072-01

T-BOLT (KIT)

|37

21-700845-41

BLOCK ASS'Y,DUMP SHEAVE

37

21-700841-21

BLOCK,L.H.

38

21-700840-21

BLOCK,R.H.

39

02010-01070

BOLT

40

02205-01015

NUT

41

22-401414-01

BOLT

42

02205-01219

NUT

43

21-600396-01

SHEAVE

44

21-600215-01

PIN

45

02206-02421

NUT

46

21-500579-01

PLATE

47

21-500587-01

RETAINER

48

21-500577-01

LOCK

49

00570-43760

FITTING

50

22-401423-01

SEAL

51

22-590371-01

BEARING,ROLLER
