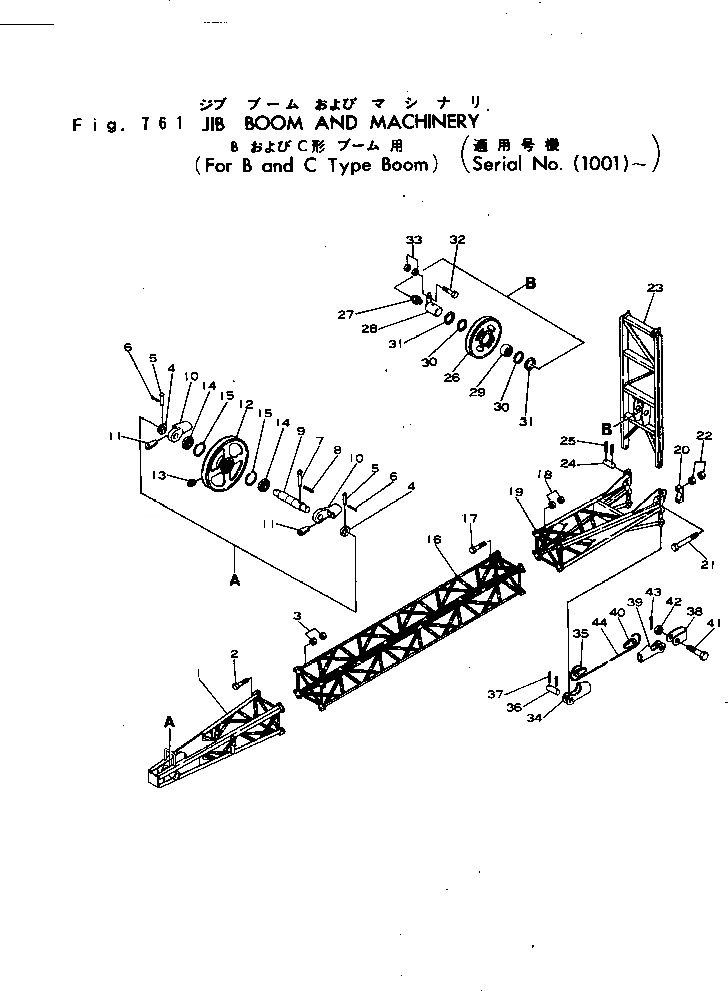

Запчасти Komatsu 22-BCM-1 ГУСЁК СТРЕЛА И MACHINERY (ДЛЯ B И C ТИП СТРЕЛА) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580195-00

BOOM MACHINERY ASS'Y,JIB (OP)

|1

22-580196-00

UPPER BOOM ASS'Y,JIB

1

21-805215-21

SECTION,UPPER BOOM¤ 1.52M

2

02030-01051

BOLT

3

02215-01014

NUT

4

21-291353-01

COLLAR

5

21-520871-01

T-BOLT

6

04050-03020

PIN

7

21-520872-01

T-BOLT

8

04050-03020

PIN

9

21-609967-01

PIN

10

21-526520-01

SOCKET,JIB BOOM POINT

11

21-526460-01

WEDGE

12

21-711201-01

SHEAVE,JIB BOOM POINT

13

00570-45010

FITTING

14

22-590176-01

BEARING,BALL

15

22-590226-01

RING

|16

22-580197-01

BOOM SECTION ASS'Y,INTERMEDIATE 3.05M

16

21-230288-21

SECTION,BOOM

17

02030-01051

BOLT

18

02215-01014

NUT

|19

22-580198-00

BOOM SECTION ASS'Y,LOWER

19

21-218732-21

SECTION,LOWER

20

21-501274-01

SQUARE,JIB BOOM FOOT

21

22-590214-01

BOLT

22

02215-01216

NUT

|23

22-580199-00

JIB MAST ASS'Y

23

21-234376-21

MAST,JIB

24

21-199909-01

PIN

25

04050-06045

PIN

26

21-609963-01

SHEAVE,JIB MAST SHEAVE

27

00570-43760

FITTING

28

21-609965-21

PIN

29

22-400238-01

BEARING,NEEDLE

30

21-514448-01

WASHER

31

21-514449-01

SPACER

32

02030-00632

BOLT

33

02215-00608

NUT

34

21-526799-01

SOCKET,GUY ROPE

35

21-526460-01

WEDGE

36

21-526175-01

PIN

37

04050-08050

PIN

38

22-402225-01

SHAKLE

39

22-402229-01

SOCKET,GUY ROPE

40

21-526460-01

WEDGE

41

22-402226-01

BOLT,SHACKLE

42

02206-02018

NUT

43

04050-04045

PIN

44

22-402245-01

ROPE,WIRE

|44

WIRE
