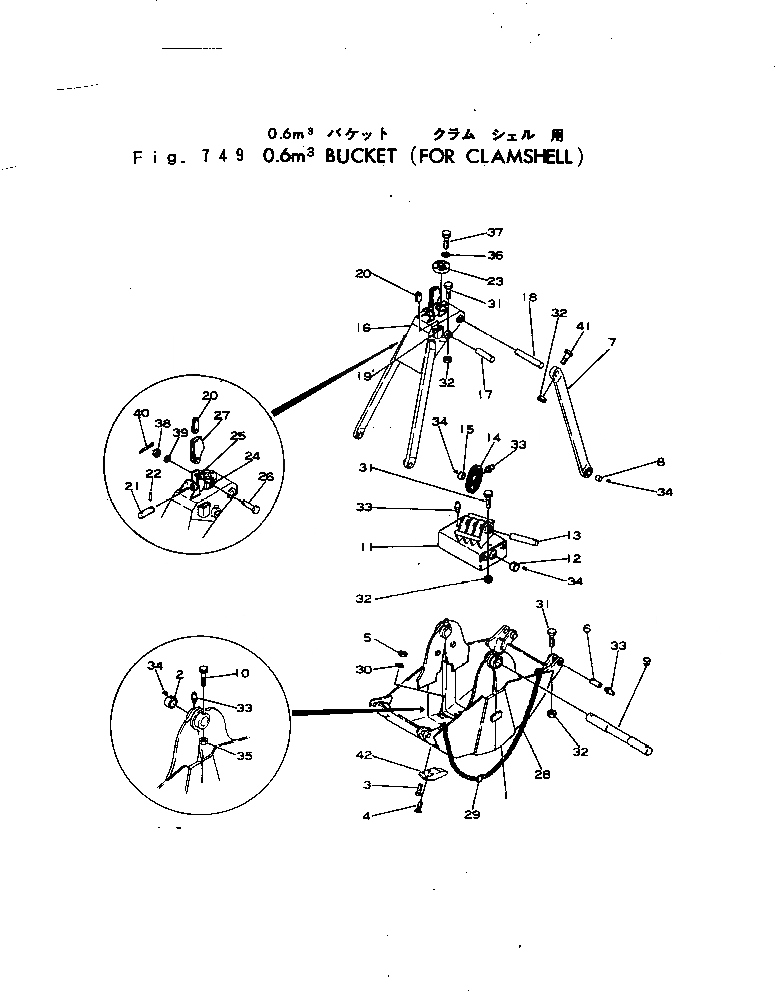

Запчасти Komatsu 22-BCM-1 .M КОВШ (ДЛЯ ГРЕЙФЕРН.) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580253-00

BUCKET ASS'Y

|1

22-580252-00

BUCKET ASS'Y

|1

22-580381-00

BODY ASS'Y

|1

22-580380-00

BODY ASS'Y

1

BODY,BUCKET

|1

22-595547-21

BODY,BUCKET

2

22-595556-01

BUSHING

3

02090-01285

BOLT

4

02091-01200

BOLT

5

02290-01219

NUT

6

22-595552-01

AXLE,BUCKET TO ROD

|7

22-580382-00

ROD ASS'Y

7

ROD

8

22-595554-01

BUSHING

9

22-595580-01

AXLE,BODY

|9

22-595555-01

AXLE,BODY

10

22-595557-01

BOLT,AXLE

|11

22-580384-00

FRAME ASS'Y

|11

22-580383-00

FRAME ASS'Y

11

FRAME,SHEAVE

|11

FRAME,SHEAVE

12

22-595556-01

BUSHING

13

22-595560-01

AXLE,SHEAVE

|14

22-580254-00

SHEAVE ASS'Y

14

SHEAVE,LOWER

15

22-595562-01

BUSHING

16

22-595582-21

FRAME,UPPER SHEAVE

|16

22-595563-21

FRAME,UPPER SHEAVE

17

22-595564-01

AXLE,UPPER SHEAVE

18

22-595565-01

AXLE,ROD

19

22-595566-01

END,ROPE

20

22-595567-01

WEDGE

21

22-595568-01

PIN

22

22-595569-01

PIN

23

22-595570-01

GUIDE,CLOSING ROPE

24

22-595571-01

BRACKET

25

22-595572-01

HANGER

26

22-595573-01

PIN

27

22-595574-01

SOCKET,HOLDING ROPE

28

22-595576-01

CHAIN,BUCKET TO TAG ROPE

29

22-595578-01

SHACKLE,CHAIN

30

01602-01957

WASHER

31

01001-31600

BOLT

32

01500-31613

NUT

33

22-595654-01

FITTING

34

22-595647-01

SCREW

35

01500-32218

NUT

36

01602-01338

WASHER

37

01900-00450

BOLT

38

01970-01020

NUT

39

01640-02540

WASHER

40

04050-05055

PIN

41

01001-31620

BOLT

42

22-451328-01

TOOTH

|42

22-595548-01

TOOTH
