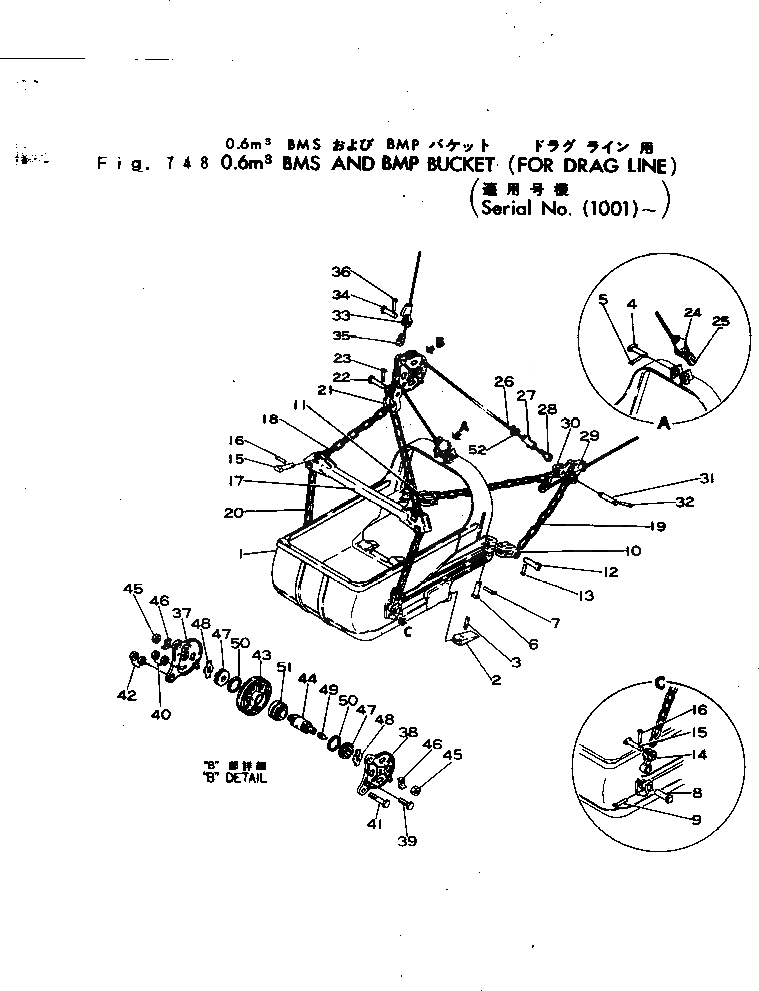

Запчасти Komatsu 22-BCM-1 .M BMS И BMP КОВШ (ДЛЯ DRAG ЛИНИЯ) РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
|1
22-580249-00
BUCKET AND CHAIN A.,(BMS)
|1
22-580248-00
BUCKET AND CHAIN A.,(BMS)
|1
22-580251-00
BUCKET AND CHAIN A.,(BMP)
|1
22-580250-00
BUCKET AND CHAIN A.,(BMP)
1
21-800479-42
BODY,SOLID BUCKET¤ (BMS)
|1
21-801302-42
BODY,PERFORATE BUCKET¤ (BMP)
2
21-700562-02
POINT,ROCK TOOTH
|2
21-700561-02
TOOTH,STANDARD TOOTH
3
21-504744-03
WEDGE,POINT
4
22-400113-01
PIN
5
22-590104-01
T-BOLT (KIT)
6
21-501250-03
PIN
7
22-590018-01
T-BOLT
8
21-501033-03
PIN
9
22-590017-01
T-BOLT (KIT)
10
21-700432-04
EXTENTION,BUCKET¤ L.H.
11
21-700433-04
EXTENTION,BUCKET¤ R.H.
12
21-517667-01
PIN
13
22-590018-01
T-BOLT
14
21-613702-01
LINK
15
22-400174-01
PIN
16
22-590072-01
T-BOLT (KIT)
17
22-540147-21
SPREADER,WELDING STRUCTURE
|17
21-712625-01
SPREADER,CASTING STRUCTURE
18
22-450068-21
CHAIN,SPREADER TO DUMP SHEAVE
19
22-450069-21
CHAIN,BUCKET TO DRAG ROPE
20
22-450070-21
CHAIN,BUCKET TO SPREADER
21
21-600366-03
SHACKLE,DUMP SHEAVE
22
21-501046-03
PIN
23
22-590018-01
T-BOLT (KIT)
24
21-700427-02
SOCKET
25
21-501034-01
WEDGE
26
22-401173-01
ROPE,WIRE¤ DUMP
|26
WIRE
27
21-700428-02
SOCKET
28
21-501034-01
WEDGE
29
21-800347-02
SOCKET,DRAG ROPE
30
21-500574-01
WEDGE
31
21-501039-03
PIN
32
22-590089-01
T-BOLT (KIT)
33
21-700461-02
SOCKET
34
21-501046-03
PIN
35
21-501074-01
WEDGE
36
22-590018-01
T-BOLT
|37
22-580259-51
BLOCK ASS'Y,DUMP
|37
22-580259-00
BLOCK ASS'Y,DUMP
37
21-700445-21
BLOCK,SIDE¤ L.H.
38
21-700444-21
BLOCK,SIDE¤ R.H.
39
02010-20844
BOLT
|39
02010-00851
BOLT
40
01602-01338
WASHER
41
02205-00812
NUT
42
02011-20814
BOLT
|42
02011-00821
BOLT
43
02205-00812
NUT
|43
02205-00812
NUT
44
21-600365-01
SHEAVE
45
21-501036-01
PIN
46
02206-02018
NUT
47
21-501038-01
PLATE
48
21-501045-01
RETAINER
49
21-501044-02
WASHER
50
00570-43760
FITTING
51
22-590148-01
BEARING,ROLLER
52
22-400735-02
CLIP ASS'Y
Выбрано товаров: 65
