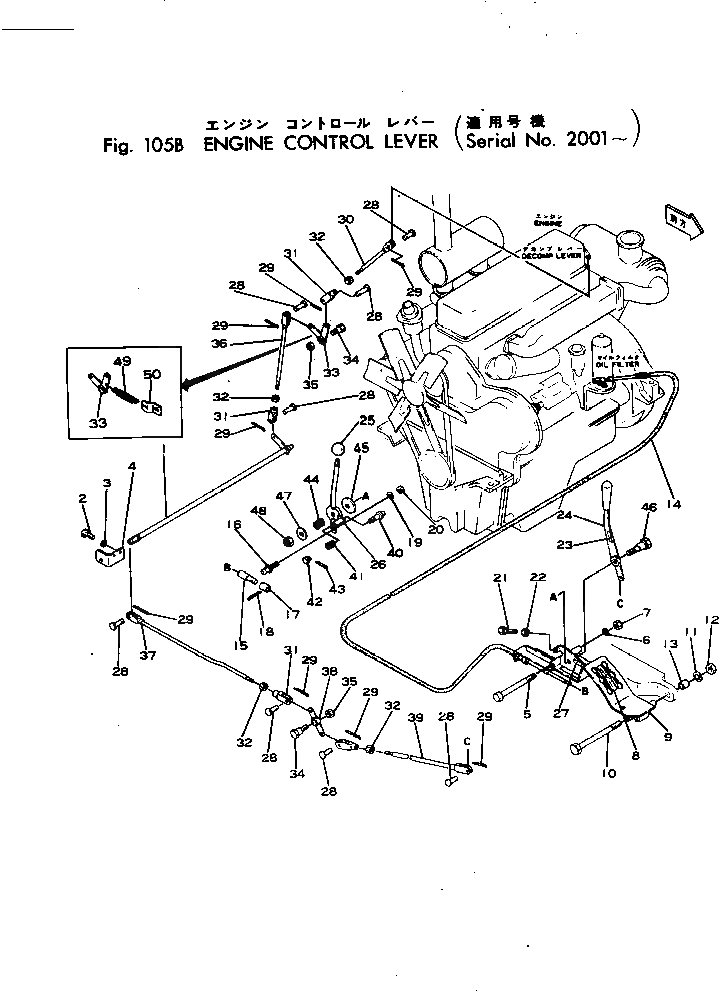

Запчасти Komatsu 22-BCM-1 УПРАВЛ-Е ДВИГАТЕЛЕМ РЫЧАГ(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И POWER TRANSMITTING СИСТЕМА

1

22-451037-21

SHAFT

2

02010-20619

BOLT

3

01602-00929

WASHER

4

22-402788-01

PLATE

5

22-590131-01

BOLT

6

01602-01957

WASHER

7

02205-11219

NUT

8

22-403001-01

PLATE¤ NAME,SWING AND DIGGING LOCK

|8

22-402276-01

PLATE¤ NAME,SWING AND DIGGING LOCK

9

21-710085-21

QUARDRANT,CONTROL LEVER

10

22-590130-01

BOLT

11

01601-01948

WASHER

12

02205-01219

NUT

13

22-400142-01

SPACER

14

22-451035-01

CONTROL,ENGINE

|15

22-580316-00

JOINT ASS'Y,CONTROL END

15

22-400202-01

JOINT

16

22-400203-01

STUD

17

22-400204-01

RING

18

04050-03018

PIN

19

01602-00720

WASHER

20

02215-00406

NUT

21

22-401089-01

BOLT

22

02205-00609

NUT

23

22-400706-01

PLATE¤ NAME,COMPRESSION RELEASE

24

22-450272-21

LEVER,COMPRESSION RELEASE

25

21-507402-01

KNOB

26

22-450268-21

ARM,THROTTLE CONTROL

27

22-400376-01

PLATE¤ NAME,GOVERNOR CONTROL

28

04205-00822

PIN

29

04050-02012

PIN

30

22-402739-21

ROD

31

04211-00844

YOKE

32

01501-00805

NUT

33

22-451014-21

BELLCRANK

34

22-401005-01

PIN

35

00027-87800

NUT

36

22-402789-21

ROD

37

22-402790-21

ROD

38

22-451007-21

BELLCRANK

39

22-451036-21

ROD

40

120-43-15140

PIN,STOPPER

41

120-43-15150

SPRING

42

120-43-15160

KNOB

43

04050-01215

PIN

44

21-507403-01

SPRING

45

21-511446-01

DISC,WOVEN

46

22-401004-01

PIN

47

00039-51600

WASHER

48

00027-87800

NUT

49

21-509904-01

SPRING

50

22-403083-01

PLATE
