Запчасти Komatsu 22-BCM-1 ЭЛЕКТРИКА¤ MICRO ПЕРЕКЛЮЧАТЕЛЬ И КОРПУС (/) РАБОЧЕЕ ОБОРУДОВАНИЕ

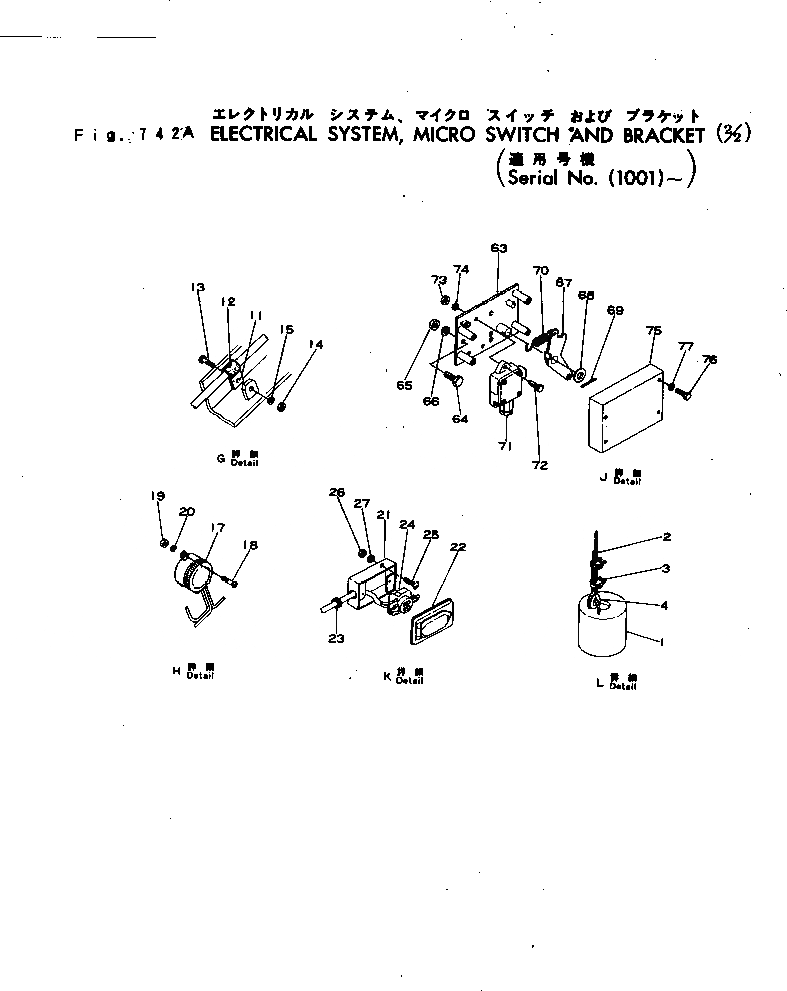

Схема запчастей Komatsu 22-BCM-1 - ЭЛЕКТРИКА¤ MICRO ПЕРЕКЛЮЧАТЕЛЬ И КОРПУС (/) РАБОЧЕЕ ОБОРУДОВАНИЕ

Артикул

Название

Примечание

Количество

|1

22-580212-00

ELECTRICAL SYSTEM A.,FOR C TYPE BOOM

|1

22-580211-00

ELECTRICAL SYSTEM A.,FOR B TYPE BOOM

|1

22-580210-00

ELECTRICAL SYSTEM A.,FOR A TYPE BOOM

|1

22-580223-00

MICRO SWITCH ASS'Y,FOR B AND C TYPE BOOM

|1

22-580222-00

MICRO SWITCH ASS'Y,FOR A TYPE BOOM

|1

22-580213-00

WEIGHT ASS'Y

1

22-400426-21

WEIGHT

2

22-400528-01

ROPE

3

22-401275-01

CLIP ASS'Y

4

22-401628-01

THIMBLE

|5

22-580216-00

CABLE ASS'Y,FOR C TYPE BOOM

|5

22-580215-00

BOOM CABTIRE ASS'Y,FOR B TYPE BOOM

|5

22-580214-00

BOOM CABTIRE ASS'Y,FOR A TYPE BOOM

5

22-400529-01

CABLE,FOR A TYPE BOOM

6

22-400847-01

CABLE,FOR B TYPE BOOM

7

22-400848-01

CABLE,FOR B AND C TYPE BOOM

8

22-400849-01

CABLE,FOR B TYPE BOOM

9

22-400533-01

CABLE,FOR C TYPE BOOM

10

22-402729-01

CABLE,FOR C TYPE BOOM

11

170-06-14230

CLIP,FOR C TYPE BOOM

|11

170-06-14230

CLIP,FOR B TYPE BOOM

|11

170-06-14230

CLIP,FOR A TYPE BOOM

12

22-400664-01

TUBE,FOR C TYPE BOOM

|12

22-400664-01

TUBE,FOR B TYPE BOOM

|12

22-400664-01

TUBE,FOR A TYPE BOOM

13

02010-00622

BOLT,FOR C TYPE BOOM

|13

02010-00622

BOLT,FOR B TYPE BOOM

|13

02010-00622

BOLT,FOR A TYPE BOOM

14

02205-00609

NUT,FOR C TYPE BOOM

|14

02205-00609

NUT,FOR B TYPE BOOM

|14

02205-00609

NUT,FOR A TYPE BOOM

15

01601-00924

WASHER,FOR C TYPE BOOM

|15

01601-00924

WASHER,FOR B TYPE BOOM

|15

01601-00924

WASHER,FOR A TYPE BOOM

16

22-403108-01

CAP

|16

22-400450-01

CAP

17

22-400765-01

BOX,FOR B AND C TYPE BOOM

18

01212-30430

SCREW,FOR B AND C TYPE BOOM

19

01500-60404

NUT,FOR B AND C TYPE BOOM

20

01601-00410

WASHER,FOR B AND C TYPE BOOM

|21

22-580379-00

CONSENT BOX ASS'Y,FOR B AND C TYPE BOOM

21

22-450195-21

BOX

22

22-400757-01

COVER

23

22-400758-01

BUSHING

24

22-400527-01

CONSENT

25

00037-25120

SCREW

26

02215-00608

NUT

27

01601-00924

WASHER

|28

22-580219-00

BOOM CABTIRE ASS'Y,FOR C TYPE BOOM

|28

22-580218-00

BOOM CABTIRE ASS'Y,FOR B TYPE BOOM

|28

22-580217-00

BOOM CABTIRE ASS'Y,FOR A TYPE BOOM

28

22-400530-01

CABLE,FOR A TYPE BOOM

29

22-400850-01

CABLE,FOR B AND C TYPE BOOM

30

170-06-14230

CLIP,FOR B AND C TYPE BOOM

|30

170-06-14230

CLIP,FOR A TYPE BOOM

31

22-400664-01

TUBE,FOR C TYPE BOOM

|31

22-400664-01

TUBE,FOR B TYPE BOOM

32

02010-00622

BOLT,FOR C TYPE BOOM

|32

02010-00622

BOLT,FOR A AND B TYPE BOOM

33

02205-00609

NUT,FOR C TYPE BOOM

|33

02205-00609

NUT,FOR A AND B TYPE BOOM

34

01601-00924

WASHER,FOR C TYPE BOOM

|34

01601-00924

WASHER,FOR A AND B TYPE BOOM

35

22-403107-01

CONSENT

|35

22-400449-01

CONSENT

36

22-400526-01

CAP

|37

22-580221-00

CONSENT ASS'Y,FOR B TYPE BOOM

|37

22-580220-00

CONSENT ASS'Y,FOR A TYPE BOOM

37

22-500088-21

BRACKET,FOR A TYPE BOOM

38

22-450294-01

BRACKET,FOR B TYPE BOOM

39

00037-25120

SCREW,FOR A TYPE BOOM

40

01602-00929

WASHER,FOR A TYPE BOOM

41

02215-10608

NUT,FOR A TYPE BOOM

42

00037-25120

SCREW,FOR A TYPE BOOM

43

02215-10608

NUT,FOR A TYPE BOOM

44

01602-00929

WASHER,FOR A TYPE BOOM

45

22-400527-01

CONSENT,FOR B TYPE BOOM

46

02010-20413

BOLT,FOR B TYPE BOOM

47

01500-30404

NUT,FOR B TYPE BOOM

48

01601-00410

WASHER,FOR B TYPE BOOM

49

22-400535-01

SPACER,FOR B TYPE BOOM

50

22-400531-01

CABLE

51

08031-00205

TERMINAL

52

22-400331-01

CABLE

|53

22-580224-00

CABTIRE ASS'Y,FOR 1.5M BOOM

|53

22-580225-00

CABTIRE ASS'Y,FOR 3M BOOM

|53

22-580226-00

CABTIRE ASS'Y,FOR 6M BOOM

53

22-400532-01

CABLE,FOR 1.5M BOOM

54

22-400533-01

CABLE,FOR 3M BOOM

55

22-400534-01

CABLE,FOR 6M BOOM

56

22-403107-01

CONSENT

|56

22-400449-01

CONSENT

57

22-403108-01

CAP

|57

22-400450-01

CAP

58

170-06-14230

CLIP,FOR 1.5M BOOM

|58

170-06-14230

CLIP,FOR 3M BOOM

|58

170-06-14230

CLIP,FOR 6M BOOM

59

22-400664-01

TUBE,FOR 1.5M BOOM

|59

22-400664-01

TUBE,FOR 3M BOOM

|59

22-400664-01

TUBE,FOR 6M BOOM

60

02010-20622

BOLT,FOR 1.5M BOOM

|60

02010-20622

BOLT,FOR 3M BOOM

|60

02010-20622

BOLT,FOR 6M BOOM

61

01602-00929

WASHER,FOR 1.5M BOOM

|61

01602-00929

WASHER,FOR 3M BOOM

|61

01602-00929

WASHER,FOR 6M BOOM

62

02205-10609

NUT,FOR 1.5M BOOM

|62

02205-10609

NUT,FOR 3M BOOM

|62

02205-10609

NUT,FOR 6M BOOM

|63

22-580223-00

MICRO SWITCH ASS'Y,FOR B AND C TYPE BOOM

|63

22-580222-00

MICRO SWITCH ASS'Y,FOR A TYPE BOOM

63

22-500082-22

BRACKET,FOR B AND C TYPE BOOM

|63

22-500082-21

BRACKET,FOR A TYPE BOOM

64

02030-20622

BOLT

65

02215-10608

NUT

66

01601-00924

WASHER

67

22-450118-21

LEVER

68

01640-01629

WASHER

69

04050-04030

PIN

70

22-400424-01

SPRING

71

22-400425-01

SWITCH

72

01000-00630

BOLT

73

01500-60605

NUT

74

01601-00615

WASHER

75

22-500272-21

CAP

76

02030-00413

BOLT

77

01601-00716

WASHER

Выбрано товаров: 127
