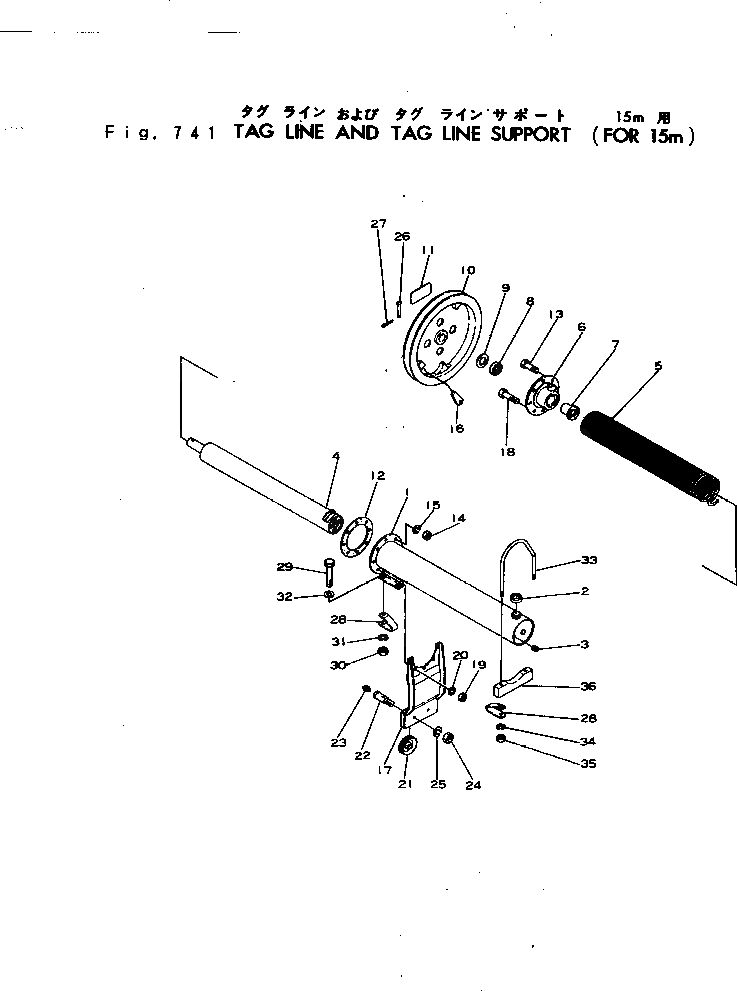

Запчасти Komatsu 22-BCM-1 TAG ЛИНИЯ И TAG ЛИНИЯ СУППОРТ (ДЛЯ M) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580375-00

TAG LINE SUPPORT A.

|1

22-580374-00

TAG LINE ASS'Y

|1

22-580201-00

TAG LINE ASS'Y,15MM

|1

22-580200-00

TAG LINE ASS'Y,15MM

1

22-500193-21

TUBE,OUTER

2

00200-97550

CAP

3

22-590110-01

PLUG,OIL LEVEL

4

22-500194-21

TUBE,INNER

5

22-450316-01

SPRING,TAG LINE

|6

22-580202-00

BEARING ASS'Y

6

22-450315-21

BEARING,INNER TUBE

7

22-401184-01

BUSHING

8

07012-00060

SEAL (KIT)

9

22-401186-01

WASHER

|10

22-580377-00

DRUM ASS'Y

10

22-540149-21

DRUM,TAG ROPE

11

22-401396-01

PLATE¤ NAME

12

22-401187-01

GASKET (KIT)

13

02010-21057

BOLT

14

02205-11015

NUT

15

01601-01640

WASHER

16

21-526456-01

WEDGE

17

22-500234-21

BRACKET

18

02010-21064

BOLT

19

02205-11015

NUT

20

01601-01640

WASHER

21

21-287058-09

SHEAVE,TAG ROPE GUIDE

|21

21-287058-02

SHEAVE,TAG ROPE GUIDE

22

22-401397-01

PIN

23

00570-43760

FITTING

24

02205-11015

NUT

25

01601-01640

WASHER

26

22-401183-01

PIN

27

04050-03022

PIN

|28

22-580204-00

SUPPORT ASS'Y

|28

22-580203-00

SUPPORT ASS'Y

28

22-400540-01

BRACKET

29

02011-01014

BOLT

30

02205-01015

NUT

31

01601-01640

WASHER

32

01640-01626

WASHER

33

22-401098-01

U-BOLT

|33

22-400542-01

U-BOLT

34

01601-01640

WASHER

35

02205-01015

NUT

36

22-400543-01

SUPPORT
