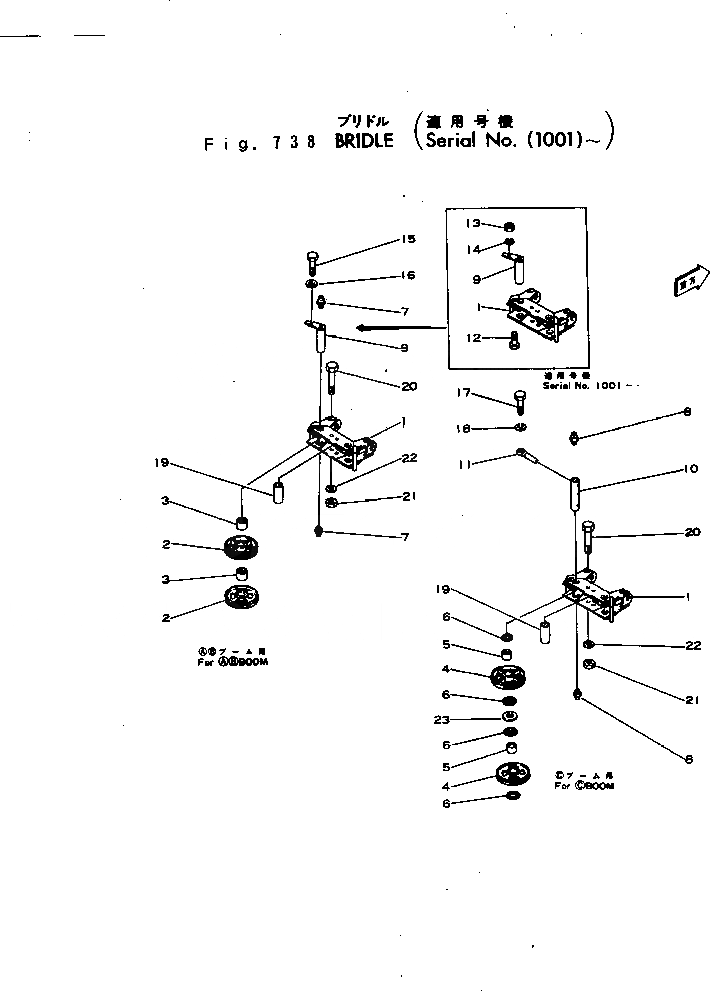

Запчасти Komatsu 22-BCM-1 BRIDLE РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580192-00

BRIDLE ASS'Y,FOR A AND B TYPE BOOM

|1

22-580191-00

BRIDLE ASS'Y,FOR A AND B TYPE BOOM

1

21-710298-21

BRIDLE

|2

22-580194-00

SHEAVE ASS'Y

2

SHEAVE

3

21-500845-01

BUSHING

7

00570-45010

FITTING

9

21-290932-21

PIN

12

02030-20851

BOLT

13

02215-10811

NUT

14

01602-01338

WASHER

15

02030-20832

BOLT

16

01602-01338

WASHER

19

21-529711-01

SPACER

20

22-590124-01

BOLT

21

02215-01216

NUT

22

01602-01957

WASHER

|1

22-580193-00

BRIDLE ASS'Y,FOR C TYPE BOOM

1

21-710298-21

BRIDLE

4

22-450984-01

SHEAVE

5

22-402693-01

BEARING

6

22-402694-01

SEAL

8

00570-43760

FITTING

10

22-402710-01

PIN

11

22-402723-21

END

17

02030-20857

BOLT

18

01602-01338

WASHER

19

21-529711-01

SPACER

20

22-590124-01

BOLT

21

02215-01216

NUT

22

01602-01957

WASHER

23

22-402724-01

SPACER
