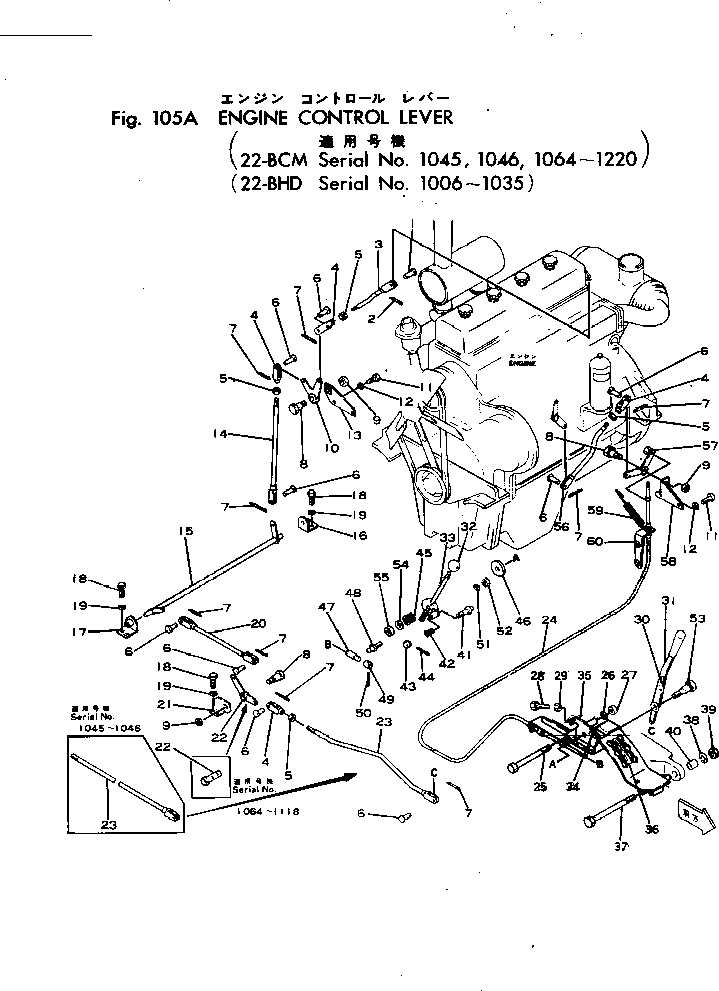

Запчасти Komatsu 22-BCM-1 УПРАВЛ-Е ДВИГАТЕЛЕМ РЫЧАГ(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И POWER TRANSMITTING СИСТЕМА
№
Артикул
Название
Примечание
Количество
1
04205-01026
PIN
|1
04205-01026
PIN
2
04050-03015
PIN
|2
04050-03015
PIN
3
22-401011-21
ROD
|3
22-401011-21
ROD
4
04211-00844
YOKE
|4
04211-00844
YOKE
5
01500-00807
NUT
|5
01500-00807
NUT
6
04205-00822
PIN
|6
04205-00822
PIN
7
04050-02012
PIN
|7
04050-02012
PIN
8
22-401005-01
PIN
|8
22-401005-01
PIN
9
00027-87800
NUT
|9
00027-87800
NUT
10
22-450277-21
LEVER,COMPRESSION RELEASE
|10
22-450277-21
LEVER,COMPRESSION RELEASE
11
01040-01225
BOLT
|11
01040-01225
BOLT
12
01601-01230
WASHER
|12
01601-01230
WASHER
13
22-450276-21
BRACKET
|13
22-450276-21
BRACKET
14
22-401010-21
ROD
|14
22-401010-21
ROD
15
22-450368-21
SHAFT
|15
22-450275-21
SHAFT
|15
22-450275-21
SHAFT
16
22-401009-21
BRACKET
|16
22-401009-21
BRACKET
17
22-401203-21
BRACKET
|17
22-401203-21
BRACKET
18
02010-00622
BOLT
|18
02010-00622
BOLT
19
01601-00924
WASHER
|19
01601-00924
WASHER
20
22-401008-21
ROD
|20
22-401008-21
ROD
21
22-401007-21
BRACKET
|21
22-401007-21
BRACKET
22
22-450366-21
LEVER,COMPRESSION RELEASE
|22
22-450274-21
LEVER,COMPRESSION RELEASE
|22
22-450274-21
LEVER,COMPRESSION RELEASE
23
22-450367-21
ROD
|23
22-450273-21
ROD
24
22-400509-01
CONTROL,ENGINE
|24
22-400509-01
CONTROL,ENGINE
25
22-590131-01
BOLT
26
01601-01948
WASHER
|26
01601-01948
WASHER
27
02205-01219
NUT
|27
02205-01219
NUT
28
22-401089-01
BOLT
|28
22-401089-01
BOLT
29
02205-00609
NUT
|29
02205-00609
NUT
30
22-400706-01
PLATE¤ NAME,COMPRESSION RELEASE
|30
22-400706-01
PLATE¤ NAME,COMPRESSION RELEASE
31
22-450272-21
LEVER,COMPRESSION RELEASE
|31
22-450272-21
LEVER,COMPRESSION RELEASE
32
21-507402-01
KNOB,THROTTLE ARM
33
22-450268-21
ARM,THROTTLE CONTROL
|33
22-450268-21
ARM,THROTTLE CONTROL
34
22-400376-01
PLATE¤ NAME,GOVERNOR CONTROL
35
21-710085-21
QUARDRANT,CONTROL LEVER
36
22-402276-01
PLATE¤ NAME,SWING AND DIGGING LOCK
37
22-590130-01
BOLT
38
01601-01948
WASHER
|38
01601-01948
WASHER
39
02205-01219
NUT
|39
02205-01219
NUT
40
22-400142-01
SPACER
41
120-43-15140
PIN,STOPPER
|41
120-43-15140
PIN,STOPPER
42
120-43-15150
SPRING
|42
120-43-15150
SPRING
43
120-43-15160
KNOB
|43
120-43-15160
KNOB
44
04050-01215
PIN
|44
04050-01215
PIN
45
21-507403-01
SPRING
46
21-511446-01
DISC,WOVEN
|47
22-580316-00
JOINT ASS'Y,CONTROL END
47
22-400202-01
JOINT
48
22-400203-01
STUD
49
22-400204-01
RING
50
04050-03018
PIN
51
01602-00720
WASHER
52
02215-00406
NUT
53
22-401004-01
PIN
|53
22-401004-01
PIN
54
00039-51600
WASHER
|54
00039-51600
WASHER
55
00027-87800
NUT
|55
00027-87800
NUT
56
22-401006-21
ROD
|56
22-401006-21
ROD
57
22-450270-21
LEVER,THROTTLE
|57
22-450270-21
LEVER,THROTTLE
58
22-450271-21
BRACKET
|58
22-450271-21
BRACKET
59
22-401088-01
SPRING
|59
22-401088-01
SPRING
60
22-450269-21
BRACKET
|60
22-450269-21
BRACKET
Выбрано товаров: 108
