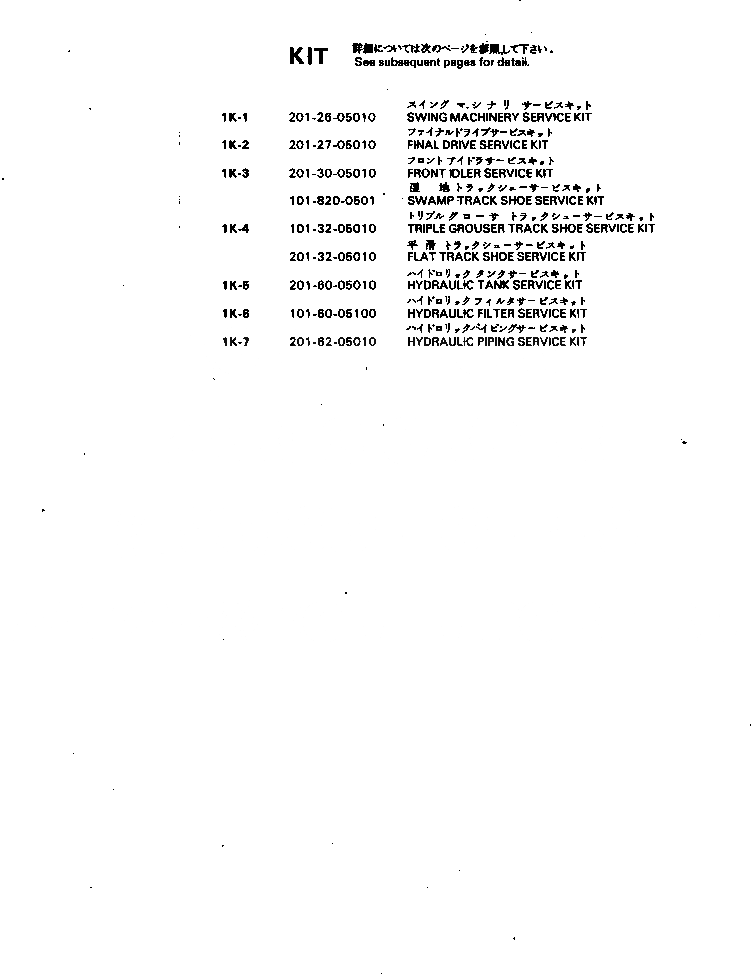

Запчасти Komatsu 10-HT-1 КОМПЛЕКТ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
1
201-26-05010
SERVICE KIT,SWING MACHINERY
|1
201-26-11131
GASKET
|1
07002-03634
O-RING
|1
07000-02075
O-RING
|1
07000-05160
O-RING
|1
07000-02065
O-RING
|1
07000-02135
O-RING
2
201-27-05010
SERVICE KIT,FINAL DRIVE
|2
201-27-11130
GASKET
|2
07002-03634
O-RING
|2
07000-02075
O-RING
|2
07000-02065
O-RING
|2
07000-02085
O-RING
|2
07000-02115
O-RING
|2
07000-02145
O-RING
|2
101-27-11230
PACKING
3
201-30-05010
SERVICE KIT,FRONT IDLER
|3
07000-03062
O-RING
|3
07000-03032
O-RING
4
101-820-0501
SHOE BOLT AND NUT K.,(SWAMP)
|4
101-820-7210
BOLT¤ SHOE
|4
01803-01218
NUT¤ SHOE
|4
101-32-05001
SHOE BOLT AND NUT K.,(TRIPLE)
|4
101-32-11210
BOLT¤ SHOE
|4
01803-01218
NUT¤ SHOE
|4
201-32-05010
SHOE BOLT AND NUT K.,(FLAT)
|4
01802-01242
BOLT,SHOE
|4
01803-01218
NUT¤ SHOE
5
201-60-05010
SERVICE KIT,HYDRAULIC TANK
|5
07000-02140
O-RING
|5
07002-01223
O-RING
|5
201-60-12161
GASKET
|5
21-531152-01
GASKET
|5
07002-03634
O-RING
6
101-60-05100
SERVICE KIT,HYDRAULIC FILTER
|6
07000-03022
O-RING
|6
07000-13072
O-RING
|6
102-60-15130
RING
|6
07000-02008
O-RING
|6
07000-02008
O-RING
7
201-62-05010
SERVICE KIT,HYDRAULIC PIPING
|7
07000-03050
O-RING
|7
07000-03045
O-RING
|7
07000-13055
O-RING
|7
07000-13025
O-RING
|7
07000-13030
O-RING
|7
201-62-11280
O-RING
|7
07000-13028
O-RING
|7
07002-12434
O-RING
|7
07002-02034
O-RING
|7
22-590452-01
O-RING
|7
07000-03028
O-RING
|7
07000-02055
O-RING
Выбрано товаров: 53
