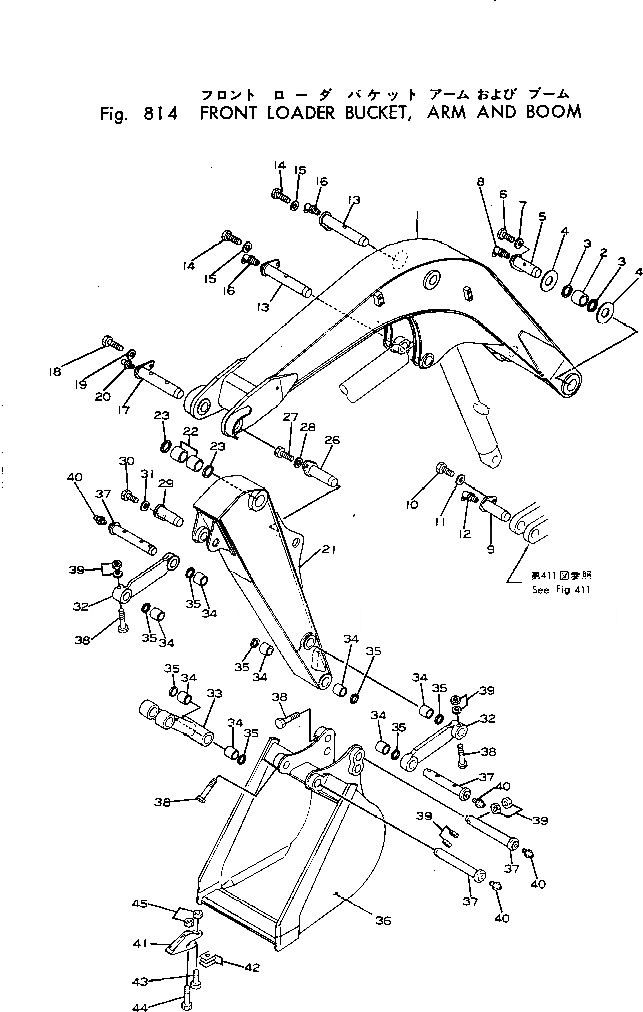

Запчасти Komatsu 10-HT-1 ПЕРЕДН. ПОГРУЗ. КОВШ¤ РУКОЯТЬ И СТРЕЛА ОПЦИОННЫЕ КОМПОНЕНТЫ

1

201-960-1110

BOOM

2

07143-10606

BUSHING

3

07145-00060

SEAL

4

201-70-11510

SPACER

5

201-70-11471

PIN

6

01010-51640

BOLT

7

01643-31645

WASHER

8

07020-00675

FITTING

9

201-70-11220

PIN

10

01010-51635

BOLT

11

01643-31645

WASHER

12

07020-00675

FITTING

13

201-960-1160

PIN

14

01010-51635

BOLT

15

01643-31645

WASHER

16

07020-00675

FITTING

17

201-70-11310

PIN

18

01010-51635

BOLT

19

01643-31645

WASHER

20

07020-00000

FITTING

21

201-960-1120

ARM

22

07143-10606

BUSHING

23

07145-00060

SEAL

26

201-960-1150

PIN

27

01010-51635

BOLT

28

01643-31645

WASHER

29

201-70-11190

PIN

30

01010-51635

BOLT

31

01643-31645

WASHER

32

201-960-1140

LINK

33

201-70-11144

LINK

34

07143-10505

BUSHING

35

07145-00050

SEAL

36

201-960-1130

BUCKET,0.25M3¤ 650MM WIDTH

37

201-70-11180

PIN

38

01011-51620

BOLT

39

01580-11613

NUT

40

07020-00000

FITTING

41

201-70-11280

TOOTH

42

201-70-11290

SHIM¤ 0.3MM

|42

201-70-11420

SHIM¤ 1.0MM

|42

201-70-11430

SHIM¤ 0.5MM

43

09208-01650

BOLT

44

09208-01660

BOLT

45

09218-01615

NUT
