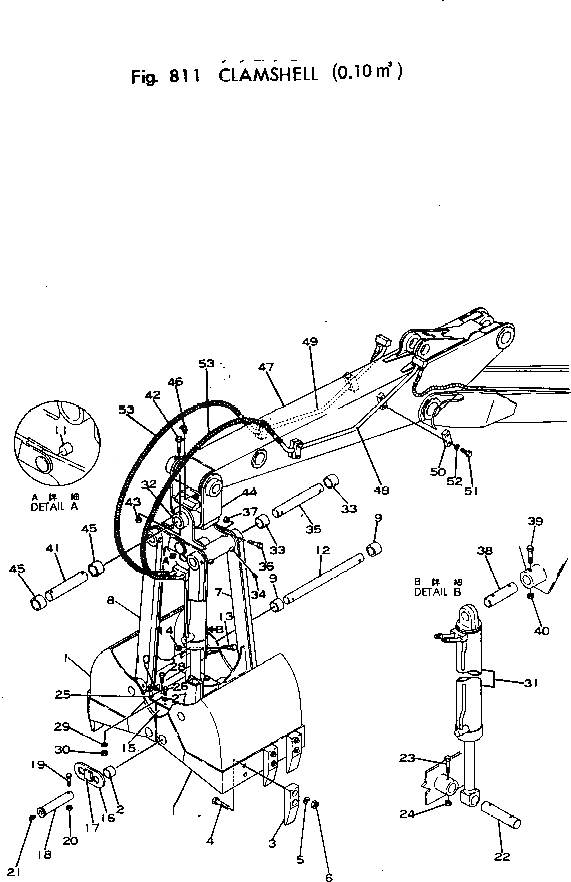

Запчасти Komatsu 10-HT-1 ГРЕЙФЕРН. (.M) ОПЦИОННЫЕ КОМПОНЕНТЫ

|1

201-931-1100

CLAMSHELL ASS'Y

1

MS.B-33931

SHELL

2

MS.B-44116

BUSHING

3

MS.B-44113

TOOTH

4

01050-31655

BOLT

5

01602-01648

WASHER

6

01582-01613

NUT

7

MS.B-33935

ROD

8

MS.B-33936

ROD

9

MS.B-44117

BUSHING

10

07020-00000

FITTING

11

MS.B-44126

PIN

12

MS.B-44114

AXLE

13

01051-31600

BOLT

14

MS.B-45099

U-NUT

15

MS.B-33932

FRAME

16

MS.B-44119

LINK

17

MS.B-44120

LOCK

18

MS.B-44115

AXLE

19

01051-31600

BOLT

20

MS.B-450099

U-NUT

21

07020-00000

FITTING

22

MS.B-44124

AXLE

23

01051-31600

BOLT

24

MS.B-45099

U-NUT

25

MS.B-44125

COVER

26

01050-31025

BOLT

27

01602-01030

WASHER

28

01050-31025

BOLT

29

01602-01030

WASHER

30

01582-01008

NUT

31

MS.B-9928

CYLINDER ASS'Y

32

MS.B-33933

FRAME

33

MS.B-44117

BUSHING

34

07020-00000

FITTING

35

MS.B-44118

AXLE

36

01051-31600

BOLT

37

MS.B-45099

U-NUT

38

MS.B-44123

AXLE

39

01051-31600

BOLT

40

MS.B-45099

U-NUT

41

MS.B-44121

AXLE

42

01051-31600

BOLT

43

MS.B-45099

U-NUT

44

201-931-0020

BRACKET ASS'Y

45

MS.B-41266

BUSHING

46

07020-00900

FITTING

47

201-931-1140

ARM

48

201-931-1130

TUBE

49

201-931-1120

TUBE

50

201-931-1170

CLAMP

51

01010-31040

BOLT

52

01602-01030

WASHER

53

201-931-1180

HOSE
