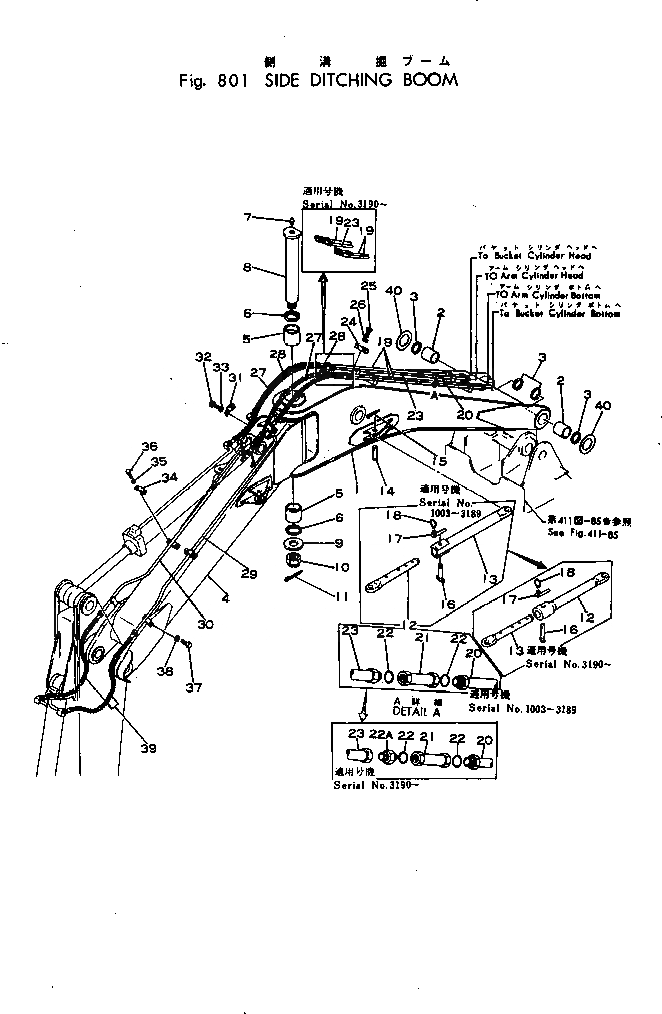

Запчасти Komatsu 10-HT-1DITCHING СТРЕЛА (BBA-A) ОПЦИОННЫЕ КОМПОНЕНТЫ

|1

201-940-0011

BOOM ASS'Y

|1

201-940-0010

BOOM ASS'Y

1

BOOM

|1

BOOM

2

07143-10606

BUSHING

3

07145-00060

SEAL

|4

201-940-0021

BOOM ASS'Y

4

BOOM

5

201-940-1190

BUSHING

6

07145-00080

SEAL

7

07020-00000

FITTING

8

201-940-1130

SHAFT

9

201-940-1140

WASHER

10

01590-05254

NUT

11

04050-08090

PIN

12

201-940-1151

BRACE

|12

201-940-1150

BRACE

|$$18

(201-940-1151{201-940-1161¤}

|$$19

201-940-1181)

13

201-940-1161

ROD

|13

201-940-1160

ROD

|$$22

(201-940-1161{201-940-1151¤}

|$$23

201-940-1181)

14

201-940-1170

PIN

15

04050-06060

PIN

16

201-940-1181

PIN

|16

201-940-1180

PIN

17

409-70-11410

PIN

18

409-70-11420

RING

19

201-940-2111

TUBE

|19

201-940-2110

TUBE

20

201-940-1210

TUBE

|20

201-62-11951

TUBE

21

201-62-11963

VALVE ASS'Y

|21

201-62-11962

VALVE ASS'Y

22

07002-12434

O-RING

22A

07230-10522

UNION

23

201-940-2122

TUBE

|23

201-940-2121

TUBE

24

201-62-12190

CLAMP

25

01010-31040

BOLT

26

01602-01030

WASHER

27

201-940-2150

HOSE

28

201-62-12180

HOSE

29

201-940-2140

TUBE

30

201-940-2130

TUBE

31

07282-02288

CLAMP

32

01010-31018

BOLT

33

01602-01030

WASHER

34

07282-02288

CLAMP

35

01602-01030

WASHER

36

01010-31018

BOLT

37

01010-31030

BOLT

38

01602-01030

WASHER

39

201-62-12180

HOSE

40

201-70-11510

SPACER
