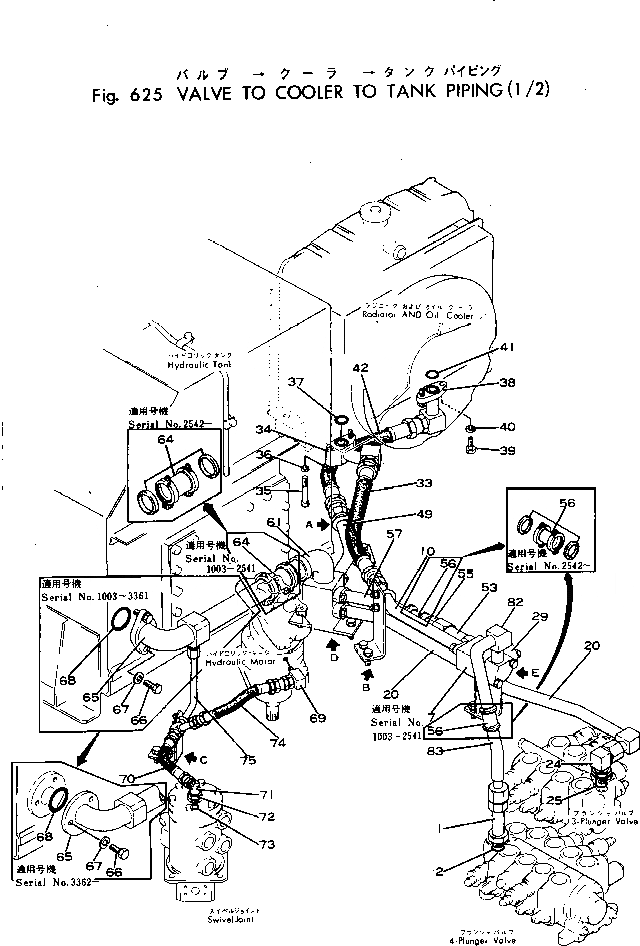

Запчасти Komatsu 10-HT-1 КЛАПАН - ОХЛАДИТЕЛЬ - БАК ТРУБЫ (/) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
1
201-62-12620
TUBE
2
22-590452-01
O-RING (KIT)
4
01010-31060
BOLT
5
01602-01030
WASHER
6
07000-03028
O-RING (KIT)
7
201-62-12340
BLOCK
8
01010-31225
BOLT
9
01602-01236
WASHER
10
201-62-12350
TUBE
11
01010-31030
BOLT
12
01602-01030
WASHER
13
07000-03028
O-RING (KIT)
14
201-62-12550
BRACKET
15
07283-02738
CLIP
16
01599-01011
NUT
17
01643-01032
WASHER
18
01010-31225
BOLT
19
01602-01236
WASHER
20
201-62-12411
TUBE
21
01010-31030
BOLT
22
01602-01030
WASHER
23
07000-03028
O-RING (KIT)
24
201-62-12391
ELBOW
25
22-590452-01
O-RING (KIT)
26
07283-02738
CLIP
27
01599-01011
NUT
28
01643-01032
WASHER
29
201-62-12421
TUBE
30
01010-31060
BOLT
31
01602-01030
WASHER
32
07000-03028
O-RING (KIT)
33
07102-20604
HOSE
34
201-62-12360
TUBE
35
01010-31060
BOLT
36
01602-01030
WASHER
37
07000-03028
O-RING (KIT)
38
201-62-12370
TUBE
39
01010-31030
BOLT
40
01602-01030
WASHER
41
07000-03028
O-RING (KIT)
42
07102-20604
HOSE
43
201-62-12561
BRACKET
44
07283-02738
CLIP
45
01643-01032
WASHER
46
01599-01011
NUT
47
01010-31225
BOLT
48
01602-01236
WASHER
49
201-62-12380
TUBE
50
01010-31030
BOLT
51
01602-01030
WASHER
52
07000-03028
O-RING (KIT)
|53
201-62-12441
CHECK VALVE ASS'Y
53
BODY
53A
SEAT
53B
201-60-19130
VALVE
53C
201-60-19140
SPRING
53D
201-60-19150
SEAT
53E
04065-02812
RING
54
07002-13334
O-RING
55
201-62-12451
TUBE
56
07332-00600
COUPLING ASS'Y
|56
201-62-12460
COUPLING ASS'Y
|56
07332-50600
GASKET
|56
07332-60600
CLAMP
57
201-62-12470
TUBE
58
01010-31030
BOLT
59
01602-01030
WASHER
60
07000-03028
O-RING (KIT)
61
201-62-12481
BLOCK
62
01010-31230
BOLT
62A
01643-01232
WASHER
63
01602-01236
WASHER
64
07332-01400
COUPLING ASS'Y
|64
201-62-11130
COUPLING ASS'Y
|64
07332-51400
GASKET
|64
07332-61400
CLAMP
65
201-62-12512
TUBE
|65
201-62-12510
TUBE
66
01010-31235
BOLT
|66
01010-31235
BOLT
67
01602-01236
WASHER
|67
01602-01236
WASHER
68
07000-02055
O-RING (KIT)
69
201-62-11670
ELBOW
70
201-62-14450
HOSE
71
07232-00315
ELBOW
72
07239-02009
NUT
73
07002-02034
O-RING (KIT)
74
201-62-14450
HOSE
75
201-62-12541
TUBE
76
201-62-12580
BRACKET
77
07283-01529
CLIP
78
01598-00809
NUT
79
01643-00823
WASHER
80
01010-31225
BOLT
81
01602-01236
WASHER
82
201-62-12670
ELBOW
83
201-62-12680
TUBE
Выбрано товаров: 98
