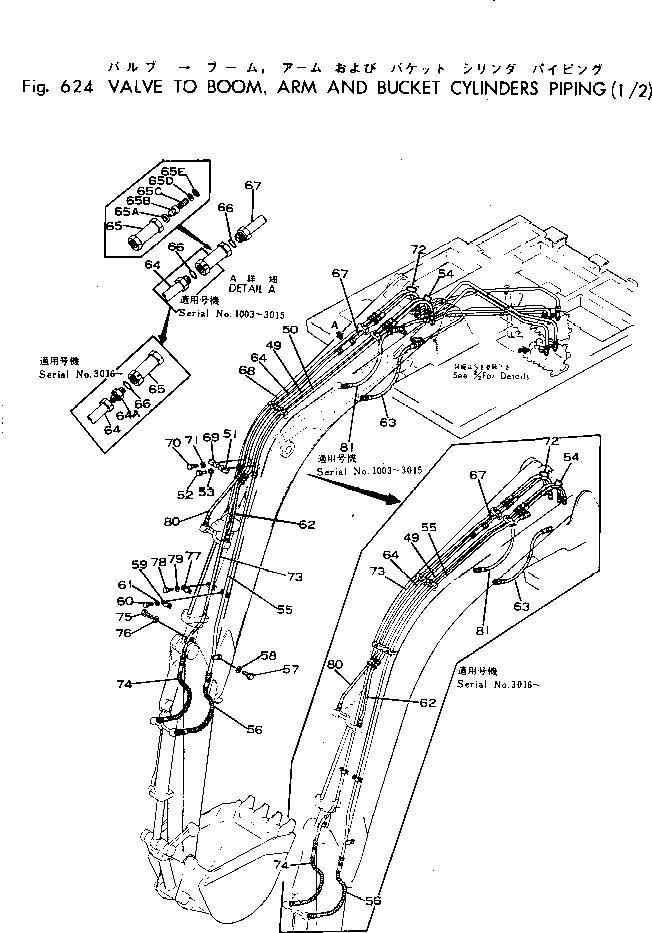

Запчасти Komatsu 10-HT-1 КЛАПАН - СТРЕЛА¤ РУКОЯТЬ И ЦИЛИНДР КОВША ТРУБЫ (/) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
1
201-62-11830
PLUG
2
201-62-11280
O-RING (KIT)
3
201-62-11812
TUBE
4
201-62-11510
ELBOW
5
201-62-11280
O-RING (KIT)
|6
201-62-11962
VALVE ASS'Y
6
BODY
6A
SEAT
6B
201-60-19120
VALVE
6C
201-62-13040
SPRING
6D
201-62-13050
SEAT
6E
201-62-13060
RING
7
07002-12434
O-RING
8
201-62-12220
CLIP
9
01599-01011
NUT
10
01643-01032
WASHER
11
201-62-14421
TUBE
12
201-62-12240
BRACKET
13
07283-02236
CLIP
14
01599-01011
NUT
15
01643-01032
WASHER
16
01010-31235
BOLT
17
01602-01236
WASHER
18
201-62-14431
TUBE
19
201-62-11410
NIPPLE
20
201-62-11280
O-RING (KIT)
21
07283-02236
CLIP
22
01599-01011
NUT
23
01643-01032
WASHER
24
201-62-12240
BRACKET
25
07283-02236
CLIP
26
01599-01011
NUT
27
01643-01032
WASHER
28
01010-31235
BOLT
29
01602-01236
WASHER
30
201-62-11870
TUBE
31
201-62-11880
TUBE
32
201-62-11410
NIPPLE
33
201-62-11280
O-RING (KIT)
34
07283-02236
CLIP
35
01599-01011
NUT
36
01643-01032
WASHER
37
201-62-12261
CLAMP
38
01010-31040
BOLT
39
01602-01030
WASHER
40
201-62-14441
TUBE
41
201-62-11410
NIPPLE
42
201-62-11280
O-RING (KIT)
43
201-62-12211
TUBE
44
201-62-11460
NIPPLE
45
201-62-11280
O-RING (KIT)
46
07283-02236
CLIP
47
01599-01011
NUT
48
01643-01032
WASHER
49
20B-62-12750
TUBE
|49
201-62-14131
TUBE
50
201-62-11980
TUBE
51
201-62-12190
CLAMP
52
01010-31040
BOLT
53
01602-01030
WASHER
54
201-62-12140
HOSE
55
20B-62-12770
TUBE
|55
201-62-12111
TUBE
56
201-62-12180
HOSE
57
01010-31025
BOLT
58
01602-01030
WASHER
59
07282-02288
CLAMP
60
01010-31018
BOLT
61
01602-01030
WASHER
62
201-62-12160
HOSE
63
201-62-12140
HOSE
64
20B-62-12761
TUBE
|64
201-62-14142
TUBE
64A
07230-10522
UNION
|65
201-62-11963
VALVE ASS'Y
|65
201-62-11962
VALVE ASS'Y
65
BODY
|65
BODY
65A
SEAT
65B
201-62-13020
VALVE
65C
201-62-13040
SPRING
65D
201-62-13050
SEAT
65E
201-62-13060
RING
66
07002-12434
O-RING
67
20B-62-12830
TUBE
|67
201-62-11951
TUBE
68
201-62-11970
TUBE
69
201-62-12190
CLAMP
70
01010-31040
BOLT
71
01602-01030
WASHER
72
201-62-12140
HOSE
73
20B-62-12780
TUBE
|73
201-62-11991
TUBE
74
201-62-12180
HOSE
75
01010-31025
BOLT
76
01602-01030
WASHER
77
07282-02288
CLAMP
78
01010-31018
BOLT
79
01602-01030
WASHER
80
201-62-12160
HOSE
81
201-62-12140
HOSE
Выбрано товаров: 101
