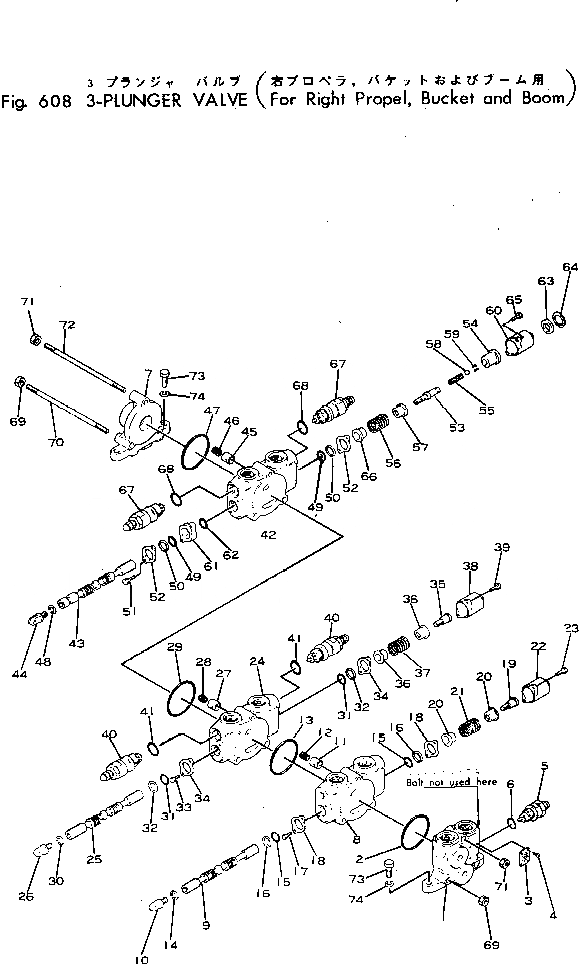

Запчасти Komatsu 10-HT-1 -PLUNGER КЛАПАН (ДЛЯ ПРАВ. PКАНАТL¤ КОВШ И СТРЕЛА) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|1
201-60-00030
VALVE ASS'Y
1
HOUSING,INLET
2
201-60-18630
O-RING
3
PLATE
4
SCREW
5
201-60-11710
VALVE ASS'Y
6
KB21001-00098
O-RING
7
201-60-18650
BRACKET
8
HOUSING
9
PLUNGER
10
201-60-18660
HEAD
11
201-60-18670
POPPET
12
201-60-18680
SPRING
13
201-60-18630
O-RING
14
201-60-18690
WASHER
15
201-60-18710
O-RING
16
201-60-18720
WIPER
17
201-60-18730
SCREW
18
201-60-18740
PLATE
19
201-60-18750
CAP
20
201-60-18760
SEAT
21
201-60-18770
SPRING
22
201-60-18780
CAP
23
01252-30622
BOLT
24
HOUSING
25
PLUNGER
26
201-60-18660
HEAD
27
201-60-18670
POPPET
28
201-60-18680
SPRING
29
201-60-18630
O-RING
30
201-60-18690
WASHER
31
201-60-18710
O-RING
32
201-60-18720
WIPER
33
201-60-18730
SCREW
34
201-60-18740
PLATE
35
201-60-18750
CAP
36
201-60-18760
SEAT
37
201-60-18770
SPRING
38
201-60-18780
CAP
39
01252-30622
BOLT
40
201-60-11720
VALVE ASS'Y
41
KB21001-00098
O-RING
42
HOUSING,VALVE
43
PLUNGER
44
201-60-18660
HEAD
45
201-60-18670
POPPET
46
201-60-18680
SPRING
47
201-60-18630
O-RING
48
201-60-18690
WASHER
49
201-60-18710
O-RING
50
201-60-18720
WIPER
51
01252-30625
BOLT
52
201-60-18740
PLATE
53
201-60-18810
PIN
54
201-60-18820
SLEEVE
55
201-60-18830
SPRING
56
201-60-18840
SPRING
57
201-60-18850
SEAT
58
201-60-18860
BALL
59
201-60-18870
BALL
60
201-60-18880
CAP
61
201-60-18890
SPACER
62
201-60-18910
O-RING
63
201-60-18920
SPACER
64
201-60-18930
RING,SNAP
65
01252-30622
BOLT
66
201-60-18760
SEAT,SPRING
67
201-60-11720
VALVE ASS'Y
68
KB21001-00098
O-RING
69
NUT
70
ROD,TIE
71
NUT
72
ROD,TIE
73
01010-31240
BOLT
74
01602-01236
WASHER
Выбрано товаров: 75
