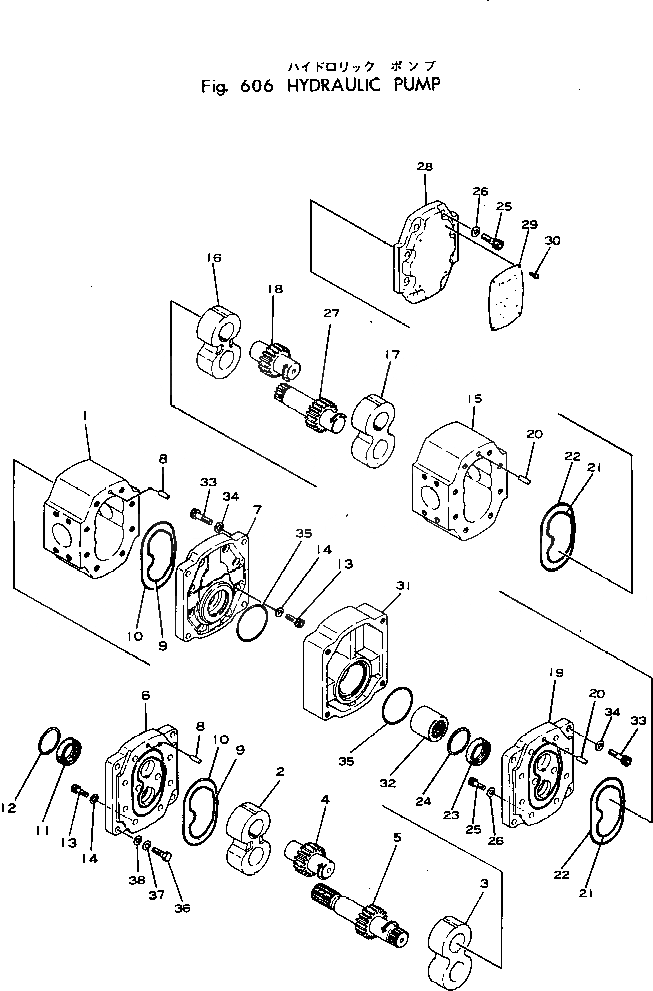

Запчасти Komatsu 10-HT-1 ГИДР. НАСОС. ГИДРАВЛИКА

|1

201-60-00021

PUMP ASS'Y

|1

201-60-11911

PUMP ASS'Y

1

BODY

2

HOUSING

3

HOUSING

4

SHAFT

5

SHAFT

6

COVER

7

COVER

8

PIN

9

201-60-11960

O-RING

10

201-60-11950

O-RING

11

201-60-11930

SEAL

12

RING,SNAP

13

BOLT

14

WASHER

|15

201-60-11921

PUMP ASS'Y

15

BODY

16

HOUSING

17

HOUSING

18

SHAFT

19

COVER

20

PIN

21

201-60-11960

O-RING

22

201-60-11950

O-RING

23

201-60-11930

SEAL

24

RING

25

BOLT

26

WASHER

27

SHAFT

28

COVER

29

PLATE

30

RIVET

31

201-60-11980

CONNECTOR

32

201-60-11940

JOINT

33

BOLT

34

WASHER

35

201-60-11970

O-RING

36

01010-30835

BOLT

37

01602-00825

WASHER

38

01643-00823

WASHER
