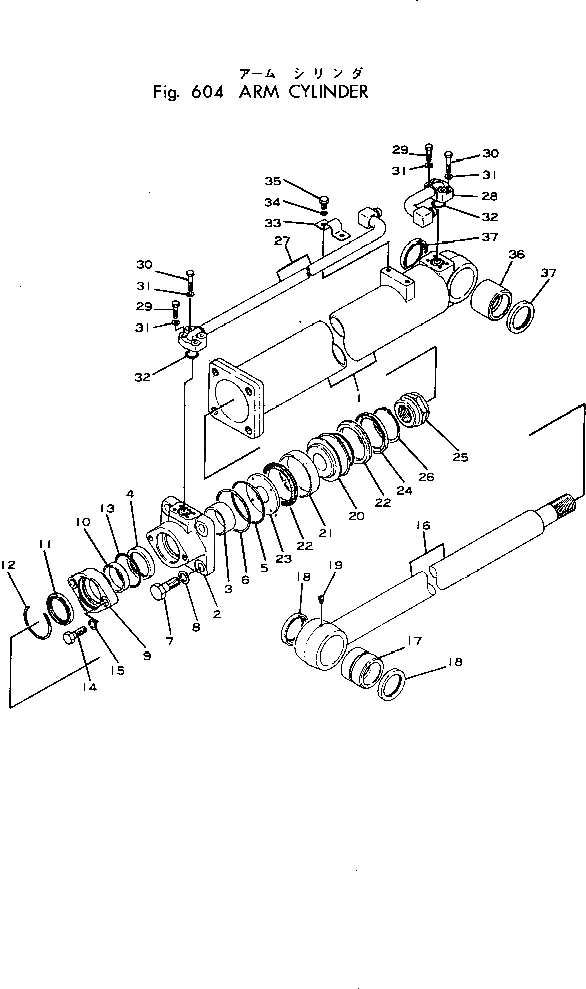

Запчасти Komatsu 10-HT-1 ЦИЛИНДР РУКОЯТИ ГИДРАВЛИКА

|1

201-63-36101

CYLINDER ASS'Y

|1

201-63-36100

CYLINDER ASS'Y

1

201-63-36141

CYLINDER

|1

201-63-36140

CYLINDER

2

201-63-36131

HEAD

3

07177-06530

BUSHING

4

154-63-12173

PACKING

5

07000-12105

O-RING

6

07146-02106

RING

7

01010-52055

BOLT

8

01602-22060

WASHER

9

07178-06540

GLAND

10

07177-06515

BUSHING

11

07016-00658

SEAL

12

07179-00088

RING

13

07000-03080

O-RING

14

01010-51450

BOLT

|14

01010-51445

BOLT

15

01602-21442

WASHER

16

201-63-36120

ROD

17

07144-10606

BUSHING

18

07145-00060

SEAL

19

07020-00675

FITTING

20

201-63-36170

PISTON

21

07155-01125

RING

22

113-63-22461

U-PACKING

23

201-63-36270

RETAINER

24

113-63-22570

RETAINER

25

201-63-46190

NUT

26

04069-00852

RING

27

201-63-36371

TUBE

|27

201-63-36370

TUBE

28

201-63-36380

TUBE

29

01010-50840

BOLT

|29

01010-50835

BOLT

30

01010-50850

BOLT

|30

01010-50845

BOLT

31

01602-20825

WASHER

32

07000-13025

O-RING

33

07282-02288

CLAMP

34

01602-21030

WASHER

35

01010-51020

BOLT

36

07143-10606

BUSHING

37

07145-00060

SEAL
