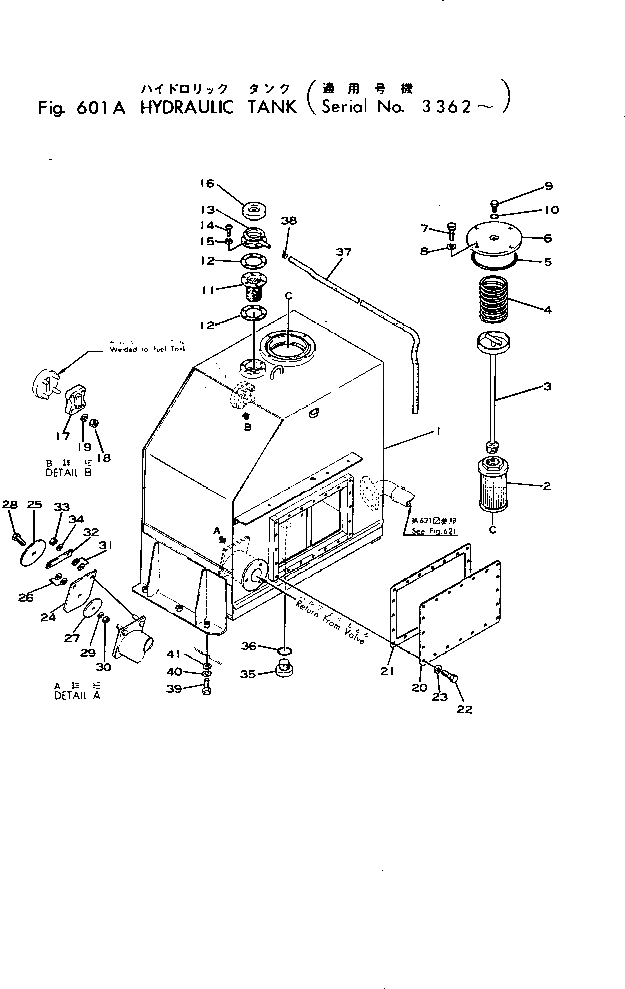

Запчасти Komatsu 10-HT-1 ГИДР. БАК.(№-) ГИДРАВЛИКА

|1

201-60-00014

TANK ASS'Y

1

201-60-12114

TANK

2

201-60-12121

STRAINER

3

201-60-12132

ROD

4

154-60-12210

SPRING

5

07000-02140

O-RING

6

201-60-12142

COVER

7

01010-31230

BOLT

8

01602-01236

WASHER

9

07060-01230

BOLT

10

07002-01223

O-RING

11

22-451231-21

SCREEN

12

21-531152-01

GASKET

13

201-60-12171

FILLER

14

01220-30516

SCREW

15

01601-00513

WASHER

16

201-60-12190

CAP ASS'Y

17

155-60-12300

LEVEL GAUGE ASS'Y

18

01580-01008

NUT

19

01602-01030

WASHER

20

201-60-12151

COVER

21

201-60-12161

GASKET

22

01010-31025

BOLT

23

01602-01030

WASHER

|24

22-452930-51

CHECK VALVE ASS'Y

24

22-405295-01

PLATE

25

22-405294-01

PLATE

26

01640-20816

WASHER

27

22-405296-01

PLATE

28

01010-30820

BOLT

29

01602-00825

WASHER

30

01580-00806

NUT

31

01640-20816

WASHER

32

22-405297-01

PLATE

33

01580-00806

NUT

34

01602-00825

WASHER

35

07044-13620

PLUG

36

07002-03634

O-RING

37

201-60-12180

TUBE

38

04059-01010

WIRE

39

01010-31640

BOLT

40

01602-01648

WASHER

41

01643-01645

WASHER
