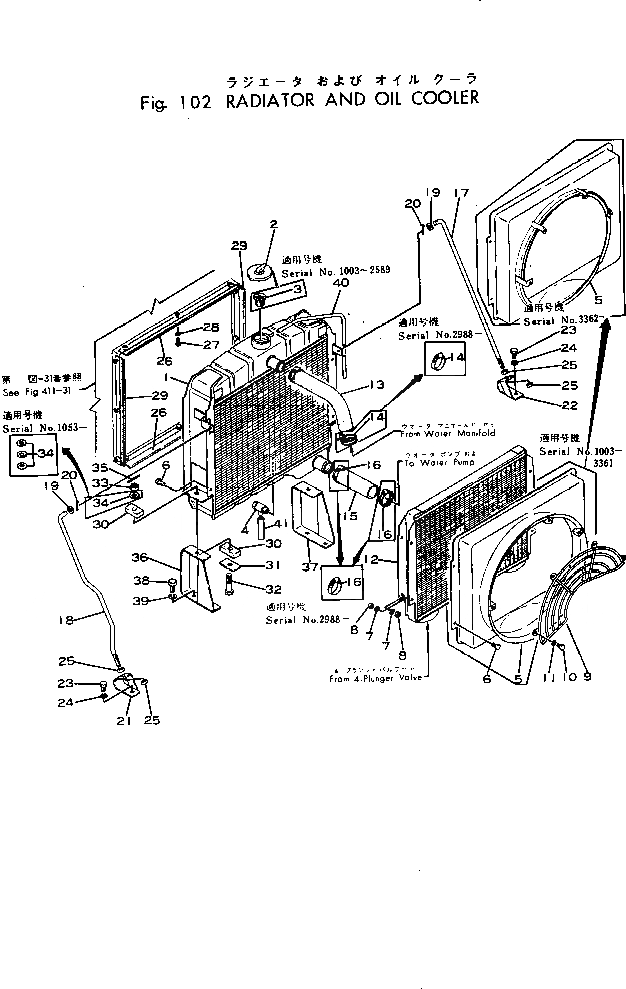

Запчасти Komatsu 10-HT-1 РАДИАТОР И МАСЛООХЛАДИТЕЛЬ КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

|1

201-03-00012

RADIATOR ASS'Y

|1

201-03-00010

RADIATOR ASS'Y

1

101-03-21102

CORE ASS'Y

|1

101-03-21101

CORE ASS'Y

2

101-03-13141

CAP

3

101-03-15130

STRAINER

4

07730-10003

VALVE

5

101-03-21113

SHROUD

|5

101-03-21112

SHROUD

6

01010-30814

BOLT

7

01602-00825

WASHER

8

01580-00806

NUT

9

101-03-21121

NET

10

01010-30610

BOLT

11

01602-00619

WASHER

12

201-03-11201

OIL COOLER ASS'Y

13

201-03-11190

TUBE

14

07281-00549

CLAMP

|14

07280-04426

CLAMP

15

201-03-11180

TUBE

16

07281-00549

CLAMP

|16

07280-04726

CLAMP

17

101-03-12170

ROD

18

201-03-11170

ROD

19

01641-01223

WASHER

20

04050-03015

PIN

21

101-03-12150

BRACKET

22

101-03-12160

BRACKET

23

01010-31225

BOLT

24

01602-01236

WASHER

25

01580-01008

NUT

26

101-03-21171

PLATE

27

01010-50620

BOLT

28

01602-00619

WASHER

29

101-03-14151

PLATE

30

100-03-12140

SEAT

31

100-03-12150

WASHER

32

01052-31260

BOLT

33

01593-01210

NUT

34

01640-01223

WASHER

|34

01640-01223

WASHER

35

04050-03025

PIN

36

101-03-12122

BRACKET

37

101-03-12132

BRACKET

38

01010-31225

BOLT

39

01602-01236

WASHER

40

101-03-13170

PIPE

41

07270-00830

TUBE
