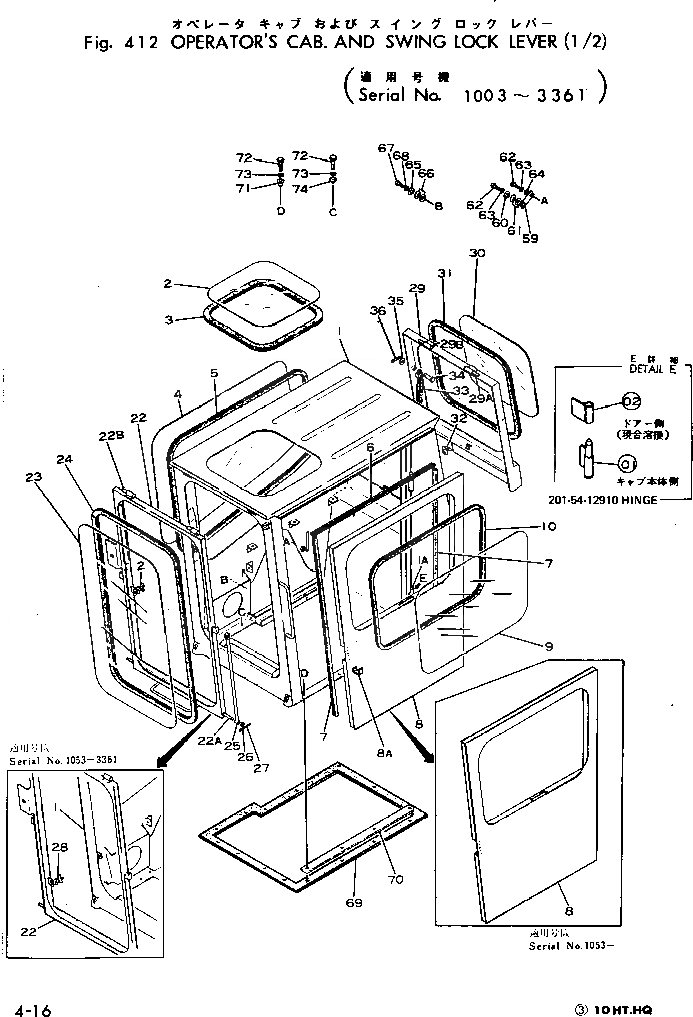

Запчасти Komatsu 10-HT-1 КАБИНА И ПОВОРОТН. РЫЧАГ БЛОКИРОВКИ(№-) СИСТЕМА УПРАВЛЕНИЯ¤ ОСНОВНАЯ РАМА И КАБИНА

|1

201-54-00102

CAB ASS'Y

|1

201-54-00101

CAB ASS'Y

|1

201-54-00100

CAB ASS'Y

1

201-54-11133

CAB

|1

201-54-11132

CAB

|$$6

(201-54-11133{201-54-00012)}

|1

201-54-11131

CAB

1A

201-54-12910

HINGE (WELDED)

|1A

201-54-12910

HINGE (WELDED)

2

201-54-12620

GLASS

3

09410-00190

STRIP,WEATHER

4

201-54-12850

GLASS

5

09410-00330

STRIP,WEATHER

6

201-54-11310

SEAL

7

201-54-11320

SEAL

|8

201-54-00012

DOOR ASS'Y

|8

201-54-00011

DOOR ASS'Y

|8

201-54-00010

DOOR ASS'Y

8

201-54-11283

DOOR

|8

201-54-11282

DOOR

|8

201-54-11281

DOOR

8A

201-54-13680

HOOK

9

201-54-11290

GLASS

10

09410-00270

STRIP,WEATHER

|11

201-54-00021

HANDLE ASS'Y

|11

201-54-00020

HANDLE ASS'Y

|11

201-54-00019

HANDLE ASS'Y

11

201-54-13760

LOCK

|11

201-54-13591

LOCK

|11

201-54-13590

LOCK

12

201-54-13770

HANDLE

|12

201-54-13740

HANDLE

|12

09454-00020

HANDLE

13

09454-00010

HANDLE

14

01220-30408

SCREW

|14

01220-30412

SCREW

15

01220-30616

SCREW

|15

01220-30612

SCREW

15A

01220-30610

SCREW

16

01602-00619

WASHER

16A

01580-00605

NUT

17

01225-30416

SCREW

|17

01225-30420

SCREW

17A

201-54-13780

GROMMET

18

201-54-13790

COVER

|18

201-54-11332

COVER

19

01370-00508

SCREW

|19

01220-30408

SCREW

20

01611-05063

WASHER

|20

01602-00410

WASHER

21

01642-00405

WASHER

|22

201-54-00031

FRONT DOOR ASS'Y

|22

201-54-00030

FRONT DOOR ASS'Y

22

201-54-11252

DOOR

|22

201-54-11251

DOOR

22A

201-54-11670

PIN (WELDED)

22B

201-54-12920

HINGE (WELDED)

23

201-54-11261

GLASS

24

09410-00360

STRIP,WEATHER

25

201-54-12810

ROD

26

01641-01016

WASHER

27

04050-03015

PIN

28

202-54-11621

LOCK

|29

201-54-00040

REAR WINDOW ASS'Y

29

201-54-12790

WINDOW

29A

201-54-12920

HINGE (WELDED)

29B

201-54-12940

HINGE (WELDED)

30

201-54-12830

GLASS

31

09410-00230

STRIP,WEATHER

32

202-54-11621

LOCK

33

201-54-12860

ROD

34

04205-01028

PIN

35

01641-01016

WASHER

36

04050-03015

PIN

37

201-54-11190

TUBE

38

08036-00614

CLIP

39

01010-31225

BOLT

40

01602-01236

WASHER

41

07950-00200

PUMP

42

07214-30610

CONNECTOR

43

22-451291-21

ADAPTER

44

01010-31035

BOLT

44A

01010-31025

BOLT

45

01602-01030

WASHER

46

201-54-12772

COVER

|46

201-54-12771

COVER

47

201-54-12783

PANEL

|47

201-54-12782

PANEL

48

01010-30816

BOLT

|48

01010-30816

BOLT

49

01602-00825

WASHER

|49

01602-00825

WASHER

50

01640-00816

WASHER

|50

01640-00816

WASHER

51

201-54-11180

PIN

52

201-54-11171

ROD

53

01580-01210

NUT

54

04205-01235

PIN

55

04050-03020

PIN

56

201-54-12961

LEVER

|56

201-54-12960

LEVER

57

04210-01248

YOKE

58

01583-01207

NUT

59

201-54-13180

PLATE

60

201-54-12240

COLLAR

61

201-54-13160

SPRING

62

01010-31225

BOLT

63

01602-01236

WASHER

64

01643-01232

WASHER

65

201-54-12240

COLLAR

66

201-54-13160

SPRING

67

01010-31225

BOLT

68

01602-01236

WASHER

69

201-54-12291

SEAT

70

201-54-12311

SEAT

71

201-54-12330

COLLAR

72

01010-31250

BOLT

73

01602-01236

WASHER

74

201-54-12321

COLLAR
