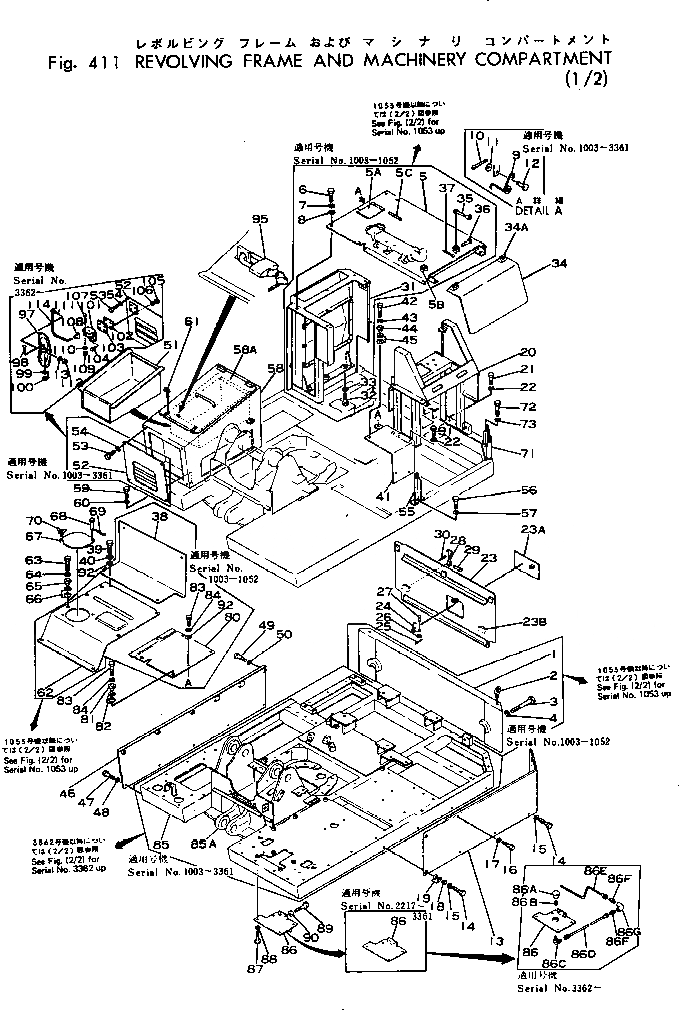

Запчасти Komatsu 10-HT-1 ОСНОВНАЯ РАМА И MACHINERY ОБСТАНОВКА (/) СИСТЕМА УПРАВЛЕНИЯ¤ ОСНОВНАЯ РАМА И КАБИНА

1

201-54-11113

WEIGHT,500KG

|1

201-54-11112

WEIGHT,300KG

|1

201-54-11111

WEIGHT

2

04530-01628

BOLT

3

01011-32420

BOLT

|3

01011-32440

BOLT

|3

01011-32410

BOLT

4

01602-02472

WASHER

4A

01643-32460

WASHER

5

201-54-12681

COVER ASS'Y

|5

201-54-12682

COVER

|5

201-54-12680

COVER

5A

201-54-11520

COVER

5B

09450-00001

PLATE (WELDED)

5C

102-54-11280

PIN

6

01010-31025

BOLT

7

01602-01030

WASHER

8

01643-01032

WASHER

|8

01640-01016

WASHER

9

120-54-12210

SPRING

10

04050-01208

PIN

11

01641-00508

WASHER

12

04205-00516

PIN

13

201-54-11381

COVER

14

01010-31025

BOLT

15

01602-01030

WASHER

16

01010-31035

BOLT

17

01602-01030

WASHER

18

201-54-12760

COLLAR

19

201-54-13160

SPRING

20

201-54-12710

BRACKET

21

01010-31230

BOLT

22

01602-01236

WASHER

23

20B-54-11320

COVER

23A

20B-54-11310

COVER ASS'Y

23B

09450-00003

BRACKET

24

120-54-12210

SPRING

25

04050-01208

PIN

26

01641-00508

WASHER

27

04205-00516

PIN

28

09450-00000

CATCH

29

09450-00002

PIN

30

04050-01610

PIN

31

201-54-12750

COVER

32

01010-31230

BOLT

33

01602-01236

WASHER

34

201-54-12660

COVER ASS'Y

34A

09450-00003

BRACKET

35

09450-00000

CATCH

36

09450-00002

PIN

37

04050-01610

PIN

38

201-54-12671

COVER

|38

201-54-12670

COVER

38A

09455-17019

HINGE

38B

201-54-13690

HINGE

39

01010-30616

BOLT

|39

01010-31025

BOLT

40

01602-00619

WASHER

|40

01602-01030

WASHER

41

201-54-12650

COVER

42

01010-31025

BOLT

43

01602-01030

WASHER

44

201-54-12760

COLLAR

45

201-54-13160

SPRING

46

201-54-11451

COVER

47

01010-31025

BOLT

48

01602-01030

WASHER

49

01010-31035

BOLT

50

01602-01030

WASHER

51

201-54-11470

BOX

52

201-54-11492

COVER

|52

201-54-11490

COVER

|$$73

(201-54-11492{22-450764-21¤}

|$$74

22-500757-02)

53

01010-31025

BOLT

54

01602-01030

WASHER

55

201-54-11510

BRACKET

56

01010-31235

BOLT

57

01602-01236

WASHER

58

201-54-11541

CASE ASS'Y

|58

201-54-11540

CASE

58A

201-54-11480

COVER

59

01010-31235

BOLT

60

01602-01236

WASHER

61

09459-00000

LOCK

|61

09459-00000

LOCK

62

201-54-12632

COVER

|62

201-54-12631

COVER

63

01010-31025

BOLT

64

01602-01030

WASHER

65

201-54-12760

COLLAR

66

201-54-13160

SPRING

67

201-54-12890

COVER

68

04205-01022

PIN

69

04050-03015

PIN

70

201-54-11150

LOCK

71

201-54-13410

BRACKET

72

01010-31235

BOLT

73

01602-01236

WASHER

80

201-54-12644

COVER

|80

201-54-12641

COVER

|80

201-54-12640

COVER

81

201-54-12760

COLLAR

82

201-54-13160

SPRING

83

01010-31025

BOLT

84

01602-01030

WASHER

85

201-46-11112

FRAME

|85

201-46-11111

FRAME

85A

201-46-11120

BRACKET (WELDED)

86

201-46-11133

COVER

|86

201-46-11132

COVER

|86

201-46-11131

COVER

86A

22-408253-02

CAP

86B

07020-00000

FITTING

86C

07217-50610

ELBOW

86D

201-46-11150

TUBE

86E

201-46-11160

TUBE

86F

07214-60610

CONNECTOR

86G

07323-00100

ELBOW

87

01010-31225

BOLT

88

01602-01236

WASHER

89

01010-31230

BOLT

|89

01010-31230

BOLT

90

01580-01210

NUT

|90

01580-01210

NUT

91

01010-31235

BOLT

92

01640-01016

WASHER

|92

01640-01016

WASHER

92A

01640-00616

WASHER

93

01640-01223

WASHER

94

201-54-13710

WEIGHT

95

09460-00000

LOCK,PAD

|97

22-450764-21

MIRROR ASS'Y

97

22-595047-21

MIRROR

98

22-595048-01

BOLT

99

01602-01030

WASHER

100

01580-01008

NUT

|101

22-500757-02

STAY ASS'Y

101

22-595823-21

BRACKET

102

22-595824-01

PLATE

103

22-595825-01

PACKING

104

22-596334-01

BOLT

105

01580-00605

NUT

106

01602-00619

WASHER

107

22-596335-01

BOLT

108

22-595040-01

BUSHING

109

01580-01002

NUT

110

01602-01030

WASHER

111

22-596336-01

BOLT

112

01580-01210

NUT

113

01602-01236

WASHER

114

22-596337-01

STAY
