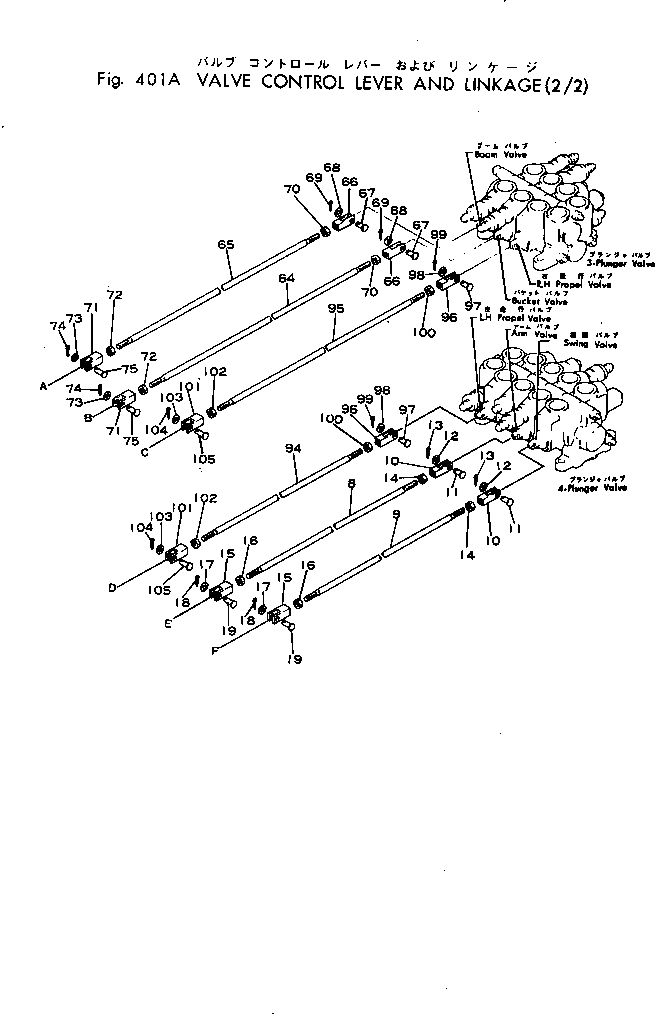

Запчасти Komatsu 10-HT-1 КЛАПАН РЫЧАГ УПРАВЛ-Я И МЕХАНИЗМ (/) СИСТЕМА УПРАВЛЕНИЯ¤ ОСНОВНАЯ РАМА И КАБИНА
№
Артикул
Название
Примечание
Количество
1
201-43-11113
LEVER
|1
201-43-11112
LEVER
|1
201-43-11111
LEVER
2
09304-01250
KNOB
3
04252-01061
END
4
01582-01008
NUT
5
04250-51056
END
6
04205-01032
PIN
7
04050-03015
PIN
8
201-43-11190
ROD
9
201-43-11240
ROD
10
201-43-11210
YOKE
11
04205-00822
PIN
|11
04205-00825
PIN
12
01641-00812
WASHER
13
04050-02012
PIN
14
01582-01008
NUT
15
04210-01040
YOKE
16
01582-01008
NUT
17
01641-01016
WASHER
18
04050-03015
PIN
19
04205-01028
PIN
|19
04205-01030
PIN
20
07020-00900
FITTING
21
201-43-11220
SHAFT
21A
04050-03050
PIN
22
06122-03004
SEAL
|22
06122-03004
SEAL
23
06120-03020
BEARING
|23
06120-03020
BEARING
24
201-43-11620
TUBE
25
201-43-11232
LEVER
|25
201-43-11231
LEVER
26
201-43-11271
LEVER
|26
201-43-11270
LEVER
27
20B-43-11461
ANGLE
|27
201-43-11342
ANGLE
27A
20B-43-11422
STOPPER
28
01010-31240
BOLT
|28
01010-31230
BOLT
29
01602-01236
WASHER
29A
01643-31232
WASHER
30
01010-31245
BOLT
31
01602-01236
WASHER
32
07020-00900
FITTING
33
01010-31245
BOLT
34
01602-01236
WASHER
35
01010-31245
BOLT
36
01602-01236
WASHER
|37
201-43-00030
BRACKET ASS'Y
37
BRACKET
38
07020-00900
FITTING
39
01010-31230
BOLT
40
01602-01236
WASHER
41
201-43-11161
SHAFT
|41
201-43-11160
SHAFT
42
06120-03020
BEARING
43
06122-03004
SEAL
44
201-43-11280
LEVER
45
04010-00732
KEY
46
201-43-11181
LEVER
47
04010-00732
KEY
48
22-590559-22
END
|48
21-502181-21
END
49
01010-30825
BOLT
50
01602-00825
WASHER
51
201-43-11143
LEVER
|51
201-43-11142
LEVER
|51
201-43-11141
LEVER
52
09304-01250
KNOB
52A
20B-43-11430
STOPPER
52B
01010-31235
BOLT
52C
01602-01236
WASHER
52D
01643-31232
WASHER
53
04252-01061
END
54
01582-01008
NUT
55
04250-51056
END
56
04205-01032
PIN
57
04050-03015
PIN
58
135-43-11171
SHAFT
59
07020-00675
FITTING
60
06120-01612
BEARING
61
06122-01603
SEAL
62
01306-00616
SCREW
63
04059-01012
WIRE
64
201-43-11320
ROD
65
201-43-11330
ROD
66
201-43-11210
YOKE
67
04205-00822
PIN
|67
04205-00825
PIN
68
01641-20812
WASHER
69
04050-02012
PIN
70
01582-01008
NUT
71
04210-01040
YOKE
72
01582-01008
NUT
73
01641-01016
WASHER
74
04050-03015
PIN
75
04205-01028
PIN
|75
04205-01030
PIN
76
135-43-11171
SHAFT
77
07020-00675
FITTING
78
06120-01612
BEARING
79
06122-01603
SEAL
80
01306-00616
SCREW
81
04059-01012
WIRE
82
201-43-11290
BRACKET
83
201-43-11641
STOPPER
|83
201-43-11640
STOPPER
84
01010-31230
BOLT
85
01602-01236
WASHER
86
201-43-11311
SHAFT
87
06120-03020
BEARING
88
06122-03004
SEAL
89
201-43-11280
LEVER
90
04010-00732
KEY
91
201-43-11122
LEVER
92
201-43-11132
LEVER
93
09304-01250
KNOB
94
201-43-11240
ROD
95
201-43-11260
ROD
96
201-43-11210
YOKE
97
04205-00822
PIN
|97
04205-00825
PIN
98
01641-00812
WASHER
99
04050-02012
PIN
100
01582-01008
NUT
101
04210-01040
YOKE
102
01582-01008
NUT
103
01641-01016
WASHER
104
04050-03015
PIN
105
04205-01028
PIN
|105
04205-01030
PIN
|106
201-43-00020
SPRING ASS'Y
106
01580-01008
NUT
106A
201-43-11770
NUT
107
201-43-11680
ROD
108
201-43-11690
TUBE
109
201-43-11720
SPRING
110
201-43-11710
WASHER
111
201-43-11730
PIPE
112
201-43-11740
PIN
113
01640-01626
WASHER
114
04050-04025
PIN
115
201-43-11750
BRACKET
116
01010-31025
BOLT
117
01602-01030
WASHER
118
01640-01016
WASHER
Выбрано товаров: 147
