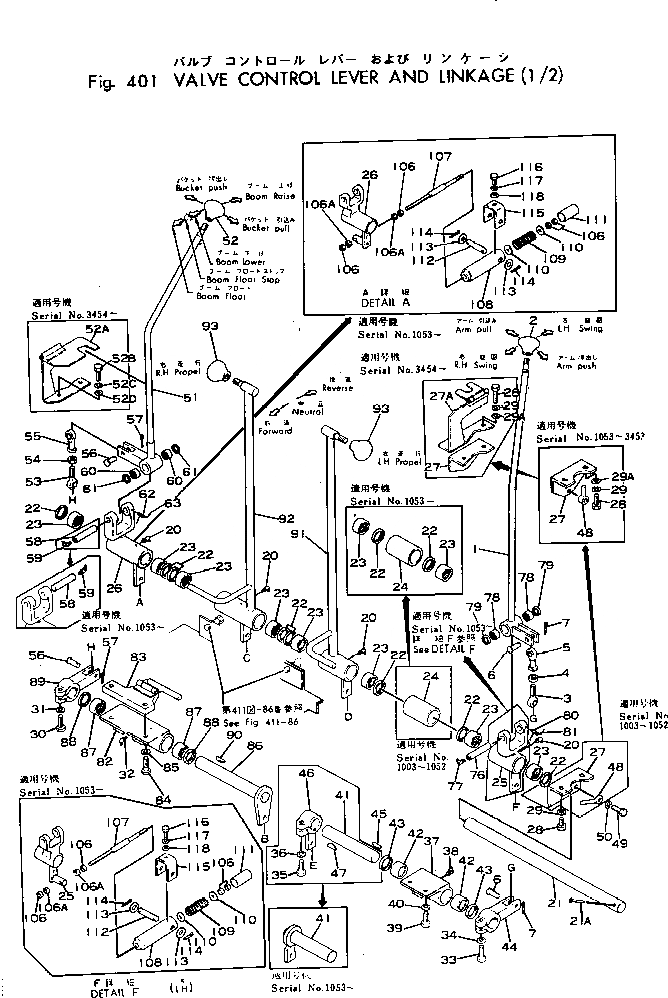

Запчасти Komatsu 10-HT-1 КЛАПАН РЫЧАГ УПРАВЛ-Я И МЕХАНИЗМ (/) СИСТЕМА УПРАВЛЕНИЯ¤ ОСНОВНАЯ РАМА И КАБИНА

1

201-43-11113

LEVER

|1

201-43-11112

LEVER

|1

201-43-11111

LEVER

2

09304-01250

KNOB

3

04252-01061

END

4

01582-01008

NUT

5

04250-51056

END

6

04205-01032

PIN

7

04050-03015

PIN

8

201-43-11190

ROD

9

201-43-11240

ROD

10

201-43-11210

YOKE

11

04205-00822

PIN

|11

04205-00825

PIN

12

01641-00812

WASHER

13

04050-02012

PIN

14

01582-01008

NUT

15

04210-01040

YOKE

16

01582-01008

NUT

17

01641-01016

WASHER

18

04050-03015

PIN

19

04205-01028

PIN

|19

04205-01030

PIN

20

07020-00900

FITTING

21

201-43-11220

SHAFT

21A

04050-03050

PIN

22

06122-03004

SEAL

|22

06122-03004

SEAL

23

06120-03020

BEARING

|23

06120-03020

BEARING

24

201-43-11620

TUBE

25

201-43-11232

LEVER

|25

201-43-11231

LEVER

26

201-43-11271

LEVER

|26

201-43-11270

LEVER

27

20B-43-11461

ANGLE

|27

201-43-11342

ANGLE

27A

20B-43-11422

STOPPER

28

01010-31240

BOLT

|28

01010-31230

BOLT

29

01602-01236

WASHER

29A

01643-31232

WASHER

30

01010-31245

BOLT

31

01602-01236

WASHER

32

07020-00900

FITTING

33

01010-31245

BOLT

34

01602-01236

WASHER

35

01010-31245

BOLT

36

01602-01236

WASHER

|37

201-43-00030

BRACKET ASS'Y

37

BRACKET

38

07020-00900

FITTING

39

01010-31230

BOLT

40

01602-01236

WASHER

41

201-43-11161

SHAFT

|41

201-43-11160

SHAFT

42

06120-03020

BEARING

43

06122-03004

SEAL

44

201-43-11280

LEVER

45

04010-00732

KEY

46

201-43-11181

LEVER

47

04010-00732

KEY

48

22-590559-22

END

|48

21-502181-21

END

49

01010-30825

BOLT

50

01602-00825

WASHER

51

201-43-11143

LEVER

|51

201-43-11142

LEVER

|51

201-43-11141

LEVER

52

09304-01250

KNOB

52A

20B-43-11430

STOPPER

52B

01010-31235

BOLT

52C

01602-01236

WASHER

52D

01643-31232

WASHER

53

04252-01061

END

54

01582-01008

NUT

55

04250-51056

END

56

04205-01032

PIN

57

04050-03015

PIN

58

135-43-11171

SHAFT

59

07020-00675

FITTING

60

06120-01612

BEARING

61

06122-01603

SEAL

62

01306-00616

SCREW

63

04059-01012

WIRE

64

201-43-11320

ROD

65

201-43-11330

ROD

66

201-43-11210

YOKE

67

04205-00822

PIN

|67

04205-00825

PIN

68

01641-20812

WASHER

69

04050-02012

PIN

70

01582-01008

NUT

71

04210-01040

YOKE

72

01582-01008

NUT

73

01641-01016

WASHER

74

04050-03015

PIN

75

04205-01028

PIN

|75

04205-01030

PIN

76

135-43-11171

SHAFT

77

07020-00675

FITTING

78

06120-01612

BEARING

79

06122-01603

SEAL

80

01306-00616

SCREW

81

04059-01012

WIRE

82

201-43-11290

BRACKET

83

201-43-11641

STOPPER

|83

201-43-11640

STOPPER

84

01010-31230

BOLT

85

01602-01236

WASHER

86

201-43-11311

SHAFT

87

06120-03020

BEARING

88

06122-03004

SEAL

89

201-43-11280

LEVER

90

04010-00732

KEY

91

201-43-11122

LEVER

92

201-43-11132

LEVER

93

09304-01250

KNOB

94

201-43-11240

ROD

95

201-43-11260

ROD

96

201-43-11210

YOKE

97

04205-00822

PIN

|97

04205-00825

PIN

98

01641-00812

WASHER

99

04050-02012

PIN

100

01582-01008

NUT

101

04210-01040

YOKE

102

01582-01008

NUT

103

01641-01016

WASHER

104

04050-03015

PIN

105

04205-01028

PIN

|105

04205-01030

PIN

|106

201-43-00020

SPRING ASS'Y

106

01580-01008

NUT

106A

201-43-11770

NUT

107

201-43-11680

ROD

108

201-43-11690

TUBE

109

201-43-11720

SPRING

110

201-43-11710

WASHER

111

201-43-11730

PIPE

112

201-43-11740

PIN

113

01640-01626

WASHER

114

04050-04025

PIN

115

201-43-11750

BRACKET

116

01010-31025

BOLT

117

01602-01030

WASHER

118

01640-01016

WASHER
