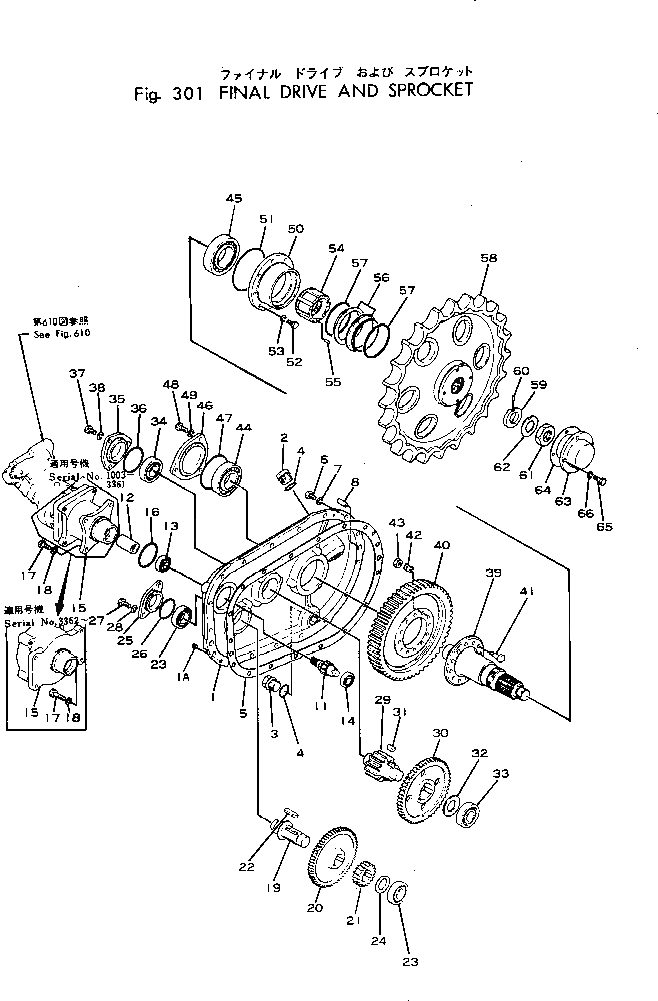

Запчасти Komatsu 10-HT-1 КОНЕЧНАЯ ПЕРЕДАЧА И ЗВЕЗДОЧКА ХОДОВАЯ
№
Артикул
Название
Примечание
Количество
|1
201-27-00011
CASE ASS'Y,L.H.
|1
201-27-00010
CASE ASS'Y,L.H.
|1
201-27-00021
CASE ASS'Y,R.H.
|1
201-27-00020
CASE ASS'Y,R.H.
1
201-27-11111
CASE,L.H.
|1
201-27-11110
CASE,L.H.
|1
201-27-11121
CASE,R.H.
|1
201-27-11120
CASE,R.H.
1A
07049-01215
PLUG
2
07041-13612
PLUG
3
07044-13620
PLUG
4
07002-03634
O-RING (KIT)
5
201-27-11130
GASKET (KIT)
6
01010-31230
BOLT
7
01602-01236
WASHER
8
04020-01638
PIN,DOWEL
11
201-26-11210
SHAFT
12
201-26-11221
COUPLING
13
06044-00205
BEARING
14
06040-06204
BEARING
15
201-27-11360
CAGE
|15
201-26-11230
CAGE
16
07000-02075
O-RING (KIT)
17
01010-31240
BOLT
|17
01010-31230
BOLT
18
01602-01236
WASHER
19
201-27-11310
SHAFT
20
201-26-11321
GEAR
21
201-27-11320
GEAR
22
04000-00755
KEY
23
06044-00207
BEARING
24
201-27-11330
COLLAR
25
201-26-11330
COVER
26
07000-02065
O-RING (KIT)
27
01010-31230
BOLT
28
01602-01236
WASHER,SPRING
29
201-27-11410
SHAFT¤ 11 TEETH
30
201-27-11422
GEAR
31
201-27-11430
KEY
32
201-27-11440
COLLAR
33
06044-00307
BEARING
34
06043-02208
BEARING
35
201-27-11450
COVER
36
07000-02085
O-RING (KIT)
37
01010-31230
BOLT
38
01602-01236
WASHER
39
201-27-11520
SHAFT
40
101-27-11140
GEAR¤ 54 TEETH
41
100-27-11220
BOLT
42
101-27-11351
LOCK
43
01582-01411
NUT
44
06044-00310
BEARING
45
06030-22214
BEARING
46
201-27-11510
COVER
47
07000-02115
O-RING (KIT)
48
01010-31230
BOLT
49
01602-01236
WASHER
50
101-27-11250
RING
51
07000-02145
O-RING (KIT)
52
01010-31025
BOLT
53
01602-01030
WASHER
54
101-27-11181
NUT
55
04020-00514
PIN
|56
101-27-00010
FLOATING SEAL ASS'Y
56
101-27-00050
SEAL RING ASS'Y
|56
RING
57
101-27-00060
O-RING ASS'Y
|57
O-RING
58
201-27-11530
SPROCKET
59
101-27-11211
WASHER
60
04020-00514
PIN
61
101-27-11160
NUT
62
101-27-11171
WASHER
63
101-27-11220
COVER
64
101-27-11230
PACKING (KIT)
65
01010-31025
BOLT
66
01602-01030
WASHER
Выбрано товаров: 77
