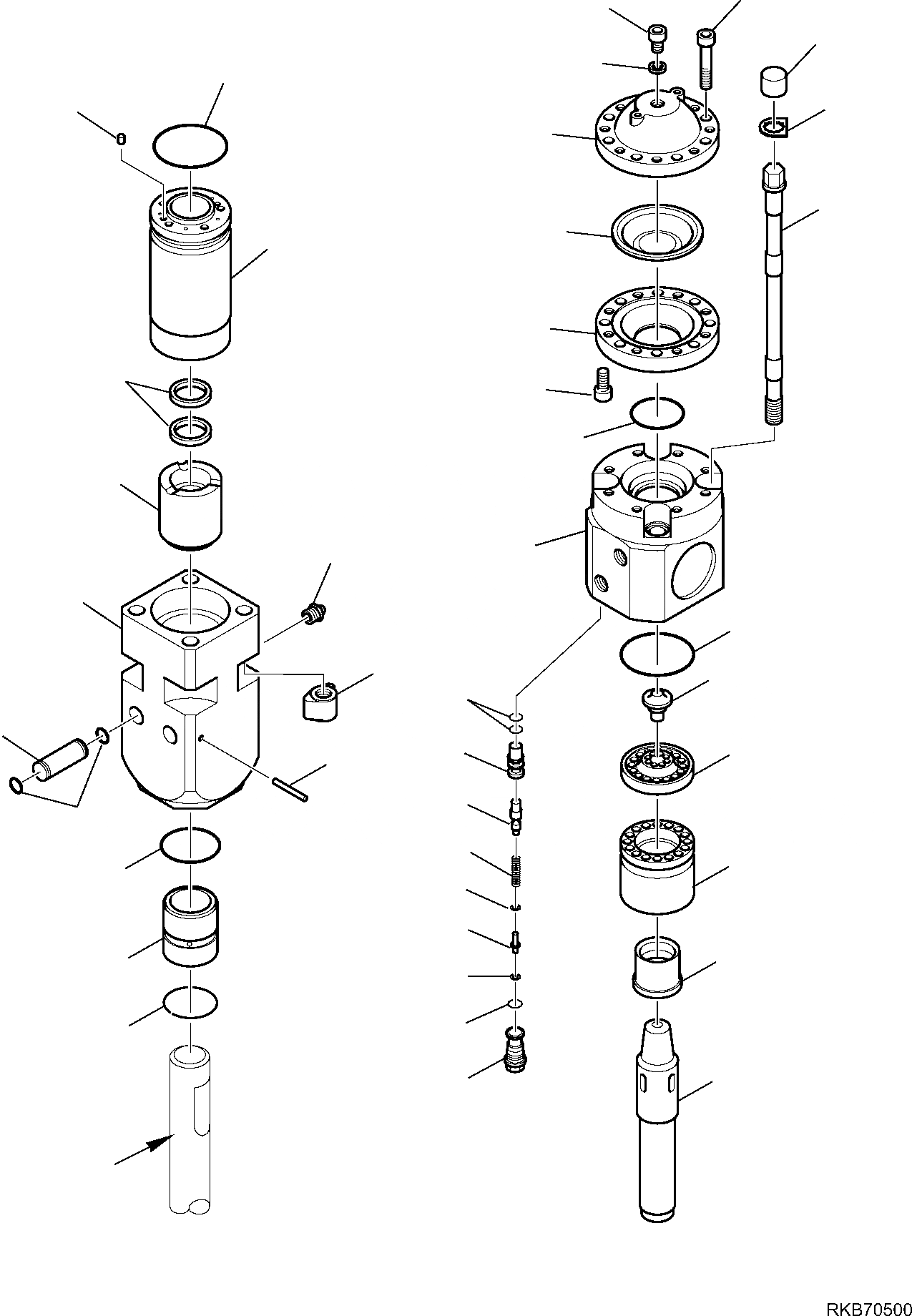

Запчасти Komatsu WB93S-5E0 МОЛОТ HP (/) РАБОЧЕЕ ОБОРУДОВАНИЕ ГИДРАВЛИКА

\0

42N-989-1140

HAMMER, ASSEMBLY

1

22E-970-1630

SCREW

2

22E-970-1640

SEAL

3

42N-989-2380

COVER, UPPER

4

827010262

MEMBRANE

5

42N-989-2370

COVER

6

827010266

SCREW

7

827010265

SCREW

8

827010387

O-RING

9

42N-989-2190

CYLINDER HEAD

10

42N-989-2250

SCREW

11

22E-970-1390

PLATE, STOP

12

42N-989-2270

STOPPER

13

22E-970-1310

O-RING

14

42N-989-2610

DIAPHRAGM

15

42N-989-2230

COVER

16

42N-989-2210

BODY

17

42N-989-2220

CONTROL VALVE

18

42N-989-2320

PLUG

19

42N-989-2360

O-RING

20

42N-989-2350

SHIM

21

42N-989-2340

CYLINDER

22

42N-989-2330

SPRING

23

42N-989-2310

PISTON

24

42N-989-2290

CYLINDER

25

42N-989-2280

O-RING

26

42N-989-2180

PISTON

27

42N-989-2170

O-RING

28

22E-970-1370

PARALLEL PIN

29

42N-989-2160

CYLINDER

30

827010377

GASKET

31

42N-989-2120

BUSHING

32

42N-989-2110

BLOCK

33

42N-989-2260

NUT

34

22E-970-1150

GREASE NIPPLE

35

827010371

SPLIT PIN

36

827010370

RETAINER

37

827010372

O-RING

38

42N-989-2150

O-RING

39

42N-989-2130

SLEEVE

40

42N-989-2140

CIRCLIP
