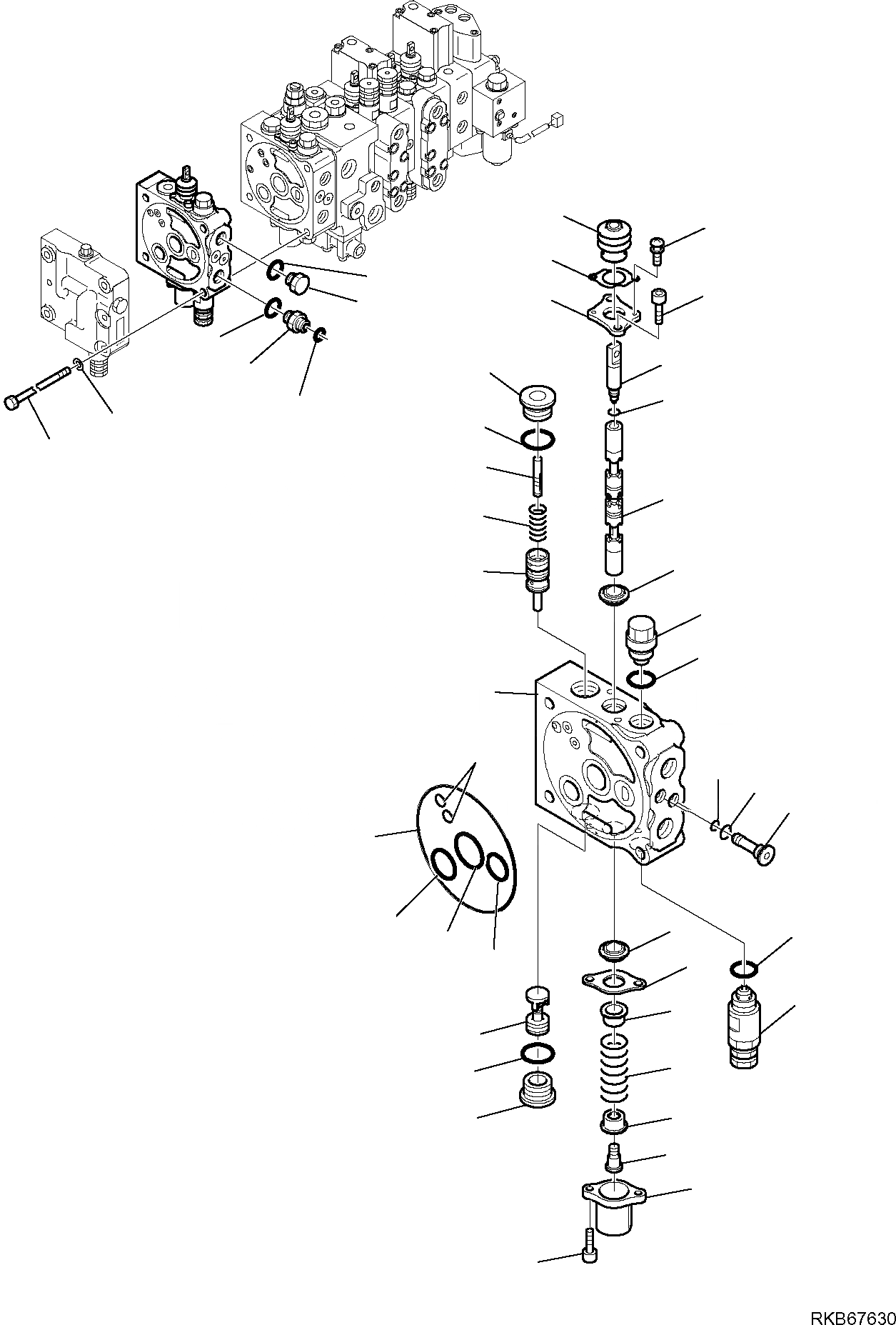

Запчасти Komatsu WB93R-5E0 МОЛОТ ЭЛЕМЕНТ РАБОЧЕЕ ОБОРУДОВАНИЕ ГИДРАВЛИКА

\0

723-21-05701

ELEMENT

1

ELEMENT

2

SPOOL

3

PLUG

4

O-RING

5

709-25-11290

SEAL

6

723-11-37360

PLATE

7

723-26-15810

PLATE

8

723-11-37341

BOOT

9

700-22-11291

RETAINER

10

700-22-11321

PLUG

11

700-22-11311

SPRING

12

723-26-15420

CASE

13

01252-60616

BOLT, HEXAGON SOCKET HEAD

14

01252-60612

BOLT

15

01023-10406

SCREW

16

723-11-37331

PLATE

17

VALVE

18

VALVE

19

PISTON

20

723-26-14140

SPRING

21

723-26-15230

PLUG

22

07002-12434

O-RING

23

723-26-15830

O-RING

24

723-26-15840

O-RING

25

07002-12020

O-RING

26

07002-12120

O-RING

27

07002-11008

O-RING

28

723-26-15330

PLUG

29

07002-11223

O-RING

30

07000-11006

O-RING

31

723-20-80100

VALVE ASSEMBLY, SUCTION

32

07002-12034

O-RING

33

723-10-20500

VALVE, ASSEMBLY

34

07002-12034

O-RING

35

01011-81040

BOLT

36

01643-31032

WASHER

37

22E-62-12550

UNION

38

07002-12034

O-RING

39

02896-11015

O-RING

40

22E-62-12520

PLUG

41

37B-09-88012

O-RING
