Запчасти Komatsu WB93R-5E0 МОЛОТ HP (/) РАБОЧЕЕ ОБОРУДОВАНИЕ ГИДРАВЛИКА

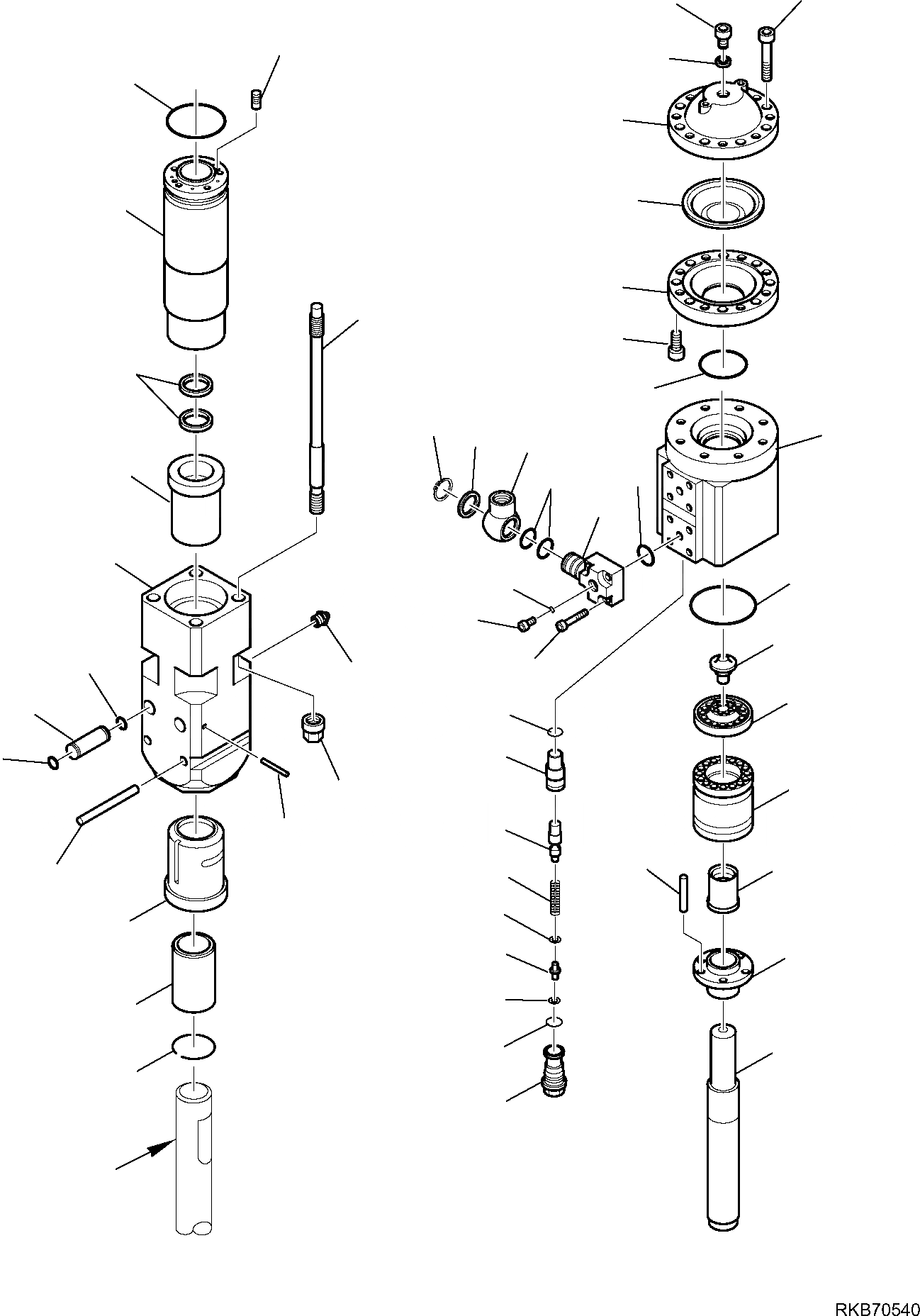

Схема запчастей Komatsu WB93R-5E0 - МОЛОТ HP (/) РАБОЧЕЕ ОБОРУДОВАНИЕ ГИДРАВЛИКА
6
1
35
2
10
3
4
36
5
40
7
37
8
30
29
9
28
32
38
27
26
39
10
34
33
11
44
31
42
12
43
25
24
44
13
41
23
46
15
14
45
22
20
47
21
16
20
48
19
17
49
18
A

Артикул

Название

Примечание

Количество

\0

42N-989-1150

HAMMER, ASSEMBLY

1

22E-970-1630

SCREW

2

22E-970-1640

SEAL

3

42N-989-2380

COVER, UPPER

4

827010262

MEMBRANE

5

42N-989-2370

COVER

6

827010266

SCREW

7

827010265

SCREW

8

827010387

O-RING

9

827010381

CYLINDER HEAD

10

827010383

O-RING

11

42N-989-2610

DIAPHRAGM

12

42N-989-2590

COVER

13

42N-989-2570

BODY

14

42N-989-2580

CONTROL VALVE

15

22E-970-1270

PIN

16

42N-989-2560

REDUCTION

17

42N-989-2550

PISTON

18

22E-970-1580

PLUG

19

22E-970-1560

O-RING

20

22E-970-1550

SHIM

21

42N-989-2640

CYLINDER

22

42N-989-2630

SPRING

23

22E-970-1530

PLUNGER

24

22E-970-1510

CYLINDER

25

22E-970-1520

O-RING

26

22E-970-1410

COUPLING, DELIVERY

27

22E-970-1450

O-RING

28

22E-970-1440

UNION

29

22E-970-1460

WASHER

30

22E-970-1470

RING, SNAP

31

22E-970-1480

SCREW

32

22E-970-1490

O-RING

33

22E-970-1430

PLUG

34

22E-970-1420

WASHER

35

42N-989-2540

VALVE

36

42N-989-2530

CYLINDER

37

827010377

GASKET

38

827010376

BUSHING

39

42N-989-2470

BLOCK

40

827010259

TIE-ROD

41

827010260

NUT

42

22E-970-1150

GREASE NIPPLE

43

827010370

RETAINER

44

827010372

O-RING

45

827010369

SPLIT PIN

46

827010371

SPLIT PIN

47

42N-989-2490

BUSHING

48

42N-989-2510

SLEEVE

49

42N-989-2520

CIRCLIP

Выбрано товаров: 50
