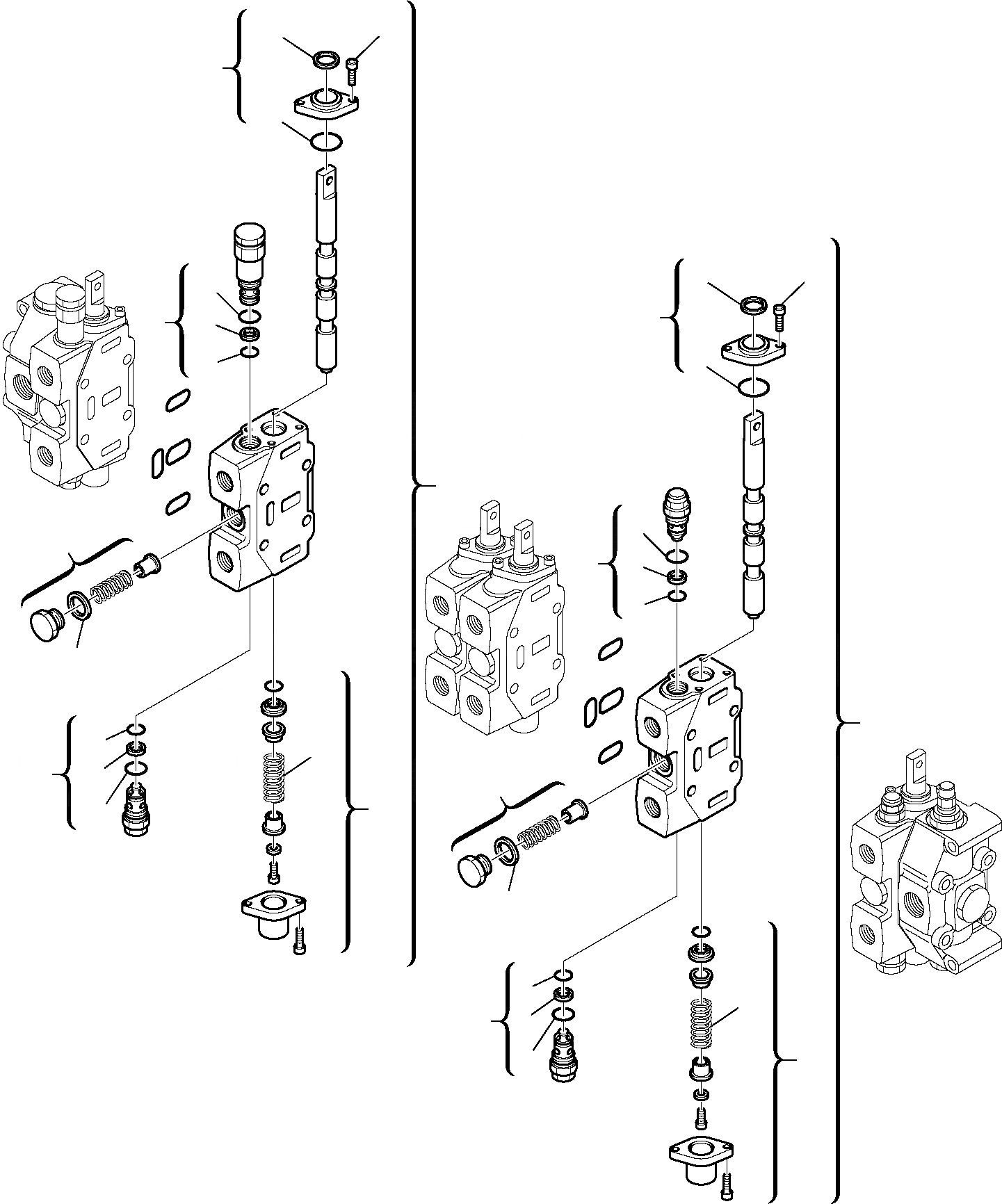

Запчасти Komatsu WB70A-1 КЛАПАН УПРАВЛ-Я ЭКСКАВАТОРОМ (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

\0

844010243

CONTROL VALVE, ASSY.

1

844100414

ELEMENT, ASSY

2

844100381

KIT, FLANGE

3

801104077

SCREW

4

855350024

GASKET

5

855021116

O-RING

6

844100415

VALVE, ASSY.

7

855021017

O-RING

8

855090014

RING, WEAR

9

855051015

O-RING

10

844100382

VALVE

11

844100376

GASKET

12

844100431

SPOOL RETURN UNIT

13

844100396

SPRING

14

844100417

ELEMENT, ASSY

15

844100381

KIT, FLANGE

16

801104077

SCREW

17

855350024

GASKET

18

855021116

O-RING

19

844100413

VALVE, ASSY.

20

855021017

O-RING

21

855090014

RING, WEAR

22

855051015

O-RING

23

844100382

VALVE

24

844100376

GASKET

25

844100401

VALVE, ASSY.

26

855021017

O-RING

27

855090014

RING, WEAR

28

855051015

O-RING

29

844100431

SPOOL RETURN UNIT

30

844100396

SPRING
