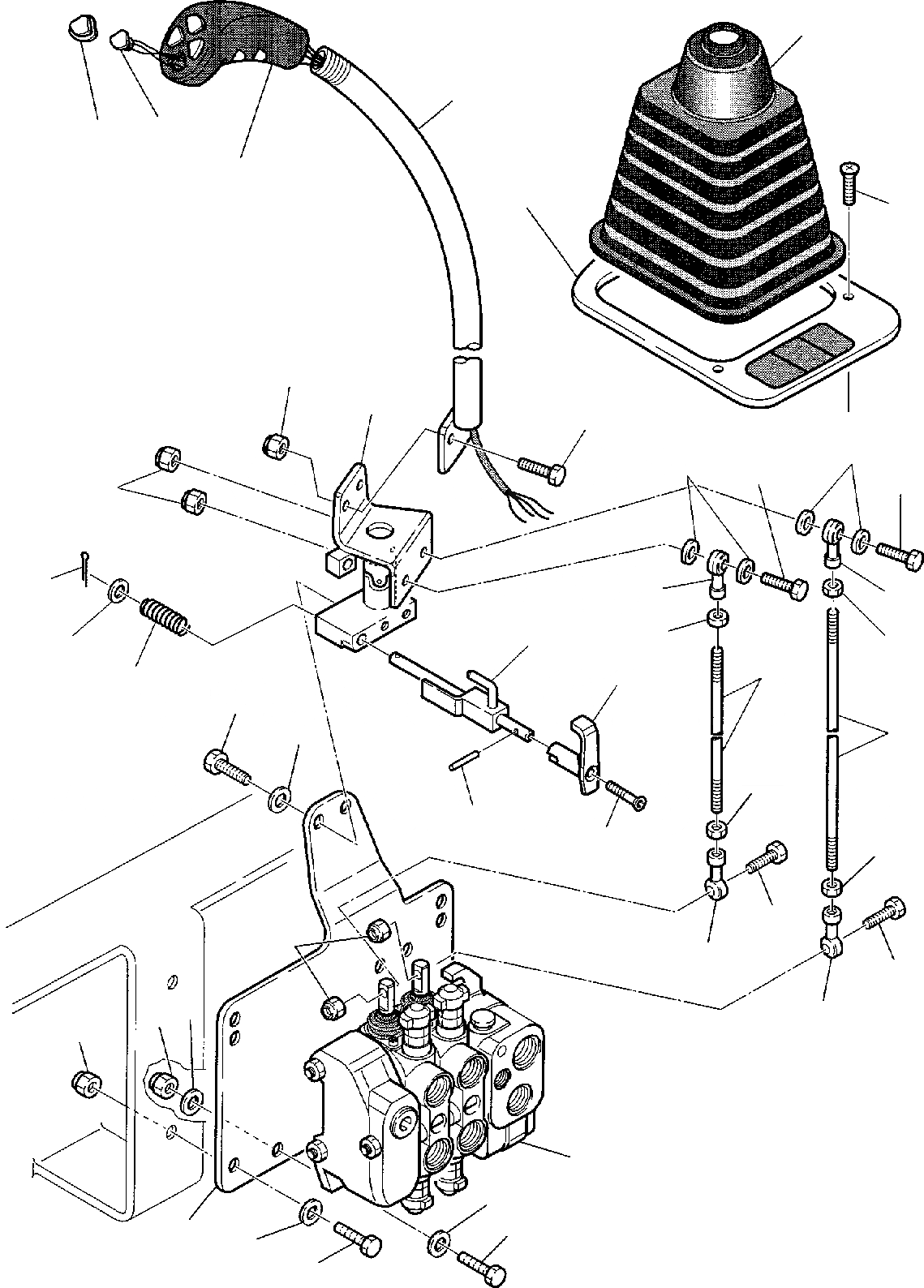

Запчасти Komatsu WB150PS-2 РЫЧАГ УПРАВЛ-Я ПОГРУЗ. КОВШОМ СИСТЕМА УПРАВЛЕНИЯ
33
11
9
10
8
34
21
16
12
15
26
26
25
25
27
29
24
24
30
17
23
30
28
19
22
13
28
14
31
18
20
31
25
27
32
25
3
4
32
7
1
3
2
5
14
6
1
844020239
CONTROL VALVE,ASSY
3
802170002
WASHER
4
801880001
SELF-LOCKING NUT
5
312609622
CONTROL VALVE SUPPORT
7
801880001
SELF-LOCKING NUT
8
312608066
KNOB
9
885081151
MICROSWITCH
10
885241029
COVER
11
312609061
LEVER CONTROL VALVE
12
312609060
JOINT
14
802170002
WASHER
16
801852408
SELF-LOCKING NUT
17
312609054
BLOCK
18
802510191
DOWEL
19
312648680
LEVER
20
801250177
SCREW
21
801250231
BOLT
22
390100020
SPRING
23
802170003
WASHER
24
805850210
JOINT
26
312209604
SPACER
27
801852210
SELF-LOCKING NUT
28
312609625
CONTROL TIE
29
802610057
COTTER
31
500611661
NUT (L.H.)
32
805850211
JOINT (L.H.)
33
816212396
BOOT
34
312648669
PRESSURE -BOOT
