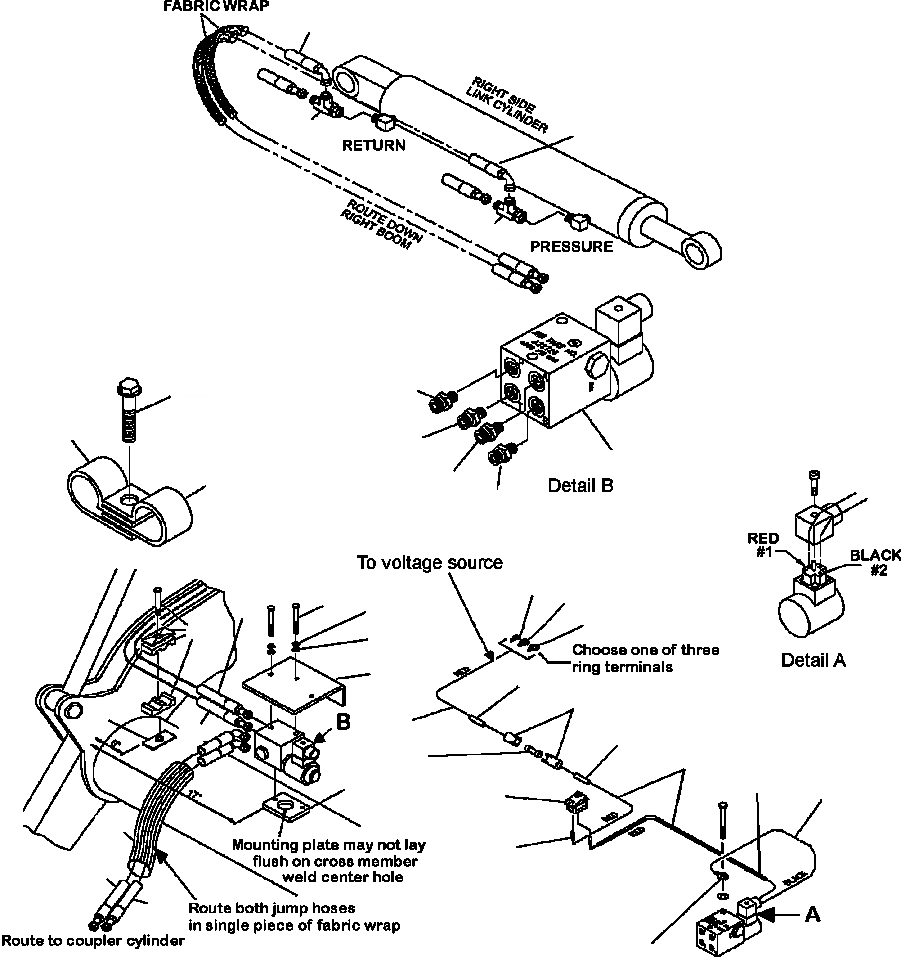

Запчасти Komatsu WB146-5 T-A ПОГРУЗ. РУКОЯТЬ ПЕРЕДН. ГИДРАВЛ БЫСТРОСЪЕМН. МЕХ-М КРЕПЛЕНИЕ КОМПЛЕКТ РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

2938-70-3450

HYDRAULIC COUPLER KIT

1

A22724-12

VALVE, 12V SOLENOID

2

A36527

COVER, VALVE

3

A23904

BRACKET, VALVE MOUNTING

4

104025200300

BOLT

5

158025000000

FLATWASHER

6

162025000000

LOCKWASHER

7

46036-09

O-RING, STR THREAD ADAPTER

8

46106-03

CLAMP, HOSE

9

205100150016

BOLT, FLANGE

10

46052-03

NUT, SWIVEL RUN TEE

11

550038-118

HOSE, RETURN (W/30 INCH FABRIC WRAP)

12

550038-149

HOSE, PRESSURE (W/30 INCH FABRIC WRAP)

13

46193-04

CLAMP ASSEMBLY, HOSE

14

46172-02

CLAMP, WELD PLATE

N/I

A31119

TIES, BLACK PLASTIC

15

540019-35

HOSE ASSEMBLY, JUMP

16

680006-25

WRAP, FABRIC JUMP HOSE

17

EW7001-250

WIRE, 16 GAUGE RED (250 INCH)

18

EW7007-12

WIRE, 16 GAUGE BLACK (12 INCH)

19

EW1401-250

LOOM, WIRE (250 INCH)

20

A44481

SWITCH

21

ET0002-03

TERMINAL, RING

22

ET0002-05

TERMINAL, RING

23

ET0002-06

TERMINAL, RING

24

ET0017-02

CONNECTOR

25

A50158

TERMINAL, FEMALE INSULATED

26

EM00003

FUSE, 5 AMP SLO-BLO

27

EM00004

HOLDER, FUSE

N/I

A23753

HANDBOOK, OPERATORS
