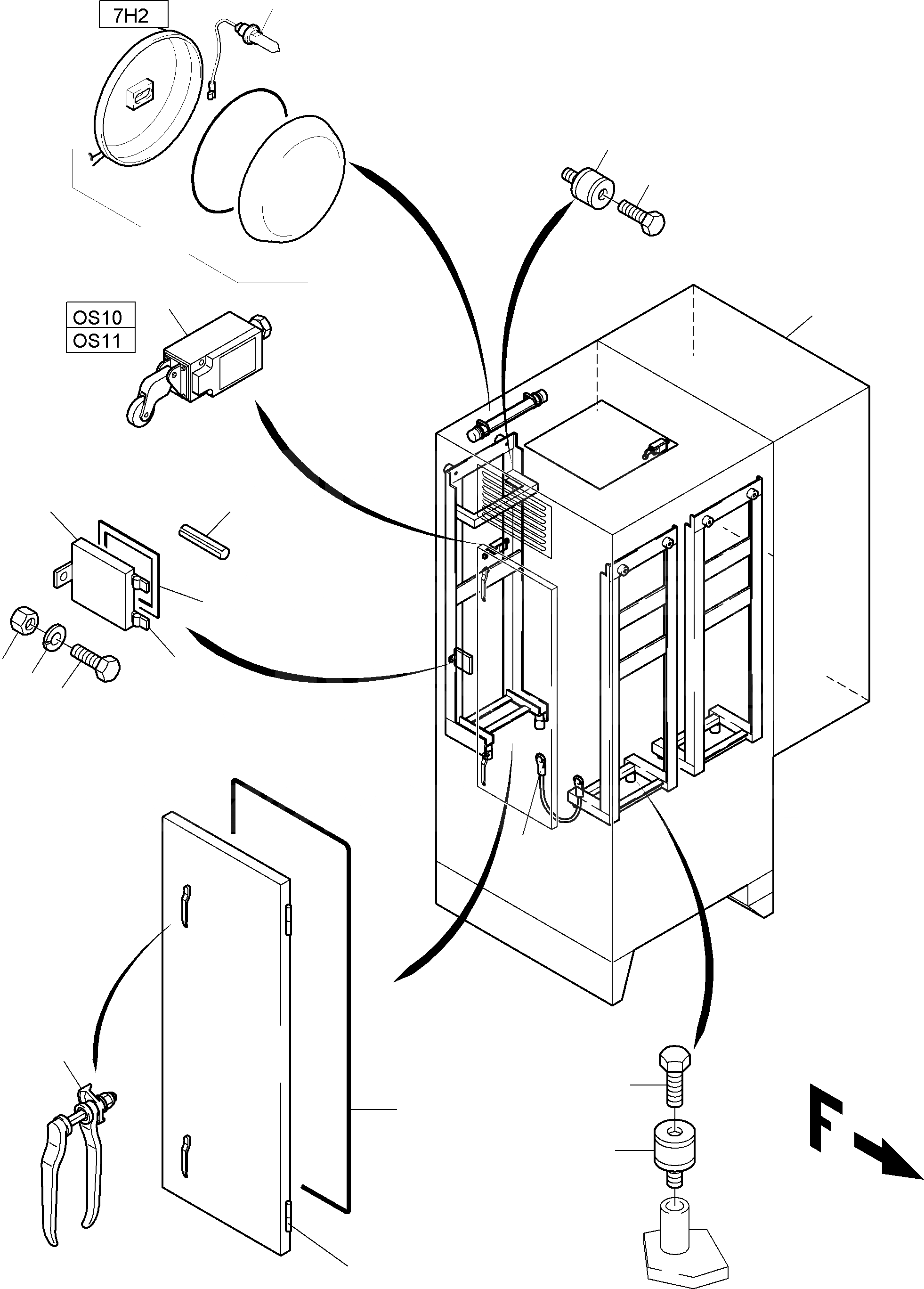

Запчасти Komatsu WB140-2N ПЕРЕКЛЮЧАТЕЛЬ КАБИНАET ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ

01

926 563 40

Switch cabinet assy.

02

510 729 98

Resilient sleeve

03

507 025 98

Nut

04

081 323 40

Hinge

05

463 700 40

Seal 8x70x70

06

457 799 40

Bolt

07

693 151

Silencer

08

445 211 40

Cover

10

440 388 40

Profiled joint

11

440 387 40

Fastener

12

307 775 99

Bolt

13

940 907 40

Fastener for ser.-no. 12054

14

308 426 99

Bolt

15

794 692 73

AC-dry transformer

16

332 332 99

Nut

17

345 176 99

Dowel pin

18

346 510 99

Lock washer

19

696 867 73

Silencer

20

795 017 73

Break switch

21

795 018 73

Shift-lever

30

795 024 73

Fuse 25 A

35

694 195

Insulator

36

795 021 73

Potential transformer

37

795 020 73

Current transformer

38

761 651 73

Fuse base

39

769 388 73

Fuse 315 A

40

795 019 73

Vacuum contactor

42

696 375 73

Clamp PG 29

43

600 207 99

Cable shoe Ш 12 - 102

44

600 223 99

Cable shoe Ш 12 - 502

45

600 208 99

Cable shoe Ш 10 - 702

46

696 366 73

Silicon cable 102

47

696 892 73

Silicon cable 1202

48

696 373 73

Plastic socket PG 29

49

696 371 73

Plastic pipe PG 29

50

794 182 73

Excess-voltage dicharger

51

795 023 73

Thermostat

52

795 022 73

Heater 1000 W

62

696 251 73

Temperatur sensor

63

502 709 98

Assembly rail NS 35/7,5

64

692 717

Clamp

65

906 630 40

Protective wire clip

66

906 612 40

Clamp

67

906 792 40

Protective wire clip

68

906 768 40

Clamp

69

634 009 40

Fluorescent lamp

70

507 383 99

Halogen lamp

71

765 736 73

Sensor
