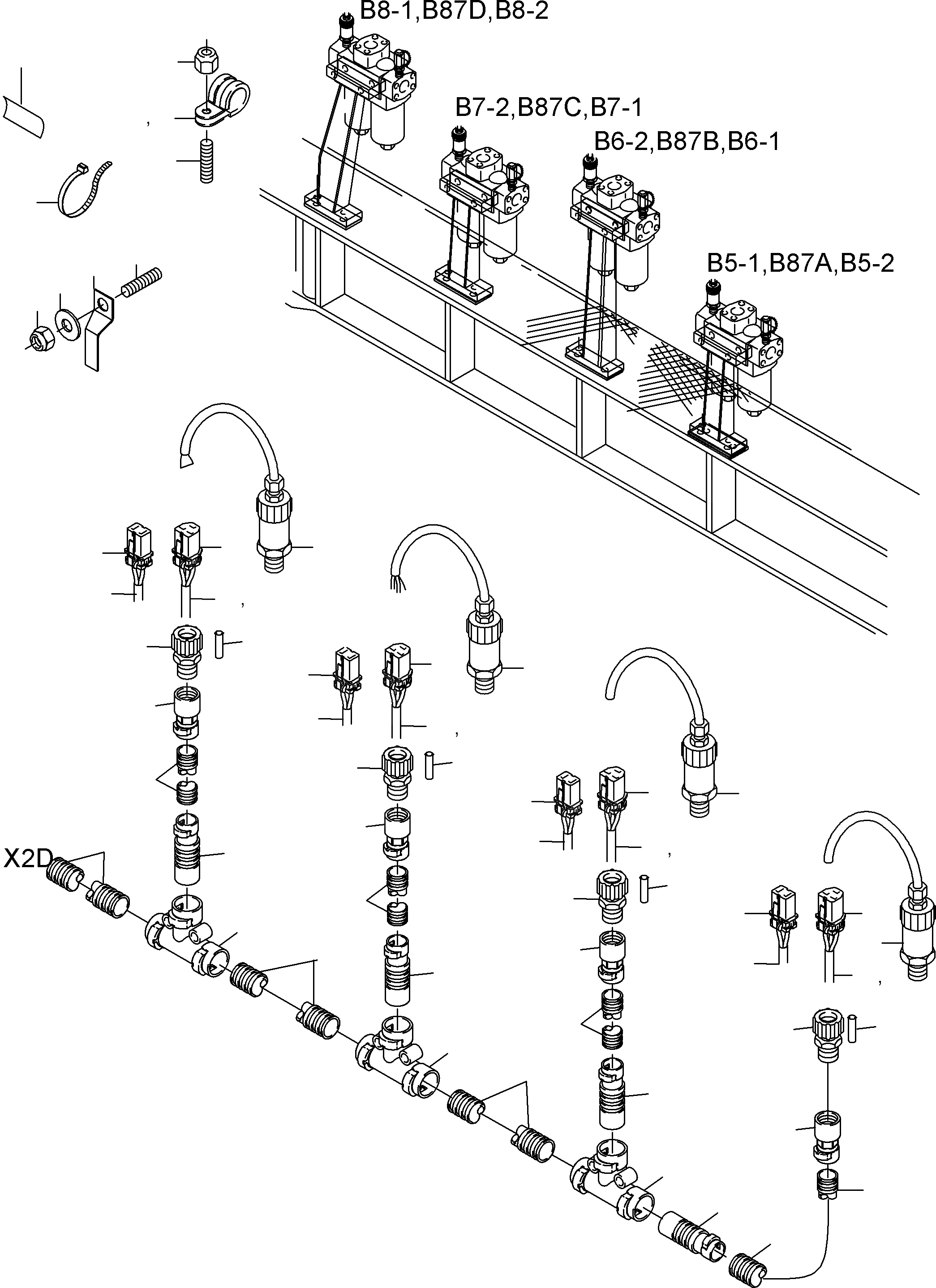

Запчасти Komatsu WB140-2N КАБЕЛЬS - H.P.-ФИЛЬТР. ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ

01

907 213 40

Cable protection hose DN 29

03

907 179 40

Cable protection hose DN 17

04

906 079 40

T-Distributor DN 29

05

655 635 40

Pipe adapter DN 29/17

06

655 848 40

Fitting DN 17

07

655 808 40

Fitting PG 16

08

655 804 40

Cable union PG 16

11

940 461 40

Insulating tube B5x0,6

12

940 465 40

Insulating tube B10x0,7

13

891 031 40

Plug assy. 2-pole

14

891 032 40

Plug assy. 3-pole

15

940 169 40

Cable 4x1

16

515 213 40

Cable 1,0

17

896 520 40

End pin

18

932 899 40

Pressure measuring transducer 500 bar

19

946 983 40

Harness h.p. filter

20

256 514 40

Plate

21

056 292 40

Cable strap

22

003 670 79

Clip

23

510 210 98

Thread pin

24

350 762 99

Washer

25

507 025 98

Nut

26

006 303 98

Clamp 22/15

27

006 304 98

Clamp 20/25

28

935 490 40

Cover

29

935 491 40

Cover

30

935 492 40

Cover

31

907 854 40

Thread pin

32

340 467 99

Washer

33

507 037 98

Nut
