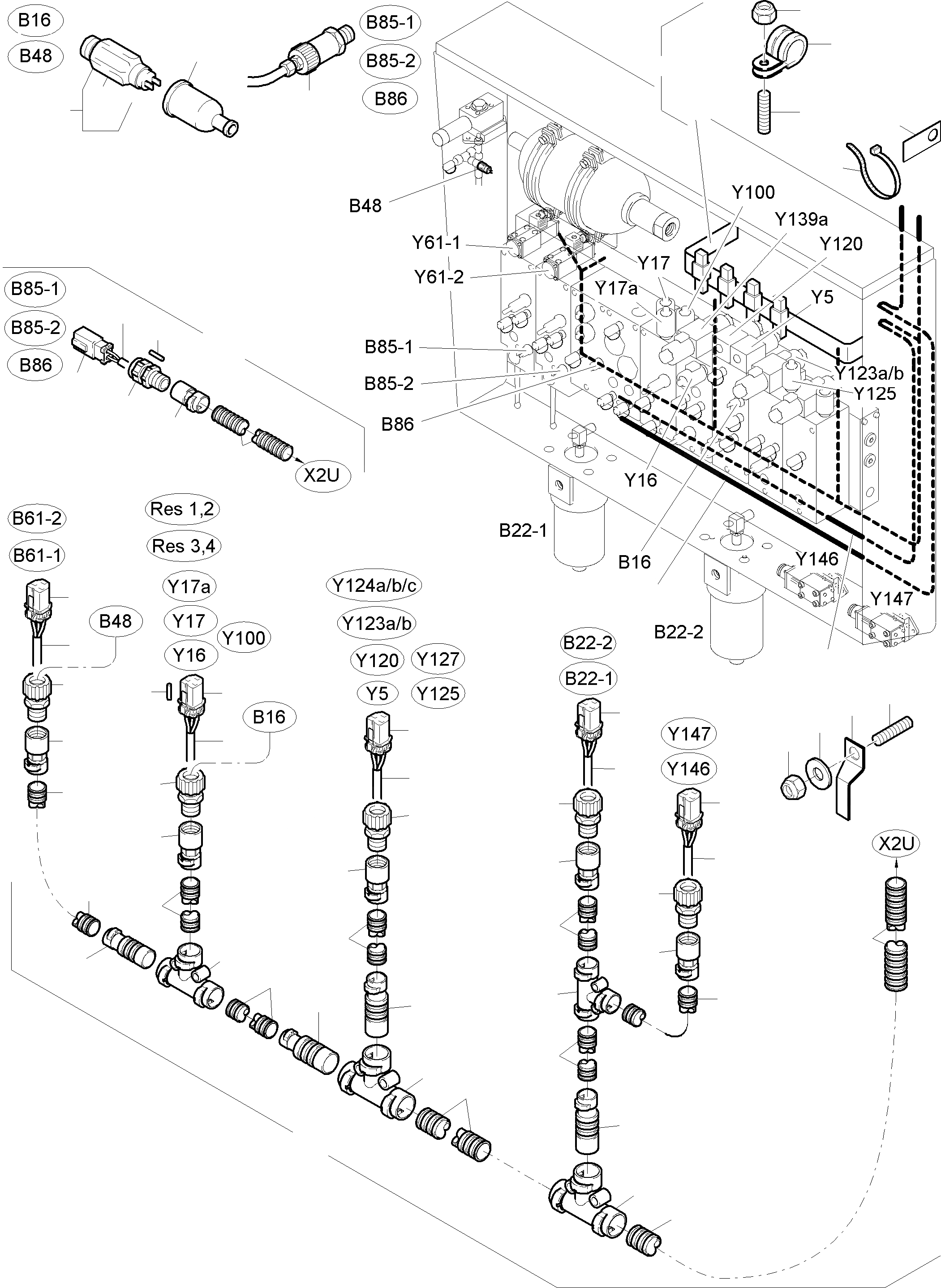

Запчасти Komatsu WB140-2N КАБЕЛЬS - CARTRIDGE БЛОК ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ

01

932 898 40

Pressure measuring transducer 60 bar

02

592 669 40

Pressure switch 24 bar

03

906 922 40

Protection cap

04

907 213 40

Cable protection hose DN 29

05

906 079 40

T-Distributor DN 29

06

655 810 40

Pipe adapter DN 29/12

07

907 178 40

Cable protection hose DN 12

08

907 692 40

Fitting

09

907 703 40

Cable union

10

940 461 40

Insulating tube B5x0,6

11

795 132 73

Plug assy.

12

655 635 40

Pipe adapter DN 29/17

13

907 179 40

Cable protection hose DN 17

14

940 452 40

Fitting M 17 / M 25

15

907 710 40

Cable union

16

256 514 40

Plate

17

907 180 40

Cable protection hose DN 23

18

906 420 40

T-Distributor DN 12

19

323 961 40

Sleeve 6,3x0,8

20

896 520 40

End pin

21

940 520 40

Fitting M 20 / DN 12

22

907 708 40

Cable union

23

056 070 40

Cable sleeve 1,0-1,5

24

655 629 40

T-Distributor DN 17

25

655 633 40

Pipe adapter DN 17/12

26

907 948 40

Fitting M 25 / DN 23

27

907 709 40

Cable union

28

795 134 73

Plug assy.

29

940 169 40

Cable 4x1qmm

30

515 213 40

Cable 1.0 1,0 qmm

31

944 602 40

Harness - cartridge block

32

944 603 40

Harness - pressure transducer VPB

33

592 669 40

Pressure switch 24 bar assy

34

910 017 40

Holding device

35

003 670 79

Clip

36

510 210 98

Thread pin

37

350 762 99

Washer

38

507 025 98

Nut

39

910 016 40

Holding device assy.

40

006 301 98

Clamp 12/15

41

006 304 98

Clamp 20/25

42

510 363 98

Clamp 29/15

43

907 535 40

Seal

44

056 292 40

Cable strap
