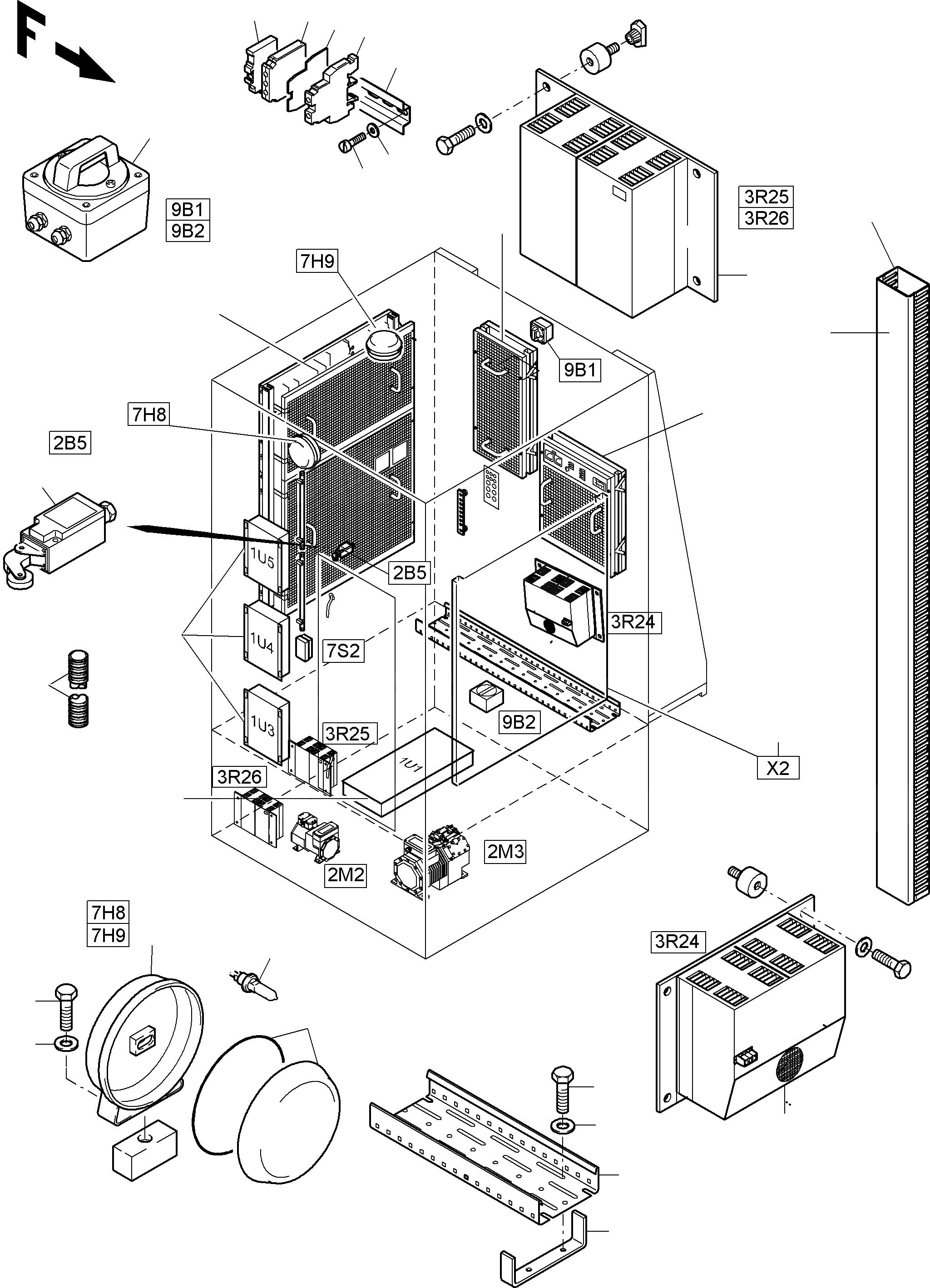

Запчасти Komatsu WB140-2N ELECTIC - КАБИНА СУППОРТ ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ

04

795 022 73

Heater 3R25 3R26

05

896 781 40

Battery charger 1U2 1U3 1U4

06

795 385 73

AC-converter

07

440 373 40

Switch 7S2

08

634 009 40

Fluorescent lamp 7H8 7H9

09

507 383 99

Halogen lamp

11

894 583 40

Temperature sensor assy. with plug

12

894 576 40

Temperature sensor assy.

13

907 651 40

Temperature sensor

14

907 697 40

Temperature sensor with cable

15

796 010 73

Heater 3R24

16

055 140 40

Cable lug 0,5-1,0

17

907 653 40

Insulating tube

18

795 495 73

Plug

19

795 497 73

Plug

20

621 748 40

Cable channel 80150

21

621 749 40

Cable channel 80200

22

621 750 40

Cover 80150

23

621 751 40

Cover 80200

24

907 214 40

Cable protection hose DN 36

25

907 213 40

Cable protection hose DN 29

26

907 180 40

Cable protection hose DN 23

27

907 179 40

Cable protection hose DN 17

28

907 177 40

Cable protection hose DN 10

30

515 213 40

Cable 1 qmm

31

946 987 40

Harness - outer temperature

32

507 025 98

Nut

33

006 301 98

Clamp 12/15

34

510 210 98

Thread pin

35

006 304 98

Clamp 20/25

36

600 812 99

Reducing HPG13,5-PG11

37

356 265 40

Clamp

38

490 372 40

Protective wire clip

39

356 266 40

Cover plate

40

356 264 40

Twin terminal

41

505 940 99

Assembly rail

42

320 819 99

Screw

43

346 499 99

Lock washer

44

906 414 40

Cable channel

45

919 441 40

Retainer

46

307 727 99

Bolt

47

350 762 99

Washer

48

343 004 99

Washer

49

307 425 99

Bolt

51

302 030 99

Bolt

52

346 499 99

Lock washer

53

510 363 98

Clamp 29/15

56

896 782 40

Fuse

57

793 246 73

Fuse 16 A

58

655 622 40

Cable union DN 12

59

600 813 99

Reducing HPG16-PG13,5

60

655 805 40

Fitting PG 9

61

655 799 40

Cable union PG 9

62

896 521 40

End pin

63

515 214 40

Cable 2,5

64

056 070 40

Cable sleeve 1,0-1,5

65

891 051 40

Plug assy.

66

940 169 40

Cable 4x1

67

655 798 40

Cable union PG 9

68

896 520 40

End pin

69

940 462 40

Insulating tube B 6x0,6

70

056 071 40

Cable sleeve 2,5

71

907 178 40

Cable protection hose DN 12

72

946 985 40

Harness - horn

73

256 514 40

Plate

76

946 986 40

Harness - blower

77

906 759 40

Rubber clamp

78

906 760 40

Rubber clamp

79

906 761 40

Rubber clamp

80

906 758 40

Key seal

81

906 762 40

Shim

83

932 947 40

Plug assy.

84

940 746 40

Cable 1,0x0,5

85

940 468 40

Insulating tube 16x1

86

946 307 40

Harness - plug RC 4

87

907 877 40

Cable 2x0,75

88

907 641 40

Wire end ferrule

89

056 070 40

Cable sleeve

93

910 023 40

Plate to fig-no. 07

94

055 112 40

Cable lug, yellow

95

055 108 40

Cable lug, blue

96

655 621 40

Cable union DN 10

97

765 736 73

Sensor 2B5

98

696 251 73

Temperture sensor with housing
