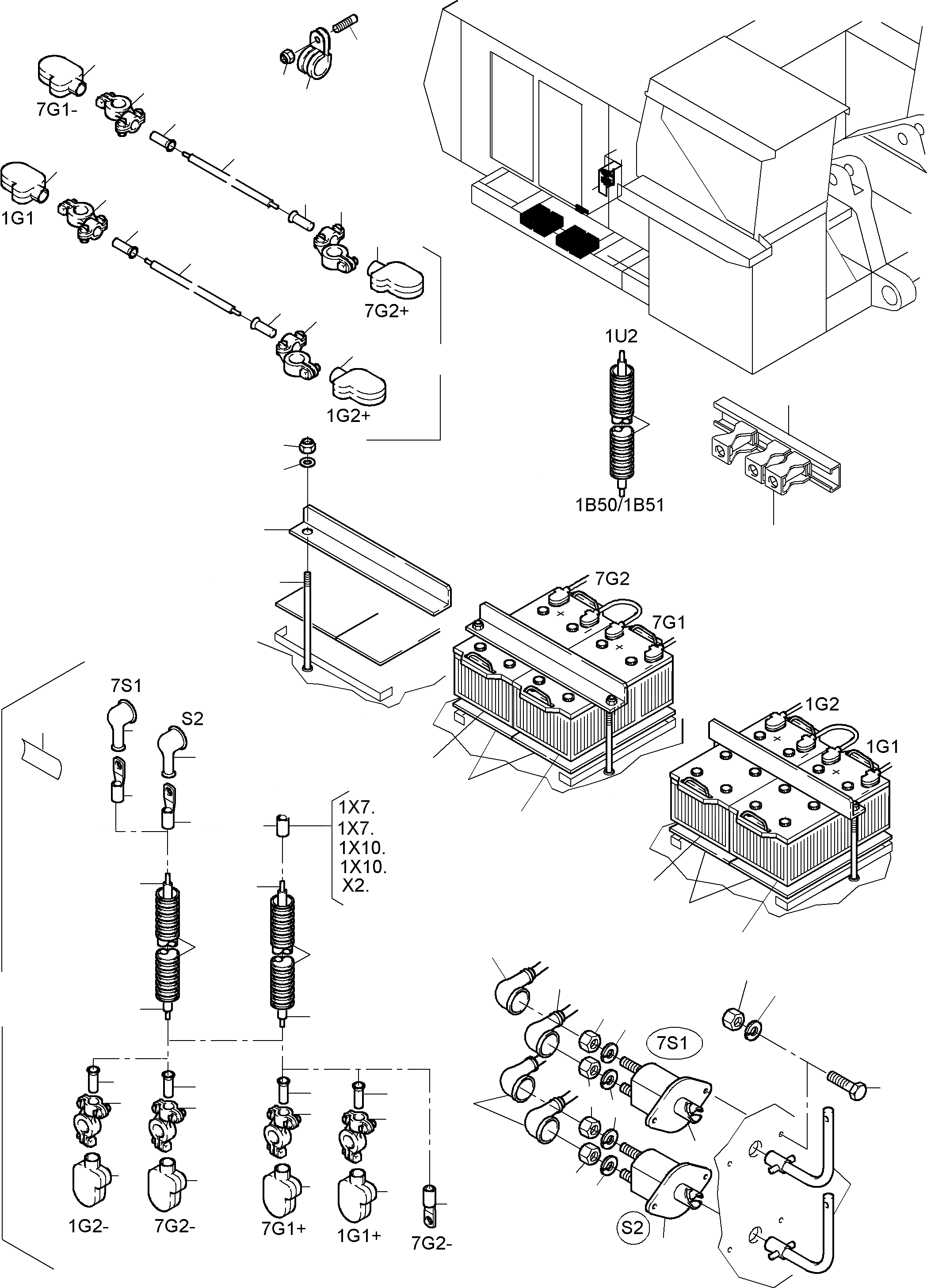

Запчасти Komatsu WB140-2N BATTERIES С КАБИНОЙLES ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ

01

906 504 40

Battery 12V 200AH

02

159 984 40

Battery switch

03

966 673

Gear shift-lever

04

308 534 99

Bolt

05

350 762 99

Washer

06

507 025 98

Nut

07

346 500 99

Lock washer

08

332 132 99

Nut

09

498 897 40

Rail

10

358 273 40

Series clamping

11

887 009 40

Angle

12

508 838 40

Moulding material 20x270x480

13

308 431 99

Bolt

14

340 652 99

Washer

15

334 600 99

Nut

16

946 991 40

Harness - battery box

17

515 214 40

Cable 2,5

18

906 023 40

Cable 25,0 bl

19

907 553 40

Cable 16,0 bl

20

256 514 40

Plate

21

906 670 40

Wire end ferrule 25mm

22

269 078 40

Wire end ferrule 16/28,7

23

056 071 40

Cable sleeve 2,5

24

907 511 40

Cable lug 2,5

25

906 940 40

Pole, plus

26

906 941 40

Pole, minus

27

906 942 40

Pole end plate, red

28

906 943 40

Pole end plate, black

29

056 076 40

Protection cap

30

907 213 40

Cable protection hose DN29

31

654 422 40

Cable lug 25/10

32

654 372 40

Cable lug 16

33

654 423 40

Cable lug 25/12

34

600 259 99

Cable lug 12-16

35

510 363 98

Clamp 29/15

36

510 210 98

Thread pin

37

006 301 98

Clamp 12/15

38

006 302 98

Clamp 15/15

39

946 993 40

Harness - batteries - battery charger
