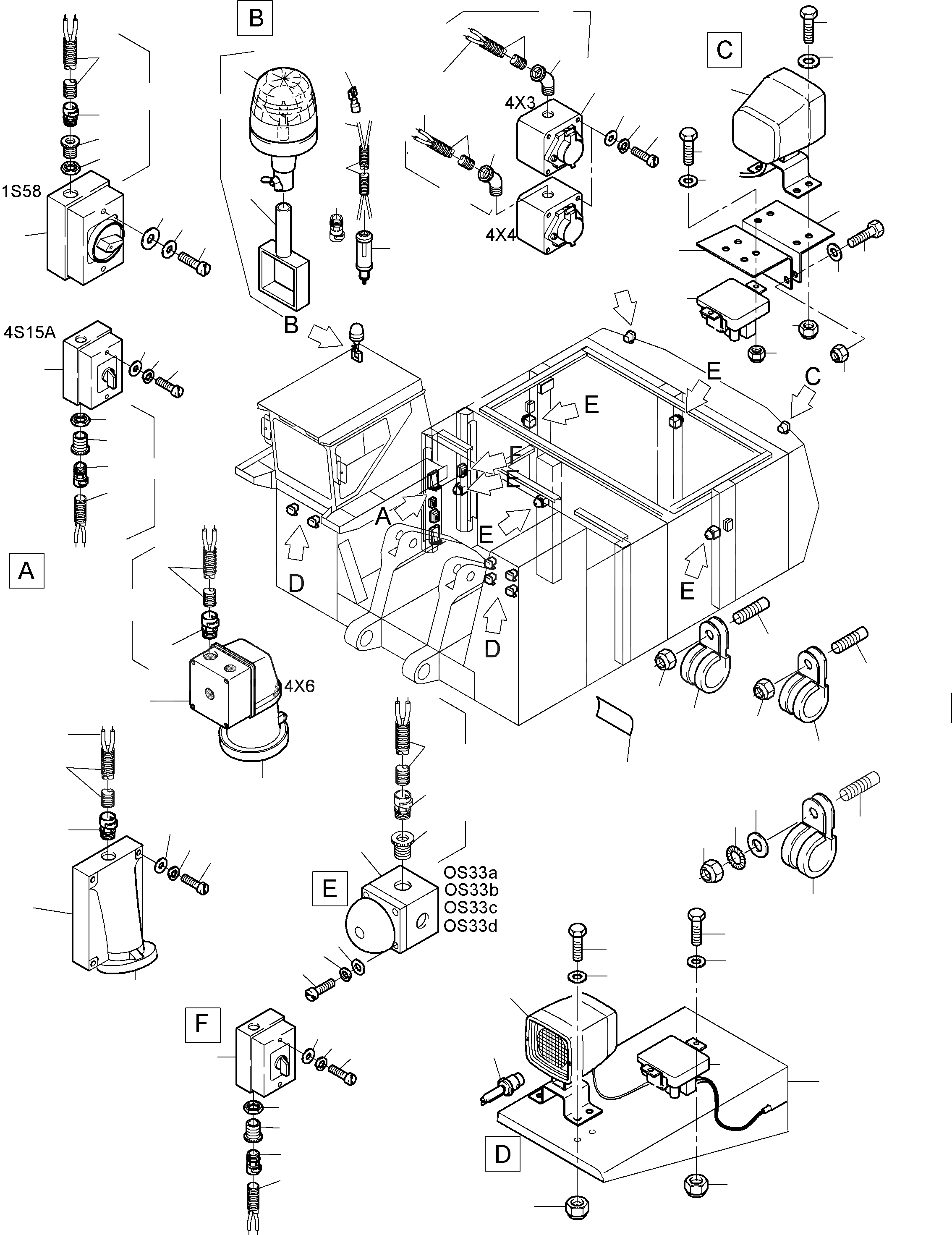

Запчасти Komatsu WB140-2N LIGHTING ОБОРУД-Е ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ
№
Артикул
Название
Примечание
Количество
01
932 687 40
Spread beam headlamp
02
340 459 40
Washer
03
334 649 99
Nut
04
307 665 99
Bolt
06
945 875 40
Lamp bracket
07
945 876 40
Lamp bracket
08
945 874 40
Plate
09
945 873 40
Plate
10
440 373 40
Camswitch
11
621 314 40
Safety cut off
13
320 978 99
Screw
14
340 904 99
Washer
15
600 790 99
Reducing 11-9
16
907 177 40
Protecting hose DN 10
17
898 629 40
Rotaflare light yellow assy.
18
898 612 40
Retainer
19
896 497 40
Rotaflare light 24 yellow
20
515 213 40
Cable 1,0
21
180 322 40
Plug
22
323 960 40
Tab
23
655 621 40
Cable union DN 10
24
307 806 99
Bolt
25
517 118 98
Lock washer
26
334 600 99
Nut
27
307 752 99
Bolt
28
517 121 98
Lock washer
29
056 071 40
Cable sleeve 2,5
31
794 517 73
Lamp 24V /35W
32
056 070 40
Cable sleeve 1,0-1,5
33
515 213 40
Cable 1,0
34
440 461 40
Wall socket
35
346 508 99
Lock washer
36
321 016 99
Bolt
37
340 506 99
Washer
38
256 514 40
Plate
39
346 499 99
Lock washer
40
919 439 40
Retainer
41
307 727 99
Bolt
42
340 465 99
Washer
43
321 010 99
Screw
44
340 461 99
Washer
45
635 143 40
Emergency switch-off
46
346 509 99
Lock washer
47
145 831 40
Clamp 20/15
48
510 210 98
Thread pin
49
507 025 98
Nut
50
006 301 98
Clamp 12/15
51
906 802 40
Cable channel
52
895 507 40
Thread plate
53
006 306 98
Clamp 30/25
54
634 009 40
Spotlight
55
507 383 99
Fluorescent lamp
56
769 155 73
Seal
57
769 156 73
Pane, white
58
509 875 98
Thread pin
59
334 599 99
Nut
60
440 462 40
Plug
61
318 914 99
Screw
62
343 854 99
Lock washer
63
517 122 98
Lock washer
64
350 762 99
Washer
65
910 704 40
Retainer
66
916 657 40
Retainer
67
906 413 40
Cable channel
68
919 437 40
Retainer
69
940 849 40
Cable 5x 16,0
70
940 510 40
Cable 3x2,5
71
269 078 40
Wire end ferrule
72
907 213 40
Cable protection hose DN 29
73
655 697 40
Cablцe union DN 29
74
634 736 40
Cable 2,5sw
75
502 826 98
Cable nut APG 11
76
896 410 40
Cable protection hose DN 10-45
77
907 994 40
Cable protection hose DN 10-90
78
907 178 40
Cable protection hose DN 12
79
940 859 40
Wall socket
80
940 860 40
Plug
81
592 188 40
Socket
82
946 967 40
Harness - socket 4X3
83
946 968 40
Harness - socket 4X4
84
551 362 40
Camswitch
85
935 486 40
Cover
86
935 487 40
Cover
87
935 488 40
Cover
88
907 854 40
Thread pin
89
507 037 98
Nut
90
340 467 99
Washer
91
907 181 40
Cable protection hose DN 48
92
940 864 40
Cable 5x50
93
907 995 40
Cablцe union DN 48
95
946 965 40
Harness - 4S15A-NS
96
946 966 40
Harness - safety switch 1S58
99
946 969 40
Harness - socket 4X6
100
946 972 40
Harness - emergency push buttom OS33A
101
946 973 40
Harness - emergency push buttom OS33B
102
946 974 40
Harness - emergency push buttom OS33C
103
946 975 40
Harness - emergency push buttom OS33D
Выбрано товаров: 98
