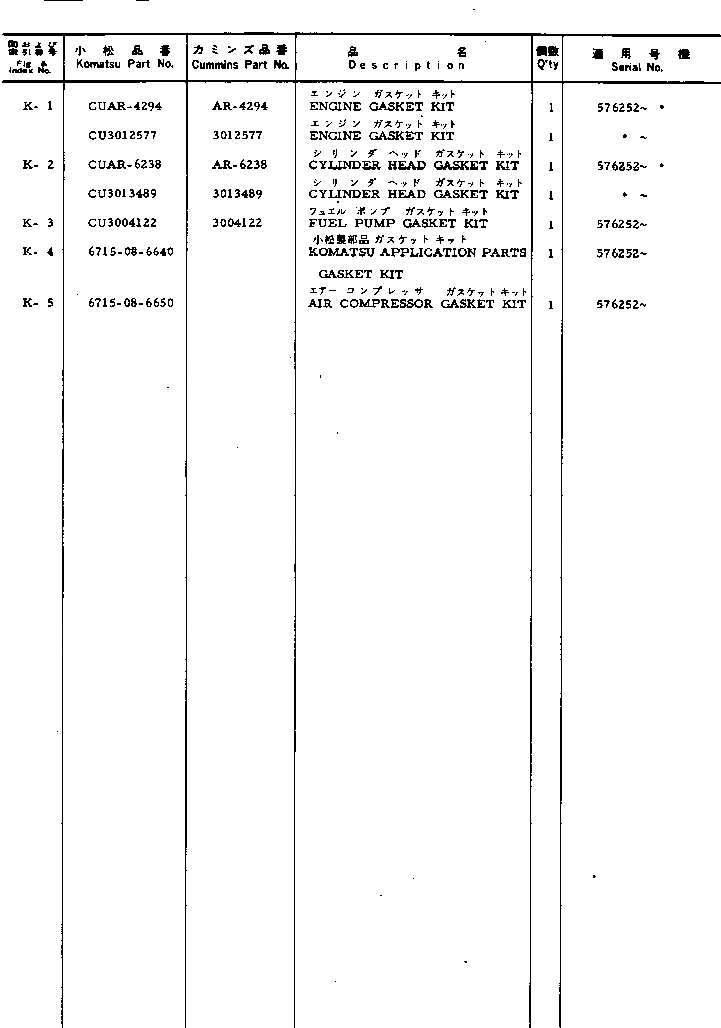

Запчасти Komatsu VT-1710-1 РЕМ. КОМПЛЕКТЫ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

CUAR-4294

GASKET KIT,ENGINE

SN: 576252-UP

1шт.

1

02891-02016

O-RING

SN: 576252-UP

4шт.

1

CU3007441

O-RING,PISTON COOLING NOZZLE

SN: 576252-UP

12шт.

1

CU3002562

O-RING,REAR COVER

SN: 576252-UP

1шт.

1

CU181243

GASKET,REAR COVER PLATE

SN: 576252-UP

1шт.

1

CU181085

GASKET,GEAR HOUSING

SN: 576252-UP

1шт.

1

CU215705

PACKING

SN: 576252-UP

2шт.

1

CU3003887

SEAL,FRONT

SN: 576252-UP

1шт.

1

CU300975

SEAL,FUEL DRIVE

SN: 576252-UP

1шт.

1

CU181187

GASKET,GEAR COVER

SN: 576252-UP

1шт.

1

6610-81-4150

GASKET,OIL PAN AND COOLER

SN: 576252-UP

2шт.

1

CU66998

SEAL,RUBBER, OIL PAN

SN: 576252-UP

1шт.

1

CU301057

O-RING,OIL TUBE

SN: .-UP

6шт.

1

0

O-RING,OIL TUBE

SN: 576252-.

6шт.

1

CU186714

RING,OIL TRANSFER CONNECTION

SN: 576252-UP

1шт.

1

CU181256

GASKET,OIL PAN

SN: 576252-UP

1шт.

1

CU64565

GASKET,CAMSHAFT COVER

SN: 576252-UP

2шт.

1

CU181415

GASKET,HAND HOLE COVER

SN: 576252-UP

1шт.

1

CU3002734

GASKET,HAND HOLE COVER

SN: 576252-UP

5шт.

1

CU43567

GASKET,WATER HEAD COVER

SN: 576252-UP

1шт.

1

CU43569

GASKET,WATER HEAD COVER

SN: 576252-UP

1шт.

1

CU196337

GASKET,WATER INLET CONNECTION

SN: 576252-UP

1шт.

1

CU180760

GASKET,LUBRICATING OIL PUMP COVER

SN: 576252-UP

1шт.

1

CU172723

GASKET,OIL COOLER COVER

SN: 576252-UP

2шт.

1

6715-52-5460

GASKET,OIL FILTER AND COOLER

SN: 576252-UP

2шт.

1

CU3001562

GASKET,WATER CONNECTION

SN: 576252-830881

1шт.

1

CU122981

O-RING,WATER INLET CONNECTION

SN: 576252-UP

4шт.

1

CU200808

GASKET,ACCESSORY DRIVE

SN: 576252-UP

1шт.

1

CU113914

GASKET,WATER OUTLET CONNECTION

SN: 576252-UP

1шт.

1

CU69654

GASKET,WATER INLET

SN: 576252-713976

1шт.

1

CU129527

GASKET,GENERATOR DRIVE

SN: 576252-UP

1шт.

2

CUAR-6238

GASKET KIT,CYLINDER HEAD

SN: 576252-UP

1шт.

2

CU170742

GASKET,WATER HEADER COVER

SN: 576252-UP

8шт.

2

CUBM-98021

GASKET ASS'Y,CYLINDER HEAD

SN: 576252-UP

4шт.

2

CU216056

GASKET,ROCKER HOUSING

SN: 576252-UP

4шт.

2

CU201978

GASKET,ROCKER HOUSING COVER

SN: 576252-UP

4шт.

2

CU142324

GASKET,INTAKE MANIFOLD

SN: 576252-UP

8шт.

2

CU216486

GASKET,AFTER COOLER

SN: 576252-UP

2шт.

2

CU3008024

GASKET,WATER CONNECTION TUBE

SN: 576252-UP

2шт.

2

CU200258

GASKET,INTAKE MANIFOLD

SN: 576252-UP

2шт.

2

CU188221

GASKET,END COVER

SN: 576252-UP

4шт.

2

CU216487

GASKET,AIR INTAKE

SN: 576252-UP

2шт.

2

CU193295

GASKET,EXHAUST MANIFOLD

SN: 576252-UP

12шт.

2

CU190849

GASKET,TURBOCHARGER

SN: 576252-UP

2шт.

2

CU200260

GASKET,THERMOSTAT

SN: 576252-UP

4шт.

2

02893-05043

O-RING

SN: 576252-UP

4шт.

2

CU193301

O-RING,WATER MANIFOLD TO HEAD

SN: 576252-UP

8шт.

2

CU200259

GASKET,WATER OUTLET

SN: 576252-UP

2шт.

3

CU3004122

GASKET KIT,FUEL PUMP

SN: 576252-UP

1шт.

3

6610-71-2771

RING,DAMPER

SN: 576252-UP

1шт.

3

6610-71-2741

RING,DAMPER

SN: 576252-UP

1шт.

3

6610-71-2760

WASHER,SEAL

SN: 576252-UP

1шт.

3

CU211284

GASKET,GEAR PUMP

SN: 576252-UP

1шт.

3

6610-71-4160

O-RING,SHUT-OFF VALVE

SN: 576252-UP

1шт.

3

6610-71-3520

O-RING

SN: 576252-UP

1шт.

3

6610-71-1320

O-RING

SN: 576252-UP

1шт.

3

CU213768

O-RING

SN: 576252-UP

1шт.

3

6610-71-2410

GASKET,FRONT COVER

SN: 576252-UP

1шт.

3

CU145505

O-RING

SN: 576252-UP

1шт.

3

CU193734

O-RING

SN: 576252-UP

1шт.

3

6610-71-3530

RING

SN: 576252-UP

1шт.

3

CU218264

SEAL

SN: 576252-UP

1шт.

3

CU200817

GASKET,FUEL PUMP

SN: 576252-UP

1шт.

3

6610-71-1821

GASKET,SPRING PACK COVER

SN: 576252-UP

1шт.

3

6610-71-1760

SEAL

SN: 576252-UP

1шт.

3

6610-71-2541

GASKET,GEAR PUMP HOUSING

SN: 576252-UP

1шт.

3

CU210647

GASKET,GEAR PUMP HOUSING

SN: 576252-UP

1шт.

3

CU190876

O-RING

SN: 576252-UP

1шт.

4

6715-08-6641

GASKET KIT,KOMATSU APPLICATION PARTS

SN: 576252-UP

1шт.

4

07002-44234

O-RING

SN: 576252-UP

2шт.

4

06122-05004

SEAL,BEARING

SN: 576252-UP

2шт.

4

07012-00058

SEAL,OIL TENSION PULLEY

SN: 576252-UP

1шт.

4

6162-62-3740

GASKET,TENSION PULLEY

SN: 576252-UP

1шт.

4

6600-01-2620

WASHER,COPPER

SN: 576252-UP

6шт.

5

6715-08-6650

GASKET KIT,AIR COMPRESSOR

SN: 576252-UP

1шт.

5

6684-91-1721

GASKET,CONNECTION TO HEAD

SN: 576252-UP

1шт.

5

CU218027

GASKET,AIR COMPRESSOR, DRIVE HOUSING

SN: 576252-UP

1шт.

5

6684-91-1151

GASKET,HEAD TO CASE

SN: 576252-UP

1шт.

5

6684-91-1130

GASKET,HEAD COVER

SN: 576252-UP

1шт.

5

6684-91-1241

O-RING,OUTLET VALVE SEAT

SN: 576252-UP

1шт.

5

6684-91-1250

O-RING

SN: 576252-UP

1шт.

5

6684-91-1521

SEAL,EXTERNAL PACKING

SN: 576252-UP

1шт.

5

6684-91-1621

O-RING,INLET VALVE SEAT

SN: 576252-UP

2шт.

5

6684-91-2221

GASKET,SUPPORT

SN: 576252-UP

1шт.
