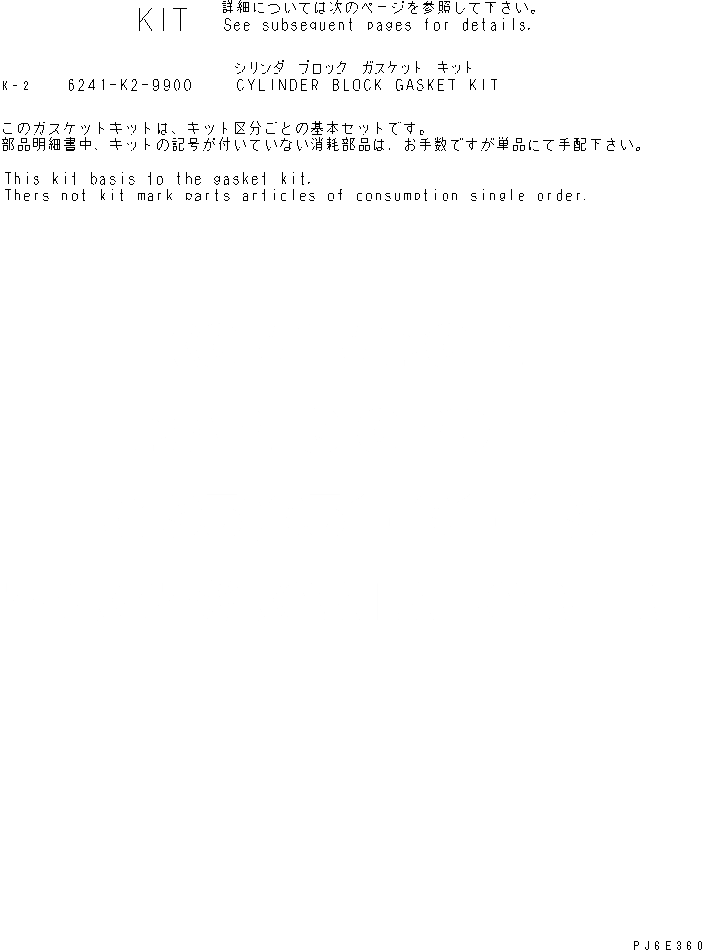

Запчасти Komatsu SAA6D170E-3C-8 КОМПЛЕКТ ПРОКЛАДОК БЛОКА ЦИЛИНДРОВ(№-) ДВИГАТЕЛЬ

2

6241-K2-9900

GASKET KIT,CYLINDER BLOCK

SN: 310024-UP

1шт.

|2

07005-01412

GASKET,(FIG.A2010)

SN: 310024-UP

6шт.

|2

6162-23-2250

SEAL,(FIG.A2010)

SN: 310024-UP

6шт.

|2

6162-23-2240

O-RING,(FIG.A2010)

SN: 310024-UP

6шт.

|2

6162-23-2220

O-RING,(FIG.A2010)

SN: 310024-UP

6шт.

|2

6127-51-6822

GASKET,(FIG.A2011)

SN: 310024-UP

1шт.

|2

6240-21-3810

GASKET,(FIG.A2011)

SN: 310024-UP

1шт.

|2

6210-21-1971

GASKET,(FIG.A2011)

SN: 310024-UP

1шт.

|2

6162-63-6731

GASKET,(FIG.A2011)

SN: 310024-UP

1шт.

|2

6216-21-3170

SEAL¤ FRONT,(FIG.A2040)

SN: 310024-UP

1шт.

|2

6162-23-3520

SEAL,(FIG.A2040)

SN: 310024-UP

1шт.

|2

6240-21-6450

O-RING,(FIG.A2060)

SN: 310024-UP

6шт.

|2

6150-21-6391

PACKING,(FIG.A2060)

SN: 310024-UP

24шт.

|2

07000-73045

O-RING,(FIG.A2060)

SN: 310024-UP

1шт.

|2

6206-21-6871

GASKET,(FIG.A2070)

SN: 310024-UP

1шт.

|2

07000-03025

O-RING,(FIG.A2110)

SN: 310024-UP

1шт.

|2

07000-E2060

O-RING,(FIG.A2110)

SN: 310024-UP

1шт.

|2

6162-23-4941

GASKET,(FIG.A2210)

SN: 310024-UP

1шт.

|2

6240-51-1810

GASKET,(FIG.A3010)

SN: 310024-UP

2шт.

|2

6124-61-2181

GROMMET,(FIG.A3110)

SN: 310024-UP

6шт.

|2

6240-61-2560

GASKET,(FIG.A3310)

SN: 310024-UP

4шт.

|2

6150-61-2510

O-RING,(FIG.A3310)

SN: 310024-UP

4шт.

|2

6150-61-2520

O-RING,(FIG.A3310)

SN: 310024-UP

8шт.

|2

07000-73042

O-RING,(FIG.A3310)

SN: 310024-UP

2шт.

|2

6150-61-2540

SEAL,(FIG.A3310)

SN: 310024-UP

2шт.

|2

6150-61-2550

O-RING,(FIG.A3310)

SN: 310024-UP

2шт.

|2

6150-61-2815

GASKET,(FIG.A3310)

SN: 310024-UP

2шт.

|2

6240-71-5850

O-RING,(FIG.A4010)

SN: 310024-UP

1шт.

|2

6240-71-5860

O-RING,(FIG.A4010)

SN: 310024-UP

1шт.

|2

6240-71-3180

GASKET,(FIG.A4010)

SN: 310024-UP

1шт.

|2

07000-72095

O-RING,(FIG.A4010)

SN: 310024-UP

1шт.

|2

07005-01612

GASKET,(FIG.A4030)

SN: 310024-UP

4шт.

|2

07005-01412

GASKET,(FIG.A4030)

SN: 310024-UP

4шт.

|2

07000-72135

O-RING,(FIG.A4080)

SN: 310024-UP

1шт.

|2

6240-71-5840

O-RING,(FIG.A4110)

SN: 310024-UP

1шт.

|2

07005-02012

GASKET,(FIG.A4230)

SN: 310024-UP

4шт.

|2

07005-01412

GASKET,(FIG.A5210)

SN: 310024-UP

4шт.

|2

6221-81-6810

GASKET,(FIG.A6210)

SN: 310024-UP

2шт.

|$$39

THE FOLLOWING PARTS ARE NOT USED FOR THIS MODEL.

-1шт.

|2

6240-21-4250

SEAL

SN: 310024-UP

1шт.

|2

07005-02216

GASKET

SN: 310024-UP

1шт.

|2

07005-01612

GASKET

SN: 310024-UP

1шт.

|$$43

THE FOLLOWING PARTS ARE THE PARTS NOT INCLUDED IN THE GASKET KIT.

-1шт.

|2

6162-25-4251

SEAL¤ REAR,(FIG.A2210)

SN: 310024-UP

1шт.

|2

07000-73050

O-RING,(FIG.A3110)

SN: 310024-UP

4шт.

2

6241-K2-9900

GASKET KIT,CYLINDER BLOCK

SN: 310024-UP

1шт.

|2

07005-01412

GASKET,(FIG.A2010)

SN: 310024-UP

6шт.

|2

6162-23-2250

SEAL,(FIG.A2010)

SN: 310024-UP

6шт.

|2

6162-23-2240

O-RING,(FIG.A2010)

SN: 310024-UP

6шт.

|2

6162-23-2220

O-RING,(FIG.A2010)

SN: 310024-UP

6шт.

|2

6127-51-6822

GASKET,(FIG.A2011)

SN: 310024-UP

1шт.

|2

6240-21-3810

GASKET,(FIG.A2011)

SN: 310024-UP

1шт.

|2

6210-21-1971

GASKET,(FIG.A2011)

SN: 310024-UP

1шт.

|2

6162-63-6731

GASKET,(FIG.A2011)

SN: 310024-UP

1шт.

|2

6216-21-3170

SEAL¤ FRONT,(FIG.A2040)

SN: 310024-UP

1шт.

|2

6162-23-3520

SEAL,(FIG.A2040)

SN: 310024-UP

1шт.

|2

6240-21-6450

O-RING,(FIG.A2060)

SN: 310024-UP

6шт.

|2

6150-21-6391

PACKING,(FIG.A2060)

SN: 310024-UP

24шт.

|2

07000-73045

O-RING,(FIG.A2060)

SN: 310024-UP

1шт.

|2

6206-21-6871

GASKET,(FIG.A2070)

SN: 310024-UP

1шт.

|2

07000-03025

O-RING,(FIG.A2110)

SN: 310024-UP

1шт.

|2

07000-E2060

O-RING,(FIG.A2110)

SN: 310024-UP

1шт.

|2

6162-23-4941

GASKET,(FIG.A2210)

SN: 310024-UP

1шт.

|2

6240-51-1810

GASKET,(FIG.A3010)

SN: 310024-UP

2шт.

|2

6124-61-2181

GROMMET,(FIG.A3110)

SN: 310024-UP

6шт.

|2

6240-61-2560

GASKET,(FIG.A3310)

SN: 310024-UP

4шт.

|2

6150-61-2510

O-RING,(FIG.A3310)

SN: 310024-UP

4шт.

|2

6150-61-2520

O-RING,(FIG.A3310)

SN: 310024-UP

8шт.

|2

07000-73042

O-RING,(FIG.A3310)

SN: 310024-UP

2шт.

|2

6150-61-2540

SEAL,(FIG.A3310)

SN: 310024-UP

2шт.

|2

6150-61-2550

O-RING,(FIG.A3310)

SN: 310024-UP

2шт.

|2

6150-61-2815

GASKET,(FIG.A3310)

SN: 310024-UP

2шт.

|2

6240-71-5850

O-RING,(FIG.A4010)

SN: 310024-UP

1шт.

|2

6240-71-5860

O-RING,(FIG.A4010)

SN: 310024-UP

1шт.

|2

6240-71-3180

GASKET,(FIG.A4010)

SN: 310024-UP

1шт.

|2

07000-72095

O-RING,(FIG.A4010)

SN: 310024-UP

1шт.

|2

07005-01612

GASKET,(FIG.A4030)

SN: 310024-UP

4шт.

|2

07005-01412

GASKET,(FIG.A4030)

SN: 310024-UP

4шт.

|2

07000-72135

O-RING,(FIG.A4080)

SN: 310024-UP

1шт.

|2

6240-71-5840

O-RING,(FIG.A4110)

SN: 310024-UP

1шт.

|2

07005-02012

GASKET,(FIG.A4230)

SN: 310024-UP

4шт.

|2

07005-01412

GASKET,(FIG.A5210)

SN: 310024-UP

4шт.

|2

6221-81-6810

GASKET,(FIG.A6210)

SN: 310024-UP

2шт.

|$$39

THE FOLLOWING PARTS ARE NOT USED FOR THIS MODEL.

-1шт.

|2

6240-21-4250

SEAL

SN: 310024-UP

1шт.

|2

07005-02216

GASKET

SN: 310024-UP

1шт.

|2

07005-01612

GASKET

SN: 310024-UP

1шт.

|$$43

THE FOLLOWING PARTS ARE THE PARTS NOT INCLUDED IN THE GASKET KIT.

-1шт.

|2

6162-25-4251

SEAL¤ REAR,(FIG.A2210)

SN: 310024-UP

1шт.

|2

07000-73050

O-RING,(FIG.A3110)

SN: 310024-UP

4шт.
