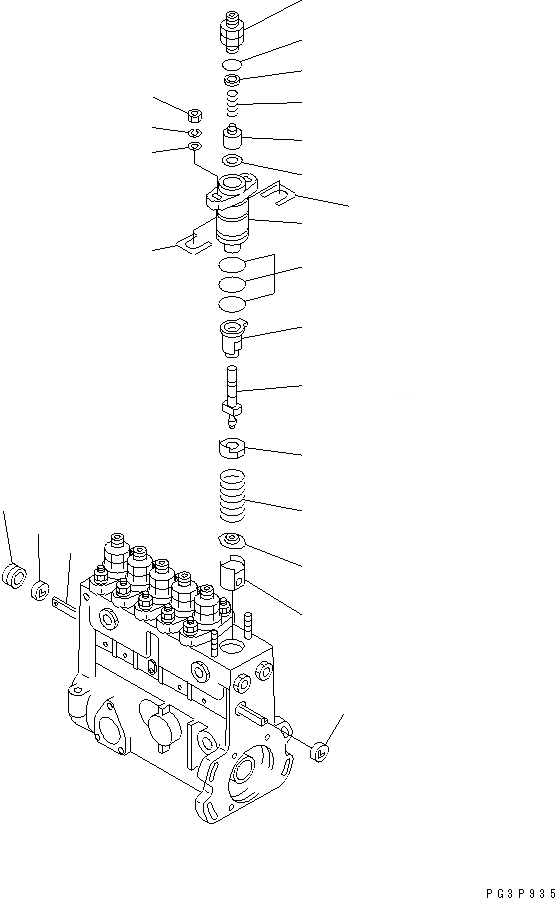

Запчасти Komatsu SAA6D108E-2C-8 ТОПЛ. НАСОС (НАСОС) (/) (ДЛЯ ОГРАНИЧЕНИЯ ПО ВЫБРОСУ ЕВРОП.) (ВНУТР. ЧАСТИ)(№-) ДВИГАТЕЛЬ

|1

6222-73-1351

INJECTION PUMP ASS'Y

SN: 35434-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A4010-B2F6 TO A4010-G2F6.

-1шт.

|1

ND190100-0612

PUMP ASS'Y

SN: 35434-UP

1шт.

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A4010-B2F6 AND A4010-C2F6.

-1шт.

1

ND090130-0540

HOLDER ASS'Y,DELIVERY VALVE

SN: 35434-UP

6шт.

2

ND090136-0800

SPRING,DELIVERY VALVE

SN: 35434-UP

6шт.

3

ND949140-2570

O-RING

SN: 35434-UP

6шт.

4

ND090140-2440

VALVE,DELIVERY

SN: 35434-UP

6шт.

5

ND090150-6250

ELEMENT,PUMP

SN: 35434-UP

6шт.

6

ND090160-0150

SLEEVE,CONTROL

SN: 35434-UP

6шт.

7

ND090212-0471

RACK,CONTROL

SN: 35434-UP

1шт.

8

ND090163-0160

SEAT,UPPER SPRING

SN: 35434-UP

6шт.

9

ND090164-0290

SPRING,PLUNGER

SN: 35434-UP

6шт.

10

ND090165-0150

SEAT,LOWER SPRING

SN: 35434-UP

6шт.

11

ND090170-0320

TAPPET ASS'Y

SN: 35434-UP

6шт.

12

ND090438-0901

SHIM¤ 1.65MM

SN: 35434-UP

-2шт.

|12

ND090438-0911

SHIM¤ 1.7MM

SN: 35434-UP

-2шт.

|12

ND090438-0391

SHIM¤ 1.75MM,ELEMENT HOLDER

SN: 35434-UP

-2шт.

|12

ND090438-0401

SHIM¤ 1.8MM,ELEMENT HOLDER

SN: 35434-UP

-2шт.

|12

ND090438-0411

SHIM¤ 1.85MM,ELEMENT HOLDER

SN: 35434-UP

-2шт.

|12

ND090438-0421

SHIM¤ 1.9MM,ELEMENT HOLDER

SN: 35434-UP

-2шт.

|12

ND090438-0431

SHIM¤ 1.95MM,ELEMENT HOLDER

SN: 35434-UP

-2шт.

|12

ND090438-0441

SHIM¤ 2.0MM,ELEMENT HOLDER

SN: 35434-UP

-2шт.

|12

ND090438-0451

SHIM¤ 2.05MM,ELEMENT HOLDER

SN: 35434-UP

-2шт.

|12

ND090438-0461

SHIM¤ 2.1MM,ELEMENT HOLDER

SN: 35434-UP

-2шт.

|12

ND090438-0471

SHIM¤ 2.15MM,ELEMENT HOLDER

SN: 35434-UP

-2шт.

|12

ND090438-0481

SHIM¤ 2.2MM,ELEMENT HOLDER

SN: 35434-UP

-2шт.

|12

ND090438-0491

SHIM¤ 2.25MM,ELEMENT HOLDER

SN: 35434-UP

-2шт.

|12

ND090438-0501

SHIM¤ 2.3MM,ELEMENT HOLDER

SN: 35434-UP

-2шт.

13

ND90196-08651

NUT

SN: 35434-UP

12шт.

14

ND949013-5880

WASHER,PLATE

SN: 35434-UP

12шт.

15

ND90258-08001

WASHER

SN: 35434-UP

12шт.

16

ND090139-0020

O-RING

SN: 35434-UP

18шт.

17

ND949018-1730

WASHER

SN: 35434-UP

6шт.

18

ND90208-04610

WASHER¤ 0.1MM

SN: 35434-UP

-2шт.

|18

ND949013-5140

WASHER¤ 0.15MM

SN: 35434-UP

-2шт.

|18

ND949013-5930

WASHER¤ 0.3MM

SN: 35434-UP

-2шт.

19

ND090114-0110

BUSHING

SN: 35434-UP

2шт.

20

ND090367-0040

BUSHING

SN: 35434-UP

1шт.
