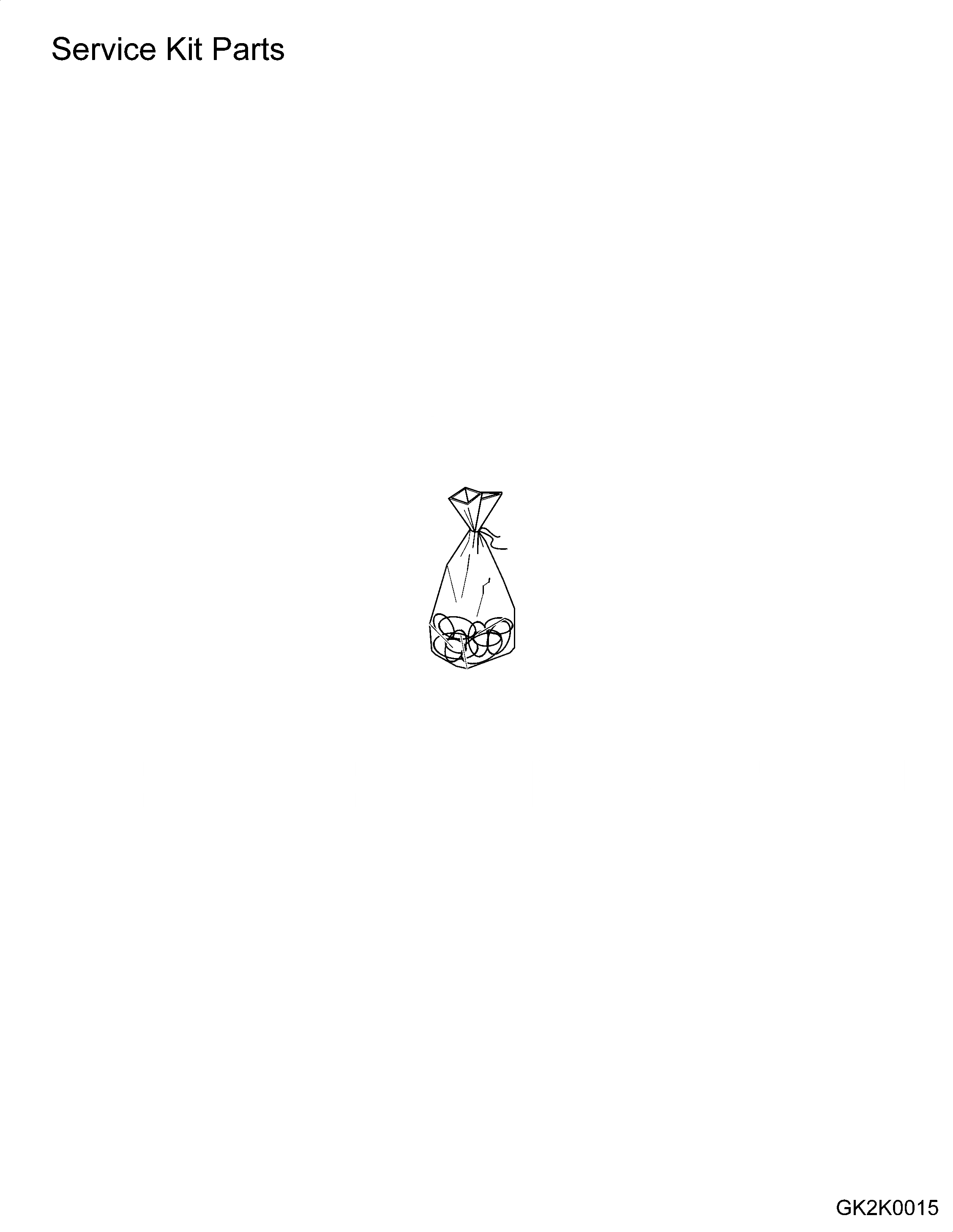

Запчасти Komatsu SAA6D107E-1E REPВОЗД. ЗАПЧАСТИ ДЛЯ ОБСЛУЖ-Я (№7-) Y FIELD REPВОЗД. ЗАПЧАСТИ ДЛЯ ОБСЛУЖ-Я

1

6736-29-1410

Bushing, Cam, Oversized, No.1

SN: 21711506-UP

1шт.

2

6736-29-1420

Bushing, Cam, Oversized, No.2, 3, 4, 5, 6, 7

SN: 21711506-UP

1шт.

|2

6736-39-1130

Seal Kit, Rear

SN: 21711506-UP

1шт.

3

6736-39-1160

Sleeve, Wear

SN: 21711506-UP

1шт.

4

6736-39-1170

Seal

SN: 21711506-UP

1шт.

|4

6735-29-8100

Main Metal Assembly, Undersized, 0.25mm

SN: 21711506-UP

6шт.

5

0

Metal, Upper

SN: 21711506-UP

1шт.

6

0

Metal, Lower

SN: 21711506-UP

1шт.

|6

6736-29-8610

Metal Assembly, Thrust, Oversized, 0.25mm

SN: 21711506-UP

1шт.

7

0

Metal, Upper

SN: 21711506-UP

1шт.

8

0

Metal, Lower

SN: 21711506-UP

1шт.

|8

6735-28-8100

Main Metal Assembly, Undersized, 0.50mm

SN: 21711506-UP

6шт.

9

0

Metal, Upper

SN: 21711506-UP

1шт.

10

0

Metal, Lower

SN: 21711506-UP

1шт.

|10

6735-28-8200

Metal Assembly, Thrust, Oversized, 0.50mm

SN: 21711506-UP

1шт.

11

0

Metal, Upper

SN: 21711506-UP

1шт.

12

0

Metal, Lower

SN: 21711506-UP

1шт.

|12

6735-27-8100

Main Metal Assembly, Undersized, 0.75mm

SN: 21711506-UP

6шт.

13

0

Metal, Upper

SN: 21711506-UP

1шт.

14

0

Metal, Lower

SN: 21711506-UP

1шт.

|14

6736-28-8620

Metal Assembly, Thrust, Oversized, 0.75mm

SN: 21711506-UP

1шт.

15

0

Metal, Upper

SN: 21711506-UP

1шт.

16

0

Metal, Lower

SN: 21711506-UP

1шт.

|16

6735-26-8100

Main Metal Assembly, Undersized, 1.00mm

SN: 21711506-UP

6шт.

17

0

Metal, Upper

SN: 21711506-UP

1шт.

18

0

Metal, Lower

SN: 21711506-UP

1шт.

|18

6736-27-8620

Metal Assembly, Thrust, Oversized, 1.00mm

SN: 21711506-UP

1шт.

19

0

Metal, Upper

SN: 21711506-UP

1шт.

20

0

Metal, Lower

SN: 21711506-UP

1шт.

|20

6731-21-8610

Metal Assembly, Thrust, Oversized, (Bore/Thrust)

SN: 21711506-UP

1шт.

21

0

Metal, Upper, 0.50mm/0.50mm

SN: 21711506-UP

1шт.

22

0

Metal, Lower, 0.50mm

SN: 21711506-UP

1шт.

|22

6731-21-8620

Metal Assembly, Thrust, Oversized, (Bore/Thrust)

SN: 21711506-UP

1шт.

23

0

Metal, Upper, 1.00mm/1.00mm

SN: 21711506-UP

1шт.

24

0

Metal, Lower, 1.00mm

SN: 21711506-UP

1шт.

25

0

Metal, Rod, Lower, Undersized, 0.25mm

SN: 21711506-UP

6шт.

26

0

Metal, Rod, Lower, Undersized, 0.50mm

SN: 21711506-UP

6шт.

27

0

Metal, Rod, Lower, Undersized, 0.75mm

SN: 21711506-UP

6шт.

28

0

Metal, Rod, Lower, Undersized, 1.00mm

SN: 21711506-UP

6шт.

29

6754-39-2110

Piston, Oversized, 0.50mm

SN: 21711506-UP

6шт.
