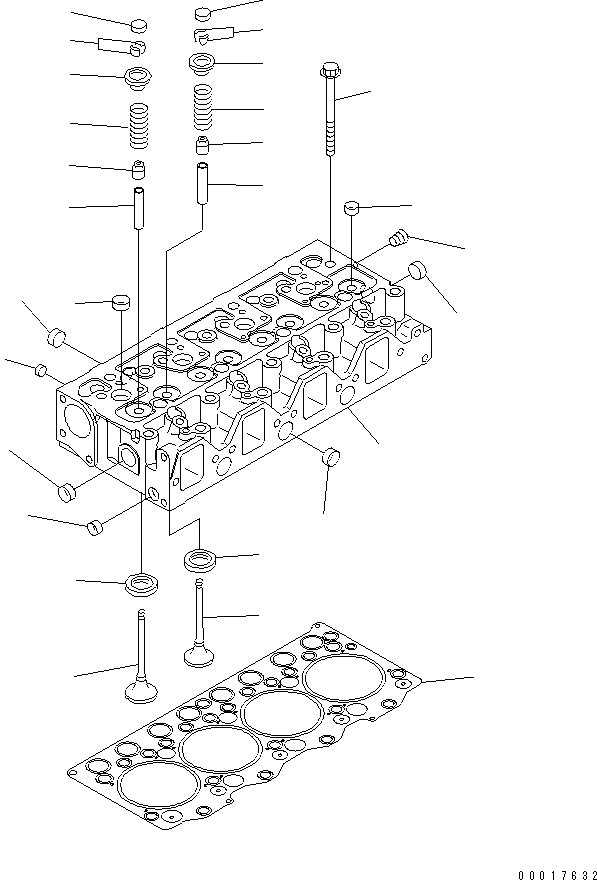

Запчасти Komatsu SAA4D95LE_5A ГОЛОВКА ЦИЛИНДРОВ AA ДВИГАТЕЛЬ

|$1

6271-11-1010

HEAD ASSEMBLY

SN: 500001-UP

1шт.

|$2

6271-11-1100

CYLINDER HEAD A., VALVE LESS

SN: 500001-UP

1шт.

1

0

HEAD, CYLINDER

SN: 500001-UP

1шт.

2

6204-19-1310

GUIDE, VALVE

SN: 500001-UP

8шт.

3

6207-11-1431

SEAT, INTAKE VALVE (STD)

SN: 500001-UP

4шт.

3

6207-19-1431

SEAT, 0.25MM, INTAKE VALVE (OS)

SN: 500001-UP

4шт.

3

6207-18-1431

SEAT, 0.50MM, INTAKE VALVE (OS)

SN: 500001-UP

4шт.

4

6208-11-1440

SEAT, EXHAUST VALVE (STD)

SN: 500001-UP

4шт.

4

6208-19-1440

SEAT, 0.25MM, EXHAUST VALVE (OS)

SN: 500001-UP

4шт.

4

6208-18-1440

SEAT, 0.50MM, EXHAUST VALVE (OS)

SN: 500001-UP

4шт.

5

07046-41008

PLUG

SN: 500001-UP

4шт.

6

07046-41810

PLUG

SN: 500001-UP

9шт.

7

07046-42216

PLUG

SN: 500001-UP

3шт.

8

07046-42516

PLUG

SN: 500001-UP

11шт.

9

02720-40104

PLUG

SN: 500001-UP

1шт.

10

6207-41-4130

VALVE, INTAKE

SN: 500001-UP

4шт.

11

6209-41-4210

VALVE, EXHAUST

SN: 500001-UP

4шт.

12

6204-41-4510

SEAT

SN: 500001-UP

8шт.

13

6204-41-4520

COTTER

SN: 500001-UP

16шт.

14

6204-41-4410

SPRING, VALVE

SN: 500001-UP

8шт.

15

6204-41-4541

SEAL

SN: 500001-UP

8шт.

16

6204-41-4550

CAP

SN: 500001-UP

8шт.

17

6204-11-1840

GASKET

SN: 500001-UP

1шт.

18

6204-13-1610

BOLT

SN: 500001-UP

17шт.
