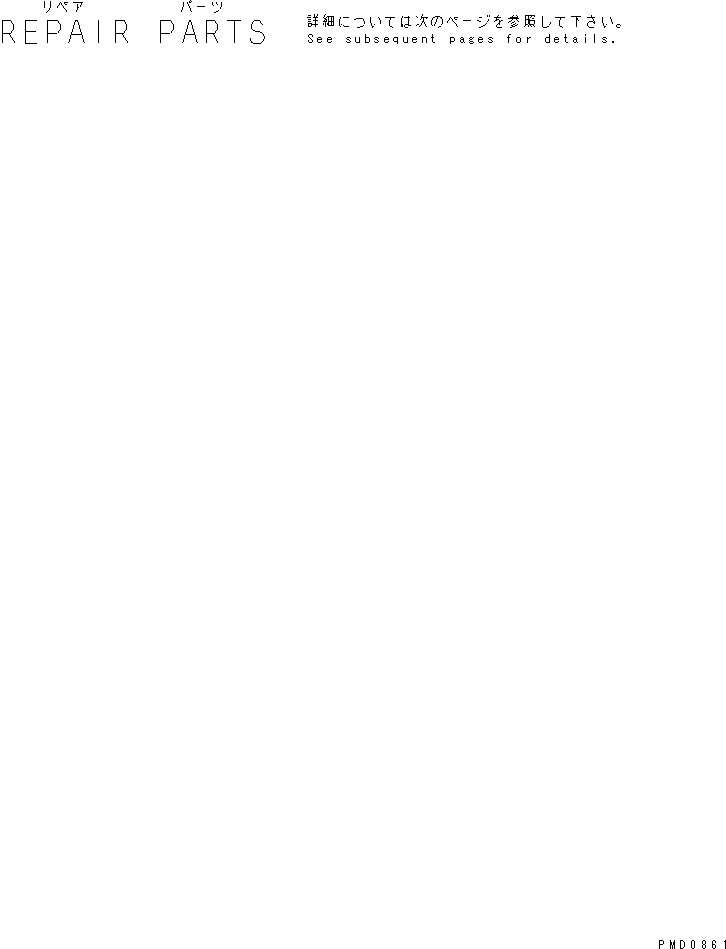

Запчасти Komatsu SAA4D95LE-5A ЗАПЧАСТИ ДЛЯ РЕМОНТА ДВИГАТЕЛЬ

1

6204-19-1310

GUIDE,VALVE

SN: 500001-UP

8шт.

2

6207-19-1431

SEAT¤ 0.25MM,INTAKE VALVE (OS)

SN: 500001-UP

4шт.

|2

6207-18-1431

SEAT¤ 0.50MM,INTAKE VALVE (OS)

SN: 500001-UP

4шт.

3

6208-19-1440

SEAT¤ 0.25MM,EXHAUST VALVE (OS)

SN: 500001-UP

4шт.

|3

6208-18-1440

SEAT¤ 0.50MM,EXHAUST VALVE (OS)

SN: 500001-UP

4шт.

4

6207-21-2121

LINER

SN: 500001-UP

4шт.

|$$7

UNDERSIZE 0.25MM

-1шт.

|5

6204-29-8100

MAIN METAL ASS'Y

SN: 500001-UP

5шт.

5

0

METAL,UPPER

SN: 500001-UP

1шт.

6

0

METAL,LOWER

SN: 500001-UP

1шт.

|$$11

UNDERSIZE 0.50MM

-1шт.

|5

6204-28-8100

MAIN METAL ASS'Y

SN: 500001-UP

5шт.

5

0

METAL,UPPER

SN: 500001-UP

1шт.

6

0

METAL,LOWER

SN: 500001-UP

1шт.

|$$15

UNDERSIZE 0.75MM

-1шт.

|5

6204-27-8100

MAIN METAL ASS'Y

SN: 500001-UP

5шт.

5

0

METAL,UPPER

SN: 500001-UP

1шт.

6

0

METAL,LOWER

SN: 500001-UP

1шт.

|$$19

UNDERSIZE 1.00MM

-1шт.

|5

6204-26-8100

MAIN METAL ASS'Y

SN: 500001-UP

5шт.

5

0

METAL,UPPER

SN: 500001-UP

1шт.

6

0

METAL,LOWER

SN: 500001-UP

1шт.

|$$23

OVERSIZE 0.25MM

-1шт.

|7

6204-29-8600

THRUST METAL ASS'Y

SN: 500001-UP

1шт.

7

0

METAL,THRUST

SN: 500001-UP

2шт.

|$$26

OVERSIZE 0.50MM

-1шт.

|7

6204-28-8600

THRUST METAL ASS'Y

SN: 500001-UP

1шт.

7

0

METAL,THRUST

SN: 500001-UP

2шт.

|$$29

OVERSIZE 0.75MM

-1шт.

|7

6204-27-8600

THRUST METAL ASS'Y

SN: 500001-UP

1шт.

7

0

METAL,THRUST

SN: 500001-UP

2шт.

|$$32

OVERSIZE 1.00MM

-1шт.

|7

6204-26-8600

THRUST METAL ASS'Y

SN: 500001-UP

1шт.

7

0

METAL,THRUST

SN: 500001-UP

2шт.

|$$35

UNDERSIZE 0.25MM

-1шт.

|8

6208-39-3400

CRANK PIN METAL A.

SN: 500001-UP

4шт.

8

0

METAL,UPPER

SN: 500001-UP

1шт.

9

0

METAL,LOWER

SN: 500001-UP

1шт.

|$$39

UNDERSIZE 0.50MM

-1шт.

|8

6208-38-3400

CRANK PIN METAL A.

SN: 500001-UP

4шт.

8

0

METAL,UPPER

SN: 500001-UP

1шт.

9

0

METAL,LOWER

SN: 500001-UP

1шт.

|$$43

UNDERSIZE 0.75MM

-1шт.

|8

6208-37-3400

CRANK PIN METAL A.

SN: 500001-UP

4шт.

8

0

METAL,UPPER

SN: 500001-UP

1шт.

9

0

METAL,LOWER

SN: 500001-UP

1шт.

|$$47

UNDERSIZE 1.00MM

-1шт.

|8

6208-36-3400

CRANK PIN METAL A.

SN: 500001-UP

4шт.

8

0

METAL,UPPER

SN: 500001-UP

1шт.

9

0

METAL,LOWER

SN: 500001-UP

1шт.

|$$51

OVERSIZE 0.25MM

-1шт.

|10

6271-39-2100

PISTON RING ASS'Y

SN: 500001-UP

4шт.

10

0

RING,TOP

SN: 500001-UP

1шт.

11

0

RING,SECOND

SN: 500001-UP

1шт.

12

0

RING,OIL

SN: 500001-UP

1шт.

|$$56

OVERSIZE 0.50MM

-1шт.

|10

6271-38-2100

PISTON RING ASS'Y

SN: 500001-UP

4шт.

10

0

RING,TOP

SN: 500001-UP

1шт.

11

0

RING,SECOND

SN: 500001-UP

1шт.

12

0

RING,OIL

SN: 500001-UP

1шт.

|$$61

OVERSIZE 0.25MM

-1шт.

13

6271-39-2110

PISTON

SN: 500001-UP

4шт.

|$$63

OVERSIZE 0.50MM

-1шт.

|13

6271-38-2110

PISTON

SN: 500001-UP

4шт.
