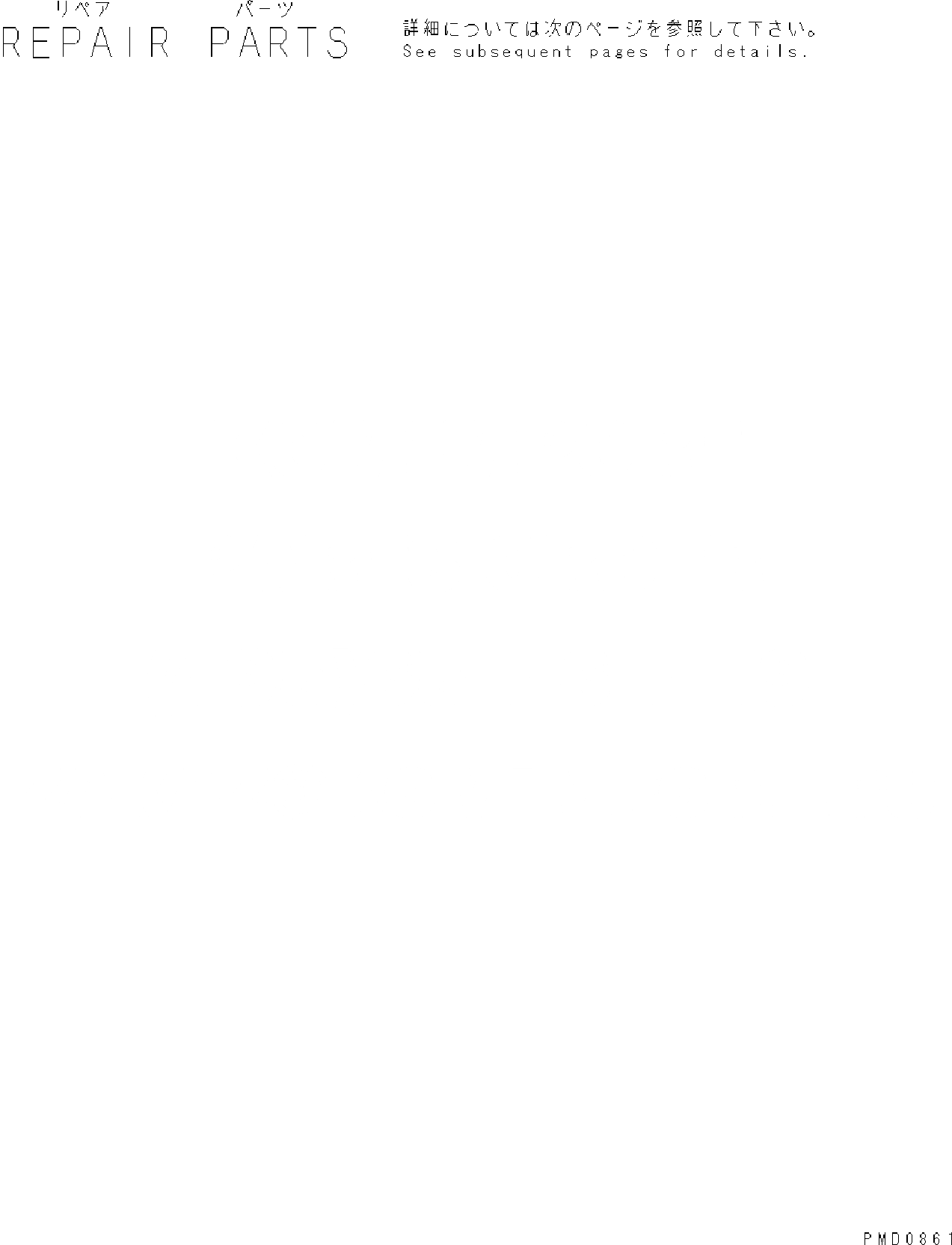

Запчасти Komatsu SAA4D95LE-5 REPВОЗД. ЗАПЧАСТИ ДЛЯ ОБСЛУЖ-Я Y FIELD REPВОЗД. ЗАПЧАСТИ ДЛЯ ОБСЛУЖ-Я

|$1

6204-19-1310

Guide, Valve, Valve

SN: 501795-UP

8шт.

|$2

6207-19-1431

Seat, Intake Valve, Oversize 0.25mm

SN: 501795-UP

4шт.

|$3

6207-18-1431

Seat, Intake Valve, Oversize 0.50mm, 0.50mm, Intake Valve

SN: 501795-UP

4шт.

|$4

6208-19-1440

Seat, Exhaust Valve, Oversize 0.25mm

SN: 501795-UP

4шт.

|$5

6208-18-1440

Seat, Exhaust Valve, Oversize 0.50mm

SN: 501795-UP

4шт.

|$6

6207-21-2111

Liner

SN: 501795-UP

4шт.

|$7

6207-21-2121

Liner

SN: 501795-UP

4шт.

|$8

6204-29-8100

Main Metal Assembly, Undersize 0.25mm

SN: 501795-UP

5шт.

|$9

0

Metal, Upper, Underzise 0.25mm

SN: 501795-UP

1шт.

|$10

0

Metal, Lower, Undersize 0.25mm

SN: 501795-UP

1шт.

|$11

6204-28-8100

Main Metal Assembly, Undersize 0.50mm

SN: 501795-UP

5шт.

|$12

0

Metal, Upper, Undersize 0.50mm

SN: 501795-UP

1шт.

|$13

0

Metal, Lower, Undersize 0.50mm

SN: 501795-UP

1шт.

|$14

6204-27-8100

Main Metal Assembly, Undersize 0.75mm

SN: 501795-UP

5шт.

|$15

0

Metal, Upper, Undersize 0.75mm

SN: 501795-UP

1шт.

|$16

0

Metal, Lower, Undersize 0.75mm

SN: 501795-UP

1шт.

|$17

6204-26-8100

Main Metal Assembly, Unsersize 1.00mm

SN: 501795-UP

5шт.

|$18

0

Metal, Upper, Undersize 1.00mm

SN: 501795-UP

1шт.

|$19

0

Metal, Lower, Undersize 1.00mm

SN: 501795-UP

1шт.

|$20

6204-29-8600

Thrust Metal Assembly, Oversize 0.25mm

SN: 501795-UP

1шт.

|$21

0

Metal, Thrust, Oversize 0.25mm

SN: 501795-UP

2шт.

|$22

6204-28-8600

Thrust Metal Assembly, Oversize 0.50mm

SN: 501795-UP

1шт.

|$23

0

Metal, Thrust, Oversize 0.50mm

SN: 501795-UP

2шт.

|$24

6204-27-8600

Thrust Metal Assembly, Oversize 0.75mm

SN: 501795-UP

1шт.

|$25

0

Metal, Thrust, Oversize 0.75mm

SN: 501795-UP

2шт.

|$26

6204-26-8600

Thrust Metal Assembly, Oversize 1.00mm

SN: 501795-UP

1шт.

|$27

0

Metal, Thrust, Oversize 1.00mm

SN: 501795-UP

2шт.

|$28

6207-39-3900

Crank Pin Metal Assembly, Undersized, 0.25mm

SN: 502660-UP

4шт.

1

6207-39-3300

Metal Assembly, Crank Pin, Undersize 0.25mm

SN: 501795-503175

4шт.

2

0

Metal,Upper

SN: 501795-UP

1шт.

|$31

0

Metal, Lower

SN: 501795-UP

1шт.

|$32

6207-38-3900

Crank Pin Metal Assembly, Undersized, 0.50mm

SN: 502660-UP

4шт.

3

6207-38-3300

Metal Assembly, Crank Pin, Undersize 0.50mm

SN: 501795-503175

4шт.

4

0

Metal,Upper

SN: 501795-UP

1шт.

|$35

0

Metal, Upper, Undersize 0.50mm,Lower

SN: 501795-UP

1шт.

|$36

6207-37-3900

Crank Pin Metal Assembly, Undersized, 0.75mm

SN: 502660-UP

4шт.

5

6207-37-3300

Metal Assembly, Crank Pin, Undersize 0.75mm

SN: 501795-503175

4шт.

6

0

Metal,Upper

SN: 501795-UP

1шт.

|$39

0

Metal, Upper, Undersize 0.75mm,Lower

SN: 501795-UP

1шт.

|$40

6207-36-3900

Crank Pin Metal Assembly, Undersized, 1.00mm

SN: 502660-UP

1шт.

7

6207-36-3300

Metal Assembly, Crank Pin, Undersize 1.00mm

SN: 501795-503175

4шт.

8

0

Metal,Upper

SN: 501795-UP

1шт.

|$43

0

Metal, Upper, Undersize 1.00mm,Lower

SN: 501795-UP

1шт.

|$44

6271-39-2100

Piston Ring Assembly, Oversize 0.25mm

SN: 501795-UP

4шт.

|$45

0

Ring, Top, Oversize 0.25mm

SN: 501795-UP

1шт.

|$46

0

Ring, Second, Oversize 0.25mm

SN: 501795-UP

1шт.

|$47

0

Ring, Oil, Oversize 0.25mm

SN: 501795-UP

1шт.

|$48

6271-38-2100

Piston Ring Assembly, Oversize 0.50mm

SN: 501795-UP

4шт.

|$49

0

Ring, Top, Oversize 0.50mm

SN: 501795-UP

1шт.

|$50

0

Ring, Second, Oversize 0.50mm

SN: 501795-UP

1шт.

|$51

0

Ring, Oil, Oversize 0.50mm

SN: 501795-UP

1шт.

|$52

6271-39-2110

Piston, Oversize 0.25mm

SN: 501795-UP

4шт.

|$53

6271-38-2110

Piston, Oversize 0.50mm

SN: 501795-UP

4шт.
