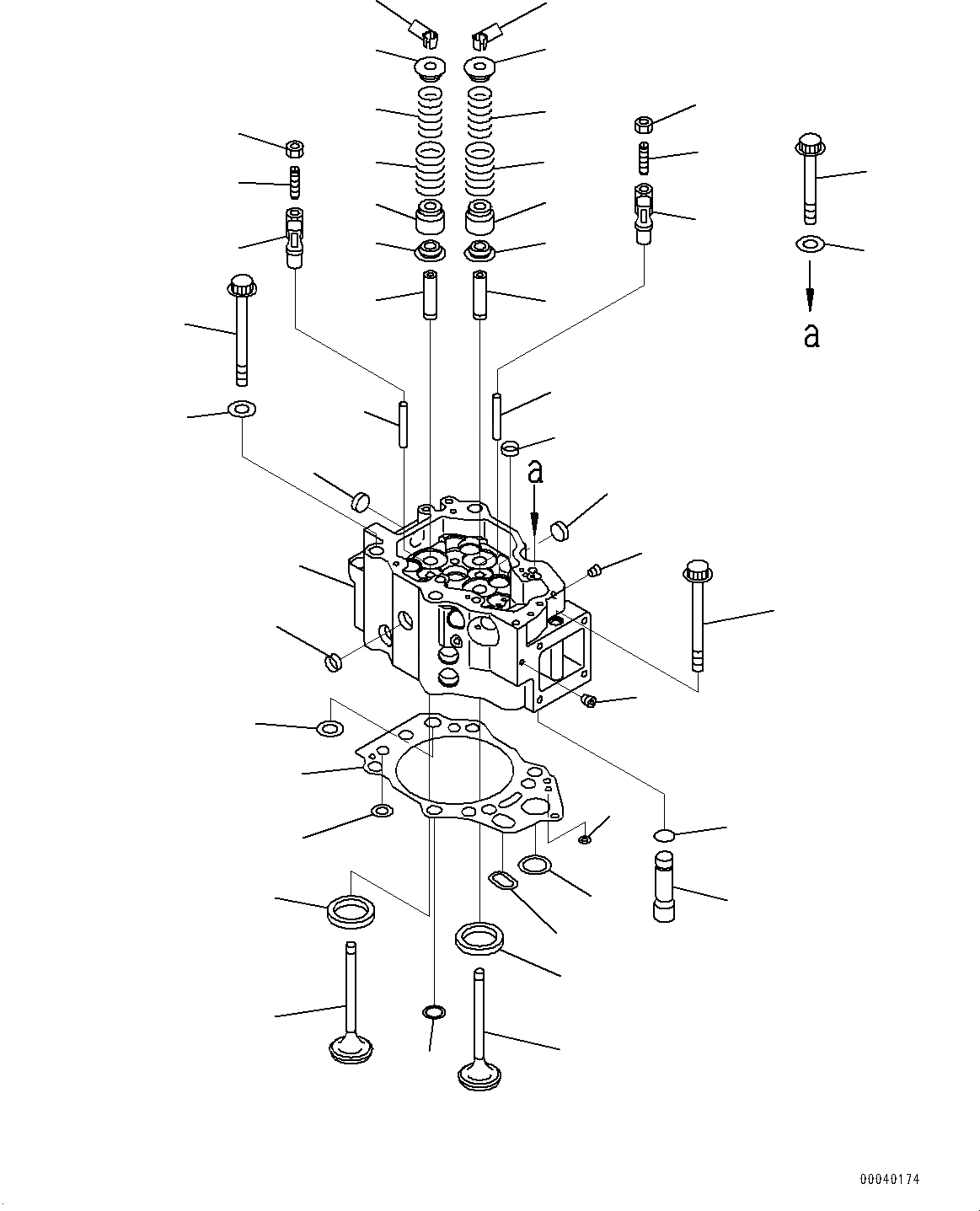

Запчасти Komatsu SAA12V140E-3B ГОЛОВКА ЦИЛИНДРОВ (№77-) ГОЛОВКА ЦИЛИНДРОВ

|$0

6219-11-1100

Cylinder Head Assembly

SN: 505077-UP

12шт.

1

Head

SN: 505077-UP

1шт.

2

6216-11-1330

Insert, Intake Valve, Standard

SN: 505077-UP

2шт.

2

6216-19-1330

Insert, Intake Valve, Oversize 0.25mm

SN: 505077-UP

2шт.

2

6216-18-1330

Insert, Intake Valve, Oversize 0.50mm

SN: 505077-UP

2шт.

2

6216-17-1330

Insert, Intake Valve, Oversize 0.75mm

SN: 505077-UP

2шт.

2

6216-16-1330

Insert, Intake Valve, Oversize 1.00mm

SN: 505077-UP

2шт.

3

6217-11-1321

Insert, Exhaust Valve, Standard

SN: 505077-UP

2шт.

3

6217-19-1321

Insert, Exhaust Valve, Oversize 0.25mm

SN: 505077-UP

2шт.

3

6217-18-1321

Insert, Exhaust Valve, Oversize 0.50mm

SN: 505077-UP

2шт.

3

6217-17-1321

Insert, Exhaust Valve, Oversize 0.75mm

SN: 505077-UP

2шт.

3

6217-16-1321

Insert, Exhaust Valve, Oversize 1.00mm

SN: 505077-UP

2шт.

4

6217-11-1441

Guide, Valve

SN: 505077-UP

4шт.

5

6210-11-1150

Pipe

SN: 505077-UP

1шт.

6

07000-73025

O-ring

SN: 505077-UP

1шт.

7

6162-13-1150

Plug, Expansion

SN: 505077-UP

13шт.

8

07043-50108

Plug, Taper

SN: 505077-UP

1шт.

9

708-21-12541

Plug

SN: 505077-UP

2шт.

10

6210-11-1140

Guide, Crosshead

SN: 505077-UP

24шт.

11

6210-41-4430

Spring,Outer

SN: 505077-UP

48шт.

12

6210-41-4440

Spring,Inner

SN: 505077-UP

48шт.

13

6210-41-4510

Seat, Upper

SN: 505077-UP

48шт.

14

6215-41-4220

Valve, Exhaust

SN: 505077-UP

24шт.

15

6217-41-4110

Valve, Intake

SN: 505077-UP

24шт.

16

6217-41-4531

Seat,Lower

SN: 505077-UP

48шт.

17

6217-41-4540

Seal, Valve Stem

SN: 505077-UP

48шт.

18

6136-41-4520

Cotter, Valve

SN: 505077-UP

96шт.

19

6210-17-1814

Gasket, Head, Standard

SN: 505077-UP

12шт.

19

6210-19-1814

Gasket, Head, Oversize 0.40mm

SN: 505077-UP

12шт.

20

6210-11-1820

Grommet, Oil, Standard

SN: 505077-UP

1шт.

20

6210-19-1820

Grommet, Oil, Oversize 0.40mm

SN: 505077-UP

1шт.

21

6210-11-1831

Grommet, Oil, Standard

SN: 505077-UP

1шт.

21

6210-19-1831

Grommet, Oil, Oversize 0.40mm

SN: 505077-UP

1шт.

22

6210-11-1840

Grommet, Oil, Standard

SN: 505077-UP

1шт.

22

6210-19-1840

Grommet, Oil, Oversize 0.40mm

SN: 505077-UP

1шт.

23

6210-11-1962

Grommet, Water, Standard

SN: 505077-UP

1шт.

23

6210-19-1962

Grommet, Water, Oversize 0.40mm

SN: 505077-UP

1шт.

24

Grommet, Water, Standard

SN: 505077-UP

4шт.

24

Grommet, Water, Oversize 0.40mm

SN: 505077-UP

4шт.

25

6210-11-1940

Grommet, Water, Standard

SN: 505077-UP

4шт.

25

6210-19-1940

Grommet, Water, Oversize 0.40mm

SN: 505077-UP

4шт.

26

6217-11-1610

Bolt

SN: 505077-UP

36шт.

27

6217-11-1620

Bolt

SN: 505077-UP

36шт.

28

01643-51645

Washer

SN: 505077-UP

72шт.

29

01438-01020

Bolt

SN: 505077-UP

12шт.

30

6210-41-5620

Crosshead

SN: 505077-UP

24шт.

31

6210-41-5641

Screw

SN: 505077-UP

24шт.

32

6162-43-5630

Nut, Lock

SN: 505077-UP

24шт.
