Запчасти Komatsu SA6D170-B-1E КОМПЛЕКТ ПРОКЛАДОК ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

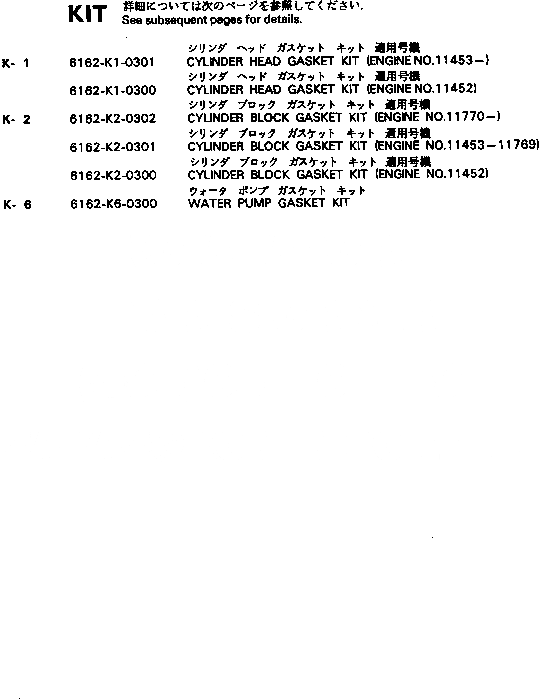

Схема запчастей Komatsu SA6D170-B-1E - КОМПЛЕКТ ПРОКЛАДОК ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

6162-K1-0301

GASKET KIT,CYLINDER HEAD

SN: 11453-UP

1шт.

1

6162-K1-0300

GASKET KIT,CYLINDER HEAD

SN: 11452-11452

1шт.

1

6162-12-1152

O-RING,SLEEVE

SN: 11452-UP

6шт.

1

07000-63028

O-RING,PUSH ROD

SN: 11452-UP

12шт.

1

6162-13-1810

GASKET,CYLINDER HEAD

SN: 11452-UP

6шт.

1

6162-13-7810

GASKET,ROCKER ARM HOUSING

SN: 11452-UP

6шт.

1

6162-13-7821

PACKING,ROCKER ARM HOUSING

SN: 11452-UP

6шт.

1

6162-13-8810

GASKET,ROCKER ARM HOUSING COVER

SN: 11452-UP

6шт.

1

6162-13-8180

PACKING,NOZZLE HOLDER

SN: 11452-UP

6шт.

1

6162-63-6240

O-RING,AFTER COOLER

SN: 11452-UP

4шт.

1

6162-13-4720

GASKET,AFTER COOLER CORE

SN: 11452-UP

2шт.

1

6128-61-6830

GASKET,AFTER COOLER

SN: 11452-UP

2шт.

1

07005-01412

GASKET,AFTER COOLER

SN: 11452-UP

2шт.

1

6162-13-4810

GASKET,INTAKE MANIFOLD

SN: 11452-UP

6шт.

1

6162-13-4740

GASKET,AIR CONNECTOR

SN: 11452-UP

1шт.

1

02895-67091

O-RING,AIR CONNECTOR

SN: 11452-UP

4шт.

1

6127-81-4821

GASKET,AIR CLEANER

SN: 11452-UP

2шт.

1

02895-67116

O-RING,AIR CONNECTOR

SN: 11452-UP

2шт.

1

6162-13-5810

GASKET,EXHAUST MANIFOLD

SN: 11452-UP

6шт.

1

6162-83-2810

GASKET,TURBOCHARGER MOUNTING

SN: 11452-UP

1шт.

1

07000-63095

O-RING,TURBOCHARGER

SN: 11452-UP

1шт.

1

6501-11-1650

WASHER,LOCK

SN: 11452-UP

4шт.

1

07000-05065

O-RING,WATER MANIFOLD

SN: 11452-UP

12шт.

1

07005-01612

GASKET,THERMOSTAT HOUSING

SN: 11452-UP

2шт.

1

6162-13-6570

GASKET,WATER PIPING

SN: 11452-UP

1шт.

1

07000-02070

O-RING,WATER PIPING

SN: 11452-UP

1шт.

1

6162-13-6440

SEAL,THERMOSTAT

SN: 11452-UP

2шт.

1

6162-13-6430

GASKET,THERMOSTAT HOUSING

SN: 11452-UP

1шт.

1

6162-13-6480

GASKET,THERMOSTAT HOUSING

SN: 11452-UP

1шт.

1

6128-11-6811

GASKET,WATER PIPING

SN: 11452-UP

1шт.

1

07000-03038

O-RING,WATER PIPING

SN: 11452-UP

4шт.

1

6128-61-6830

GASKET,WATER PIPING

SN: 11452-UP

2шт.

1

07000-03038

O-RING,WATER PIPING

SN: 11452-UP

3шт.

1

195-03-14380

GASKET,WATER PIPING

SN: 11452-UP

1шт.

1

02893-05043

O-RING,WATER PIPING

SN: 11452-UP

2шт.

1

6127-51-6821

GASKET,OIL PIPING

SN: 11452-UP

2шт.

1

6128-51-8151

GASKET,OIL PIPING

SN: 11452-UP

1шт.

1

6675-11-4960

GASKET,APS

SN: 11452-UP

2шт.

2

6162-K2-0302

GASKET KIT,CYLINDER BLOCK

SN: 11770-UP

1шт.

2

6162-K2-0301

GASKET KIT,CYLINDER BLOCK

SN: 11453-11769

1шт.

2

6162-K2-0300

GASKET KIT,CYLINDER BLOCK

SN: 11452-11452

1шт.

2

6128-11-6811

GASKET,WATER PIPING

SN: 11452-UP

1шт.

2

6128-11-6811

GASKET,WATER PIPING

SN: 11452-UP

1шт.

2

07000-03038

O-RING,WATER PIPING

SN: 11452-UP

4шт.

2

6162-63-2160

GASKET,WATER PIPING

SN: 11452-UP

1шт.

2

07000-02070

O-RING,WATER PIPING

SN: 11452-UP

1шт.

2

07000-02075

O-RING,WATER PIPING

SN: 11452-UP

1шт.

2

07005-01412

GASKET,CYLINDER BLOCK

SN: 11452-UP

2шт.

2

07005-01012

GASKET,CYLINDER BLOCK

SN: 11452-UP

1шт.

2

6162-23-2250

SEAL,CREVICE, CYLINDER LINER

SN: 11452-UP

6шт.

2

6162-23-2220

O-RING,CENTER, CYLINDER LINER

SN: 11452-UP

6шт.

2

6162-23-2240

O-RING,LOWER, CYLINDER LINER

SN: 11452-UP

6шт.

2

07000-62016

O-RING,PISTON COOLING NOZZLE

SN: 11452-UP

6шт.

2

6162-23-6520

GASKET,OIL FILLER

SN: 11452-UP

1шт.

2

6127-51-6821

GASKET,CYLINDER BLOCK

SN: 11452-UP

1шт.

2

07000-03045

O-RING,BREATHER

SN: 11452-UP

1шт.

2

07000-02012

O-RING,OIL GAUGE

SN: 11452-UP

1шт.

2

6162-23-3250

GASKET,GEAR CASE COVER

SN: 11452-UP

1шт.

2

6162-23-3290

GASKET,COVER

SN: 11452-UP

1шт.

2

07000-01009

O-RING,COVER

SN: 11452-UP

1шт.

2

6162-23-3510

SEAL, FRONT

SN: 11452-UP

1шт.

2

07000-65175

O-RING,TRUNNION

SN: 11452-UP

1шт.

2

6162-23-3810

GASKET,GEAR CASE

SN: 11452-UP

1шт.

2

07000-01009

O-RING,GEAR CASE

SN: 11452-UP

1шт.

2

07000-63028

O-RING,OIL DRAIN VALVE

SN: 11452-UP

1шт.

2

6127-21-4813

GASKET,FLYWHEEL HOUSING

SN: 11452-UP

1шт.

2

6162-23-4250

SEAL, REAR

SN: 11452-UP

1шт.

2

07016-00306

SEAL,DUST

SN: 11452-UP

1шт.

2

6162-23-4940

GASKET,FLYWHEEL HOUSING

SN: 11452-UP

1шт.

2

07000-62015

O-RING,OIL PUMP

SN: 11452-UP

1шт.

2

6111-61-6810

GASKET,OIL SUCTION PIPE

SN: 11452-UP

1шт.

2

07000-63042

O-RING,OIL PIPE

SN: 11452-UP

1шт.

2

6127-51-6821

GASKET,OIL PIPE

SN: 11452-UP

1шт.

2

07005-01612

GASKET,OIL FILTER

SN: 11452-11769

1шт.

2

6162-53-5450

PACKING,OIL FILTER

SN: 11452-UP

1шт.

2

6162-53-5430

PACKING,OIL FILTER

SN: 11452-UP

1шт.

2

6162-53-5530

PACKING,OIL ADAPTER

SN: 11452-UP

1шт.

2

07000-63050

O-RING,OIL ADAPTER

SN: 11452-UP

2шт.

2

07000-63028

O-RING,OIL ADAPTER

SN: 11452-UP

2шт.

2

07000-63050

O-RING,OIL FILTER

SN: 11452-UP

2шт.

2

6127-51-6821

GASKET,OIL PIPING

SN: 11452-UP

2шт.

2

MK-2M-36E-215

O-RING,MECHANICAL PUMP MOUNTING

SN: 11452-UP

1шт.

2

07005-00812

GASKET,MECHANICAL PUMP PIPING

SN: 11452-UP

8шт.

2

6162-63-2280

GASKET,OIL COOLER

SN: 11453-UP

2шт.

2

6162-63-2190

GASKET,OIL COOLER

SN: 11452-11452

2шт.

2

6162-63-2290

O-RING,OIL COOLER

SN: 11453-UP

2шт.

2

6162-63-2131

GASKET,OIL COOLER

SN: 11452-UP

1шт.

2

6162-63-2180

GASKET,OIL COOLER

SN: 11452-UP

1шт.

2

07000-63030

O-RING,BYPASS VALVE

SN: 11452-UP

1шт.

2

6162-63-5740

GASKET,BYPASS VALVE

SN: 11452-UP

1шт.

2

6162-63-6730

GASKET,BYPASS VALVE

SN: 11452-UP

1шт.

2

07000-03115

O-RING,INJECTION PUMP DRIVE HOUSING

SN: 11452-UP

1шт.

2

07000-02012

O-RING,INJECTION PUMP DRIVE HOUSING

SN: 11452-UP

1шт.

2

6127-71-3250

SEAL,OIL

SN: 11452-UP

1шт.

2

6162-73-1960

WASHER,FELT

SN: 11452-UP

1шт.

2

6162-73-1930

GASKET,INJECTION PUMP DRIVE HOUSING

SN: 11452-UP

1шт.

2

07005-01412

GASKET,OIL PIPING

SN: 11452-UP

2шт.

2

07005-01412

GASKET,OIL PIPING

SN: 11452-UP

4шт.

2

07005-00812

GASKET,FUEL FILTER

SN: 11452-UP

2шт.

2

07005-01412

GASKET,FUEL PIPING

SN: 11452-UP

8шт.

2

08034-00414

BAND,FUEL PIPING

SN: 11452-UP

1шт.

2

07002-04234

O-RING,FUEL FILTER

SN: 11452-UP

1шт.

2

07005-01412

GASKET,FUEL PIPING

SN: 11452-UP

2шт.

2

6128-81-4620

GASKET,APS

SN: 11452-UP

2шт.

2

600-815-2190

GASKET,GLOW PLUG

SN: 11452-UP

2шт.

2

6675-11-4960

GASKET,APS

SN: 11452-UP

2шт.

2

6162-63-1810

GASKET,WATER PUMP MOUNTING

SN: 11452-UP

1шт.

2

04081-05012

LOCK,FAN PULLEY

SN: 11452-UP

1шт.

2

6162-63-3270

GASKET,FAN PULLEY

SN: 11452-UP

1шт.

2

07012-00050

SEAL,OIL

SN: 11452-UP

1шт.

2

6127-61-3790

LOCK,TENSION PULLEY

SN: 11452-UP

1шт.

2

07000-02075

O-RING,TENSION PULLEY

SN: 11452-UP

1шт.

2

6162-63-8130

GASKET,CORROSION RESISTOR

SN: 11452-UP

1шт.

2

07012-20048

SEAL,OIL

SN: 11452-UP

1шт.

2

07000-62095

O-RING,ALTERNATOR DRIVE

SN: 11452-UP

1шт.

2

07000-01009

O-RING,ALTERNATOR DRIVE

SN: 11452-UP

1шт.

2

6610-81-2210

GASKET,STARTING MOTOR

SN: 11452-UP

2шт.

6

6162-K6-0300

GASKET KIT,WATER PUMP

SN: 11452-UP

1шт.

6

02893-05043

O-RING,WATER PIPING

SN: 11452-UP

2шт.

6

6162-63-2160

GASKET,WATER PIPING

SN: 11452-UP

1шт.

6

07000-02070

O-RING,WATER PIPING

SN: 11452-UP

1шт.

6

07000-02075

O-RING,WATER PIPING

SN: 11452-UP

1шт.

6

6162-63-1570

SEAL,WATER PUMP

SN: 11452-UP

1шт.

6

6162-63-1511

SEAL, WATER

SN: 11452-UP

1шт.

6

07000-05145

O-RING,WATER PUMP HOUSING

SN: 11452-UP

1шт.

6

07000-62012

O-RING,WATER PUMP HOUSING

SN: 11452-UP

1шт.

6

6162-63-1810

GASKET,WATER PUMP MOUNTING

SN: 11452-UP

1шт.

6

6693-62-9241

GASKET,RADIATOR PIPING

SN: 11452-UP

1шт.

6

07012-20048

SEAL,OIL

SN: 11452-UP

1шт.

6

07000-62095

O-RING,ALTERNATOR DRIVE

SN: 11452-UP

1шт.

6

07000-01009

O-RING,ALTERNATOR DRIVE

SN: 11452-UP

1шт.

Выбрано товаров: 131
