Запчасти Komatsu SA6D132-1W КОМПЛЕКТ ПРОКЛАДОК ИНСТРУМЕНТ И КОМПЛЕКТ ПРОКЛАДОК

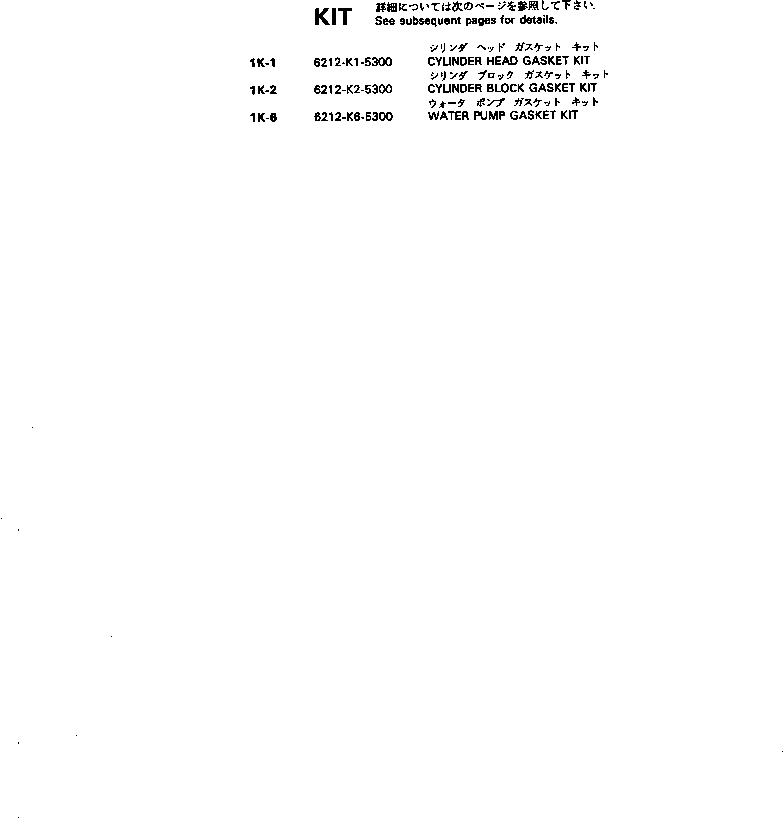

Схема запчастей Komatsu SA6D132-1W - КОМПЛЕКТ ПРОКЛАДОК ИНСТРУМЕНТ И КОМПЛЕКТ ПРОКЛАДОК

Артикул

Название

Примечание

Количество

1

6212-K1-5300

GASKET KIT,CYLINDER HEAD

SN: 14068-UP

1шт.

|1

07000-63025

O-RING,CYLINDER HEAD PIPE

SN: 14068-UP

6шт.

|1

6210-17-1812

GASKET,CYLINDER HEAD

SN: 14068-UP

6шт.

|1

6210-11-7130

O-RING,ROCKER ARM HOUSING

SN: 14068-UP

6шт.

|1

6210-11-7810

GASKET,ROCKER ARM HOUSING

SN: 14068-UP

6шт.

|1

6210-11-8810

GASKET,ROCKER ARM HOUSING COVER

SN: 14068-UP

6шт.

|1

6210-11-8140

RUBBER,ROCKER ARM HOUSING COVER

SN: 14068-UP

18шт.

|1

07005-02416

GASKET,AIR INTAKE MANIFOLD PLUG

SN: 14068-UP

1шт.

|1

6212-61-6660

GASKET,AIR INTAKE MANIFOLD COVER

SN: 14068-UP

1шт.

|1

6212-11-4710

GASKET,AIR INTAKE MANIFOLD COVER

SN: 14068-UP

1шт.

|1

6210-11-4810

GASKET,AIR INTAKE MANIFOLD

SN: 14068-UP

12шт.

|1

6212-15-4570

GASKET,AIR INTAKE MANIFOLD

SN: 14068-UP

1шт.

|1

02895-67091

O-RING,AIR INTAKE MANIFOLD

SN: 14068-UP

2шт.

|1

6211-11-4820

GASKET,RIBBON HEATER

SN: 14068-UP

2шт.

|1

6212-15-4580

GASKET,AFTER COOLER COVER

SN: 14068-UP

2шт.

|1

6212-65-8670

GASKET,AFTER COOLER COVER

SN: 14068-UP

1шт.

|1

02895-77081

O-RING,AFTER COOLER AIR CONNECTION

SN: 14068-UP

2шт.

|1

6161-11-4720

O-RING,AFTER COOLER AIR CONNECTION

SN: 14068-UP

2шт.

|1

6212-15-4560

GASKET,AFTER COOLER AIR CONNECTION

SN: 14068-UP

1шт.

|1

6210-11-5880

GASKET,EXHAUST MANIFOLD

SN: 14068-UP

6шт.

|1

6212-15-5230

GASKET,EXHAUST MANIFOLD WATER TUBE

SN: 14068-UP

1шт.

|1

07000-03028

O-RING,EXHAUST MANIFOLD WATER TUBE

SN: 14068-UP

1шт.

|1

6210-11-5710

GASKET,TURBOCHARGER MOUNTING

SN: 14068-UP

1шт.

|1

6212-15-5630

GASKET,EXHAUST CONNECTOR

SN: 14068-UP

1шт.

|1

6164-62-8240

GASKET,TURBOCHARGER PLATE

SN: 14068-UP

4шт.

|1

6132-11-4820

GASKET,EXHAUST MANIFOLD WATER PIPE

SN: 14068-UP

1шт.

|1

07000-02055

O-RING,HEAT-EXCHANGER WATER PIPING

SN: 14068-UP

2шт.

|1

6127-11-6130

GASKET,HEAT-EXCHANGER WATER PIPING

SN: 14068-UP

1шт.

|1

07000-03025

O-RING,HEAT-EXCHANGER WATER PIPING

SN: 14068-UP

1шт.

|1

6130-61-6810

GASKET,HEAT-EXCHANGER WATER PIPING

SN: 14068-UP

1шт.

|1

6127-11-6130

GASKET,HEAT-EXCHANGER WATER PIPING

SN: 14068-UP

2шт.

|1

07005-01012

GASKET,WATER PIPING

SN: 14068-UP

18шт.

|1

07005-01412

GASKET,WATER PIPING

SN: 14068-UP

2шт.

|1

07005-01212

GASKET,WATER PIPING

SN: 14068-UP

4шт.

|1

07005-01012

GASKET,WATER PIPING

SN: 14068-UP

2шт.

|1

6212-65-8670

GASKET,HEAT-EXCHANGER WATER PIPING

SN: 14068-UP

2шт.

|1

6212-65-8670

GASKET,AFTER COOLER WATER PIPING

SN: 14068-UP

2шт.

|1

6150-65-8480

GASKET,HEAT-EXCHANGER WATER PIPING

SN: 14068-UP

1шт.

|1

6151-51-8710

GASKET,TURBOCHARGER OIL INLET TUBE

SN: 14068-UP

1шт.

|1

07005-01212

GASKET,TURBOCHARGER OIL INLET TUBE

SN: 14068-UP

2шт.

|1

6151-51-8150

GASKET,AFTER COOLER PIPING

SN: 14068-UP

2шт.

|1

07005-00812

GASKET,FUEL INJECTION PUMP PIPING

SN: 14068-UP

3шт.

|1

6210-71-1160

GASKET,FUEL NOZZLE

SN: 14068-UP

6шт.

|1

07000-22021

O-RING,FUEL NOZZLE

SN: 14068-UP

12шт.

|1

6210-11-7710

O-RING,FUEL NOZZLE

SN: 14068-UP

6шт.

|1

07005-00812

GASKET,FUEL SPILL PIPE

SN: 14068-UP

13шт.

|1

6141-14-5462

GASKET,HEAT-EXCHANGER PLATE

SN: 14068-UP

2шт.

|1

08037-02512

GROMMET,RESERVE TANK

SN: 14068-UP

1шт.

|1

6150-65-7580

GASKET,HEAT-EXCHANGER FILLER

SN: 14068-UP

1шт.

|1

07002-33634

O-RING,WATER LEVEL SENSOR

SN: 14068-UP

1шт.

|1

6162-13-5890

GASKET,MUFFLER BELLOWS

SN: 14068-UP

2шт.

|1

7700-75-1330

GASKET,BREATHER PIPE

SN: 14068-UP

1шт.

2

6212-K2-5300

GASKET KIT,CYLINDER BLOCK

SN: 14068-UP

1шт.

|2

6210-61-6440

GASKET,THERMOSTAT HOUSING

SN: 14068-UP

1шт.

|2

6212-65-8510

GASKET,SEA WATER PUMP PIPING

SN: 14068-UP

1шт.

|2

6212-65-8520

GASKET,SEA WATER PUMP PIPING

SN: 14068-UP

1шт.

|2

07005-01012

GASKET,CYLINDER BLOCK PLUG

SN: 14068-UP

1шт.

|2

07005-01412

GASKET,CYLINDER BLOCK PLUG

SN: 14068-UP

2шт.

|2

6210-21-2250

SEAL,CYLINDER LINER

SN: 14068-UP

6шт.

|2

6210-21-2240

O-RING,CYLINDER LINER

SN: 14068-UP

6шт.

|2

6210-21-2230

O-RING,CYLINDER LINER

SN: 14068-UP

6шт.

|2

6210-61-6550

GASKET,CYLINDER BLOCK PLATE

SN: 14068-UP

1шт.

|2

6210-21-1970

GASKET,CYLINDER BLOCK COVER

SN: 14068-UP

1шт.

|2

07000-03025

O-RING,CYLINDER BLOCK COVER

SN: 14068-UP

2шт.

|2

6696-61-9920

GASKET,CYLINDER BLOCK COVER

SN: 14068-UP

1шт.

|2

6150-21-6460

O-RING,CYLINDER BLOCK COVER

SN: 14068-UP

2шт.

|2

6150-21-6390

PACKING,CYLINDER BLOCK COVER

SN: 14068-UP

6шт.

|2

6210-21-3250

GASKET,FRONT COVER

SN: 14068-UP

1шт.

|2

07000-03050

O-RING,GEAR BOX

SN: 14068-UP

1шт.

|2

07000-02060

O-RING,POWER TAKE OFF COVER

SN: 14068-UP

1шт.

|2

6150-21-3230

SEAL¤ FRONT

SN: 14068-UP

1шт.

|2

6210-21-5820

GASKET,OIL PAN

SN: 14068-UP

1шт.

|2

6212-25-5810

GASKET,OIL PAN COVER

SN: 14068-UP

3шт.

|2

6150-21-4230

SEAL¤ REAR

SN: 14068-UP

1шт.

|2

07000-63028

O-RING,OIL PUMP

SN: 14068-UP

1шт.

|2

07000-63040

O-RING,OIL SUCTION PIPE

SN: 14068-UP

1шт.

|2

6210-21-6462

O-RING,OIL FILTER ADAPTER

SN: 14068-UP

1шт.

|2

07000-63028

O-RING,OIL FILTER ADAPTER

SN: 14068-UP

2шт.

|2

07000-63032

O-RING,OIL FILTER ADAPTER

SN: 14068-UP

1шт.

|2

07000-63032

O-RING,OIL FILTER

SN: 14068-UP

1шт.

|2

07000-63032

O-RING,OIL FILTER

SN: 14068-UP

1шт.

|2

6210-61-2520

O-RING,OIL COOLER

SN: 14068-UP

2шт.

|2

6210-61-2170

GASKET,OIL COOLER

SN: 14068-UP

2шт.

|2

6150-61-2540

SEAL,OIL COOLER

SN: 14068-UP

1шт.

|2

07000-63042

O-RING,OIL COOLER

SN: 14068-UP

1шт.

|2

6210-61-2550

O-RING,OIL COOLER PLUG

SN: 14068-UP

1шт.

|2

6210-61-2810

GASKET,OIL COOLER MOUNT

SN: 14068-UP

1шт.

|2

07003-01419

GASKET,OIL DRAIN JOINT

SN: 14068-UP

3шт.

|2

6210-71-3181

SEAL¤ OIL,INJECTION SHAFT

SN: 14068-UP

1шт.

|2

07005-01412

GASKET,FUEL INJECTION PUMP PIPING

SN: 14068-UP

2шт.

|2

07005-01412

GASKET,FUEL FILTER PIPING

SN: 14068-UP

4шт.

|2

6710-11-6451

SEAL,THERMOSTAT

SN: 14068-UP

2шт.

|2

6210-61-6420

GASKET,THERMOSTAT HOUSING

SN: 14068-UP

1шт.

|2

6210-81-5240

O-RING,SEA WATER PUMP MOUNTING

SN: 14068-UP

1шт.

|2

6610-81-2210

GASKET,STARTING MOTOR

SN: 14068-UP

1шт.

|2

7700-16-1170

GASKET,MARINE GEAR SEA WATER PIPING

SN: 14068-UP

2шт.

6

6212-K6-5300

GASKET KIT,WATER PUMP

SN: 14068-UP

1шт.

|6

6210-61-6340

GASKET,OIL COOLER ELBOW

SN: 14068-UP

1шт.

|6

07000-05065

O-RING,WATER CONNECTOR

SN: 14068-UP

1шт.

|6

6210-61-6330

GASKET,WATER PUMP

SN: 14068-UP

1шт.

|6

07000-03032

O-RING,WATER TUBE

SN: 14068-UP

1шт.

|6

6210-61-6230

GASKET,WATER PUMP CONNECTOR

SN: 14068-UP

1шт.

|6

6150-61-1520

SEAL¤ WATER,WATER PUMP

SN: 14068-UP

1шт.

|6

6210-61-1510

SEAL,WATER PUMP

SN: 14068-UP

1шт.

|6

6210-61-1520

SEAL,WATER PUMP

SN: 14068-UP

1шт.

|6

6211-61-1160

GASKET,WATER PUMP COVER

SN: 14068-UP

1шт.

|6

07000-02070

O-RING,WATER PUMP

SN: 14068-UP

1шт.

|6

07000-02115

O-RING,WATER PUMP

SN: 14068-UP

1шт.

|6

02893-05037

O-RING,WATER PUMP

SN: 14068-UP

2шт.

Выбрано товаров: 109
