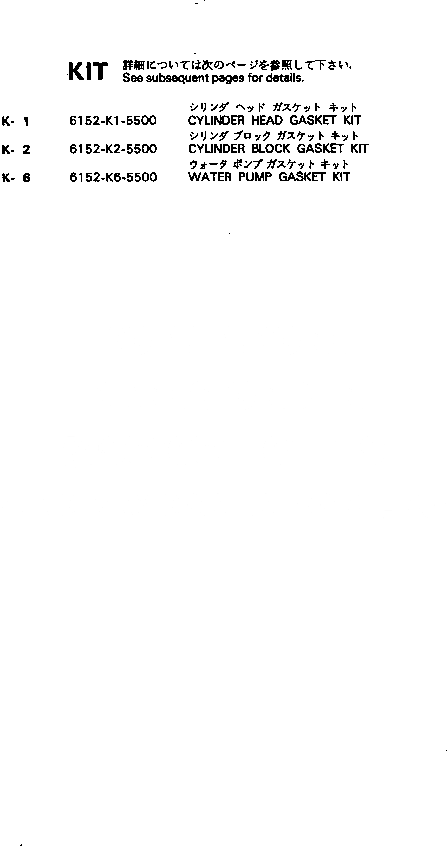

Запчасти Komatsu SA6D125-1T КОМПЛЕКТ ПРОКЛАДОК ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

6152-K1-5500

GASKET KIT,CYLINDER HEAD

SN: 31492-UP

1шт.

1

6140-41-4540

SEAL,EXHAUST VALVE

SN: 31492-UP

12шт.

1

6150-17-1812

GASKET,CYLINDER HEAD

SN: 31492-UP

6шт.

1

6150-11-7810

GASKET,ROCKER ARM HOUSING

SN: 31492-UP

6шт.

1

6150-11-8810

GASKET,ROCKER ARM HOUSING COVER

SN: 31492-UP

6шт.

1

6150-11-8820

RUBBER,ROCKER ARM HOUSING COVER

SN: 31492-UP

24шт.

1

6162-63-6240

O-RING,AFTER COOLER

SN: 31492-UP

4шт.

1

6152-11-4710

GASKET,AFTER COOLER

SN: 31492-UP

2шт.

1

6152-11-4720

GASKET,AIR CONNECTOR

SN: 31492-UP

1шт.

1

6150-11-4810

GASKET,AIR INTAKE MANIFOLD

SN: 31492-UP

12шт.

1

6127-81-4821

GASKET,AIR CLEANER

SN: 31492-UP

1шт.

1

6150-11-5810

GASKET,EXHAUST MANIFOLD

SN: 31492-UP

6шт.

1

6152-11-5250

RING,SEAL

SN: 31492-UP

2шт.

1

6151-11-5710

GASKET,TURBOCHARGER

SN: 31492-UP

1шт.

1

6150-11-5750

GASKET,EXHAUST CONNECTOR

SN: 31492-UP

2шт.

1

6151-11-5270

RING,EXHAUST CONNECTOR

SN: 31492-UP

1шт.

1

6150-11-5750

GASKET,EXHAUST CONNECTOR

SN: 31492-UP

1шт.

1

07005-01612

GASKET,THERMOSTAT HOUSING

SN: 31492-UP

1шт.

1

02893-05043

O-RING,WATER MANIFOLD

SN: 31492-UP

6шт.

1

6150-11-6310

GASKET,WATER MANIFOLD

SN: 31492-UP

6шт.

1

6138-11-6810

GASKET,THERMOSTAT

SN: 31492-UP

2шт.

1

6152-61-6720

GASKET,WATER PIPING

SN: 31492-UP

1шт.

1

07000-02021

O-RING,WATER PIPING

SN: 31492-UP

1шт.

1

6152-61-6720

GASKET,WATER PIPING

SN: 31492-UP

1шт.

1

07000-02021

O-RING,WATER PIPING

SN: 31492-UP

1шт.

1

07000-03030

O-RING,WATER PIPING

SN: 31492-UP

1шт.

1

6151-51-8160

GASKET,OIL PIPING

SN: 31492-UP

1шт.

1

07005-01412

GASKET,OIL PIPING

SN: 31492-UP

2шт.

1

6151-51-8150

GASKET,OIL PIPING

SN: 31492-UP

1шт.

1

07005-00812

GASKET,NOZZLE HOLDER

SN: 31492-UP

12шт.

1

07000-65065

O-RING,NOZZLE HOLDER

SN: 31492-UP

6шт.

1

07005-01012

GASKET,NOZZLE HOLDER

SN: 31492-UP

12шт.

1

6150-61-6830

GASKET,WATER CONNECTOR

SN: 31492-UP

1шт.

1

08034-00414

BAND

SN: 31492-UP

1шт.

2

6152-K2-5500

GASKET KIT,CYLINDER BLOCK

SN: 31492-UP

1шт.

2

07002-22434

O-RING,CYLINDER BLOCK

SN: 31492-UP

1шт.

2

07002-23034

O-RING,CYLINDER BLOCK

SN: 31492-UP

1шт.

2

6150-21-1190

O-RING,CYLINDER BLOCK

SN: 31492-UP

2шт.

2

6150-21-2230

O-RING,LOWER, CYLINDER LINER

SN: 31492-UP

6шт.

2

6150-21-2240

O-RING,UPPER, CYLINDER LINER

SN: 31492-UP

6шт.

2

6150-21-2250

SEAL,CREVICE, CYLINDER LINER

SN: 31492-UP

6шт.

2

07005-01412

GASKET,CYLINDER BLOCK

SN: 31492-UP

1шт.

2

07005-01012

GASKET,CYLINDER BLOCK

SN: 31492-UP

1шт.

2

6114-21-5190

O-RING,BREATHER

SN: 31492-UP

1шт.

2

6150-21-6460

O-RING,CYLINDER BLOCK COVER

SN: 31492-UP

3шт.

2

6136-11-8142

PACKING,CYLINDER BLOCK COVER

SN: 31492-UP

9шт.

2

6150-21-3230

SEAL, FRONT

SN: 31492-UP

1шт.

2

6150-71-1910

SEAL,TACHOMETER DRIVE

SN: 31492-UP

1шт.

2

6162-73-1960

WASHER,FELT

SN: 31492-UP

1шт.

2

07000-03030

O-RING,TACHOMETER DRIVE

SN: 31492-UP

1шт.

2

07000-02020

O-RING,TACHOMETER DRIVE

SN: 31492-UP

1шт.

2

6130-82-5270

GASKET,CAP

SN: 31492-UP

1шт.

2

07005-02416

GASKET,OIL DRAIN VALVE

SN: 31492-UP

1шт.

2

07000-63028

O-RING,OIL DRAIN VALVE

SN: 31492-UP

1шт.

2

07005-01612

GASKET,OIL PAN

SN: 31492-UP

3шт.

2

6150-21-5811

GASKET,OIL PAN

SN: 31492-UP

1шт.

2

6150-21-4230

SEAL, REAR

SN: 31492-UP

1шт.

2

6150-51-1710

RING,OIL PUMP

SN: 31492-UP

1шт.

2

6150-51-1720

RING,OIL PUMP

SN: 31492-UP

1шт.

2

07000-63045

O-RING,OIL STRAINER

SN: 31492-UP

1шт.

2

6162-53-5430

PACKING,OIL FILTER

SN: 31492-UP

1шт.

2

07000-63028

O-RING,OIL ADAPTER

SN: 31492-UP

1шт.

2

07000-63035

O-RING,OIL ADAPTER

SN: 31492-UP

1шт.

2

07000-62020

O-RING,OIL ADAPTER

SN: 31492-UP

1шт.

2

07000-62015

O-RING,OIL ADAPTER

SN: 31492-UP

1шт.

2

07000-63028

O-RING,OIL ADAPTER

SN: 31492-UP

1шт.

2

6124-61-2181

GROMMET,OIL FILTER

SN: 31492-UP

3шт.

2

6150-61-2510

O-RING,OIL COOLER

SN: 31492-UP

2шт.

2

6150-61-2560

GASKET,OIL COOLER

SN: 31492-UP

2шт.

2

6150-61-2550

O-RING,OIL COOLER

SN: 31492-UP

1шт.

2

6150-61-2540

SEAL,THERMOSTAT

SN: 31492-UP

1шт.

2

07000-63042

O-RING,OIL COOLER

SN: 31492-UP

1шт.

2

6150-61-2812

GASKET,OIL COOLER

SN: 31492-UP

1шт.

2

6151-71-3150

SEAL,OIL

SN: 31492-UP

1шт.

2

07000-02125

O-RING,INJECTION PUMP

SN: 31492-UP

1шт.

2

07005-01012

GASKET,INJECTION PUMP PIPING

SN: 31492-UP

2шт.

2

07005-01412

GASKET,INJECTION PUMP PIPING

SN: 31492-UP

2шт.

2

07005-01412

GASKET,INJECTION PUMP PIPING

SN: 31492-UP

2шт.

2

07005-01412

GASKET,INJECTION PUMP PIPING

SN: 31492-UP

2шт.

2

08034-00414

BAND,FUEL PIPING

SN: 31492-UP

1шт.

2

07005-00812

GASKET,FUEL FILTER

SN: 31492-UP

2шт.

2

07005-01412

GASKET,FUEL PIPING

SN: 31492-UP

8шт.

2

08034-00414

BAND,FUEL PIPING

SN: 31492-UP

2шт.

2

6610-81-2210

GASKET,STARTING MOTOR

SN: 31492-UP

1шт.

6

6152-K6-5500

GASKET KIT,WATER PUMP

SN: 31492-UP

1шт.

6

6150-61-1510

SEAL,OIL

SN: 31492-UP

1шт.

6

6150-61-1520

SEAL, WATER

SN: 31492-UP

1шт.

6

6151-61-1161

GASKET,WATER PUMP COVER

SN: 31492-UP

1шт.

6

07000-02115

O-RING,WATER PUMP MOUNTING

SN: 31492-UP

1шт.

6

6150-61-1820

GASKET,WATER CONNECTOR

SN: 31492-UP

2шт.

6

07005-01412

GASKET,WATER CONNECTOR

SN: 31492-UP

1шт.

6

6150-61-6910

GASKET,WATER CONNECTOR

SN: 31492-UP

1шт.
