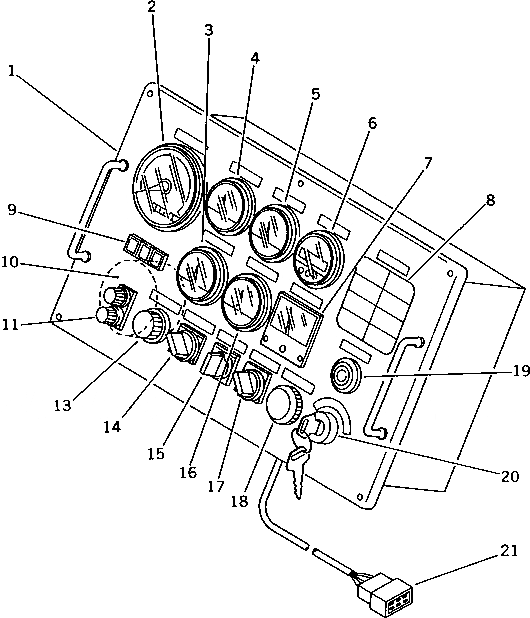

Запчасти Komatsu SA6D125-1AA ПАНЕЛЬ ПРИБОРОВ(/)(SAD-AA №9-) АКСЕССУАРЫ

1

7700-86-1800

MONITOR PANEL ASS'Y

SN: 44696-UP

1шт.

2

7700-82-2212

GAUGE,ENGINE REVOLUTION

SN: 44696-UP

1шт.

3

7700-82-2240

GAUGE,ENGINE OIL PRESSURE

SN: 44696-UP

1шт.

4

7700-82-2230

GAUGE,ENGINE WATER TEMPERATURE

SN: 44696-UP

1шт.

5

7700-83-1220

VOLTMETER

SN: 44696-UP

1шт.

6

7700-83-1211

CLOCK,DIGITAL

SN: 44696-UP

1шт.

7

7700-83-1410

GAUGE,EXHAUST TEMPERATURE

SN: 44696-UP

1шт.

8

7700-82-2160

MONITOR ASS'Y,ALARM

SN: 44696-UP

1шт.

9

7700-83-1420

LAMP,LEVER SHIFT POSITION

SN: 44696-UP

1шт.

10

7700-83-1510

BUZZER

SN: 44696-UP

1шт.

11

7700-83-1480

HOLDER,FUSE

SN: 44696-UP

1шт.

12

08040-00500

FUSE¤ 5A,(NOT SHOWN)

SN: 44696-UP

2шт.

13

7700-83-1460

ADJUSTER,BRIGHTNESS

SN: 44696-UP

1шт.

14

7700-83-1450

SWITCH,LIGHTING

SN: 44696-UP

1шт.

15

7700-83-1440

SWITCH,BUZZER

SN: 44696-UP

1шт.

16

7700-82-2260

GAUGE,MARINE GEAR OIL PRESSURE

SN: 44696-UP

1шт.

17

7700-83-1430

SWITCH,A.V.C.S.

SN: 44696-UP

1шт.

18

7700-83-1470

SWITCH,ENGINE STOP

SN: 44696-UP

1шт.

19

600-815-6160

SIGNAL,HEATER

SN: 44696-UP

1шт.

20

7700-82-2150

SWITCH,STARTING

SN: 44696-UP

1шт.

21

7700-83-1590

HARNESS,WIRE

SN: 44696-UP

1шт.

22

7700-83-1710

CONNECTOR,(NOT SHOWN)

SN: 44696-UP

1шт.

23

7700-83-1720

CONNECTOR,(NOT SHOWN)

SN: 44696-UP

1шт.

24

7700-83-1730

CONNECTOR,(NOT SHOWN)

SN: 44696-UP

1шт.

25

7700-83-1740

CONNECTOR,(NOT SHOWN)

SN: 44696-UP

1шт.
