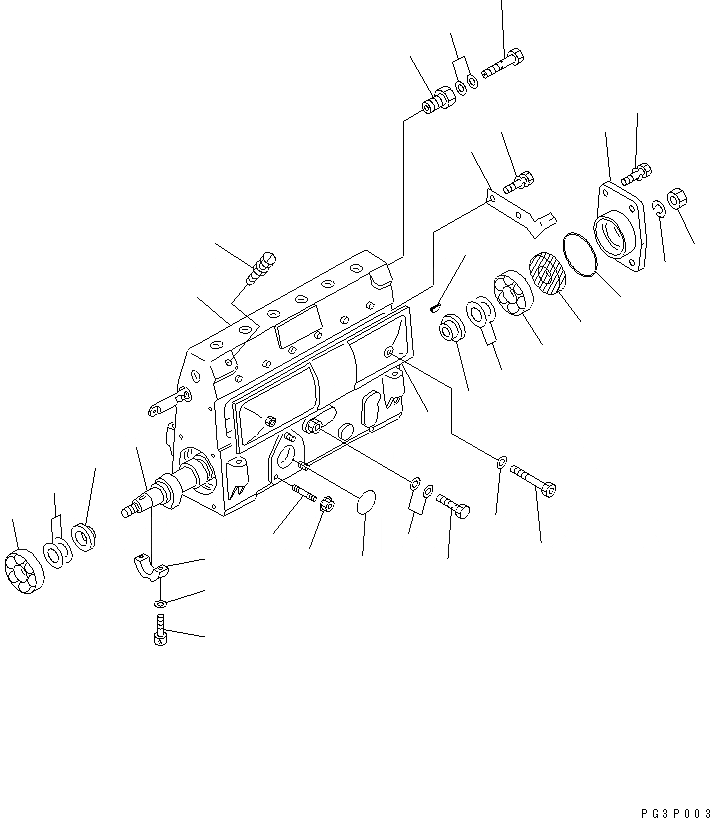

Запчасти Komatsu SA6D110-1F ТОПЛ. НАСОС (НАСОС) (/) ТОПЛИВН. СИСТЕМА

|1

6138-72-1600

INJECTION PUMP ASS'Y

SN: 50001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.0451 TO 0491.

-1шт.

|$$3

THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.

-1шт.

|1

DK101060-2700

PUMP ASS'Y

SN: 50001-UP

1шт.

|$$5

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.0451 AND 0452.

-1шт.

1

DK131075-6520

HOUSING

SN: 50001-UP

1шт.

2

DK029040-6220

STUD

SN: 50001-UP

3шт.

3

DK131400-0100

ADAPTER

SN: 50001-UP

1шт.

4

DK131420-3120

BOLT

SN: 50001-UP

1шт.

5

DK131028-6020

COVER

SN: 50001-UP

1шт.

6

DK131017-1000

SCREW

SN: 50001-UP

2шт.

7

DK029340-6020

GASKET

SN: 50001-UP

2шт.

8

DK139206-0400

NUT

SN: 50001-UP

3шт.

9

DK029633-1010

O-RING

SN: 50001-UP

1шт.

10

DK131375-0800

CAMSHAFT

SN: 50001-UP

1шт.

11

DK016640-2030

BEARING

SN: 50001-UP

-2шт.

|11

DK028202-0020

BEARING

SN: 50001-UP

-2шт.

12

DK016630-2030

BEARING

SN: 50001-UP

-2шт.

|12

DK028201-7020

BEARING

SN: 50001-UP

-2шт.

13

DK131302-0400

RING

SN: 50001-UP

1шт.

14

DK131302-1000

RING

SN: 50001-UP

1шт.

15

DK029311-7010

SHIM¤ 0.1MM

SN: 50001-UP

-2шт.

|15

DK029311-7020

SHIM¤ 0.12MM

SN: 50001-UP

-2шт.

|15

DK029311-7030

SHIM¤ 0.14MM

SN: 50001-UP

-2шт.

|15

DK029311-7040

SHIM¤ 0.16MM

SN: 50001-UP

-2шт.

|15

DK029311-7050

SHIM¤ 0.18MM

SN: 50001-UP

-2шт.

|15

DK029311-7090

SHIM¤ 0.3MM

SN: 50001-UP

-2шт.

|15

DK029311-7060

SHIM¤ 0.5MM

SN: 50001-UP

-2шт.

|15

DK029311-7210

SHIM¤ 0.7MM

SN: 50001-UP

-2шт.

|15

DK029311-7070

SHIM¤ 1.0MM

SN: 50001-UP

-2шт.

|15

DK029311-7220

SHIM¤ 1.4MM

SN: 50001-UP

-2шт.

|15

DK139417-0000

SHIM¤ 2.40MM

SN: 50001-UP

-2шт.

16

DK029312-0220

SHIM¤ 0.10MM

SN: 50001-UP

-2шт.

|16

DK029312-0230

SHIM¤ 0.12MM

SN: 50001-UP

-2шт.

|16

DK029312-0240

SHIM¤ 0.14MM

SN: 50001-UP

-2шт.

|16

DK029312-0250

SHIM¤ 0.16MM

SN: 50001-UP

-2шт.

|16

DK029312-0260

SHIM¤ 0.18MM

SN: 50001-UP

-2шт.

|16

DK029312-0290

SHIM¤ 0.3MM

SN: 50001-UP

-2шт.

|16

DK029312-0270

SHIM¤ 0.5MM

SN: 50001-UP

-2шт.

|16

DK029312-0300

SHIM¤ 1.00MM

SN: 50001-UP

-2шт.

17

DK131305-0600

BEARING,CENTER

SN: 50001-UP

1шт.

18

DK139105-0200

SCREW

SN: 50001-UP

2шт.

19

DK026505-0940

GASKET

SN: 50001-UP

2шт.

20

DK029622-0190

SEAL,OIL

SN: 50001-UP

1шт.

21

DK131316-2000

COVER

SN: 50001-UP

1шт.

22

DK020006-1440

BOLT

SN: 50001-UP

4шт.

23

DK029635-0050

O-RING

SN: 50001-UP

1шт.

24

DK013121-4140

NUT

SN: 50001-UP

1шт.

25

DK029321-4010

WASHER,SPRING

SN: 50001-UP

1шт.

26

DK025804-1610

KEY

SN: 50001-UP

1шт.

27

DK029731-4680

BOLT,EYE

SN: 50001-UP

1шт.

28

DK029341-4130

GASKET

SN: 50001-UP

2шт.

29

DK029731-0120

BOLT,EYE

SN: 50001-UP

1шт.

30

DK029341-0110

GASKET

SN: 50001-UP

2шт.

31

DK131496-0300

POINTER

SN: 50001-UP

1шт.

32

DK139006-0800

BOLT

SN: 50001-UP

2шт.
